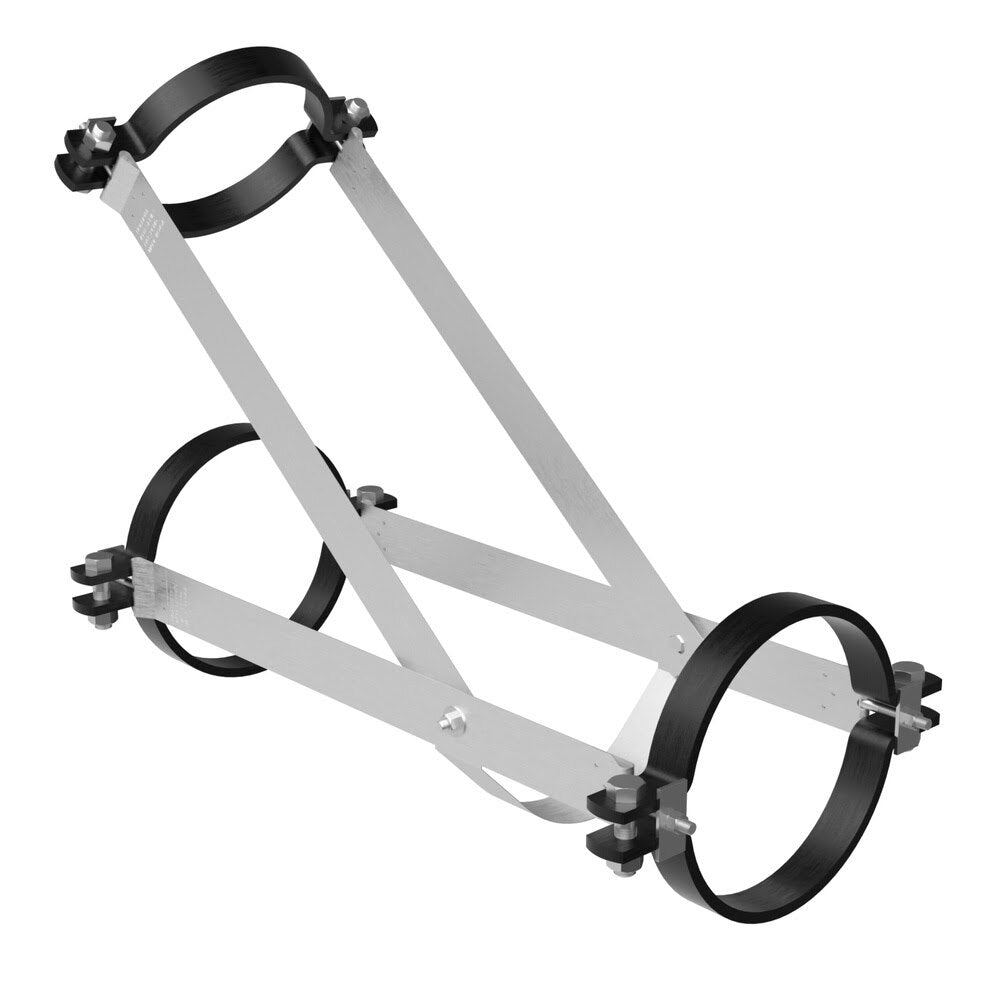

HoldRite 117-12x10WR Description

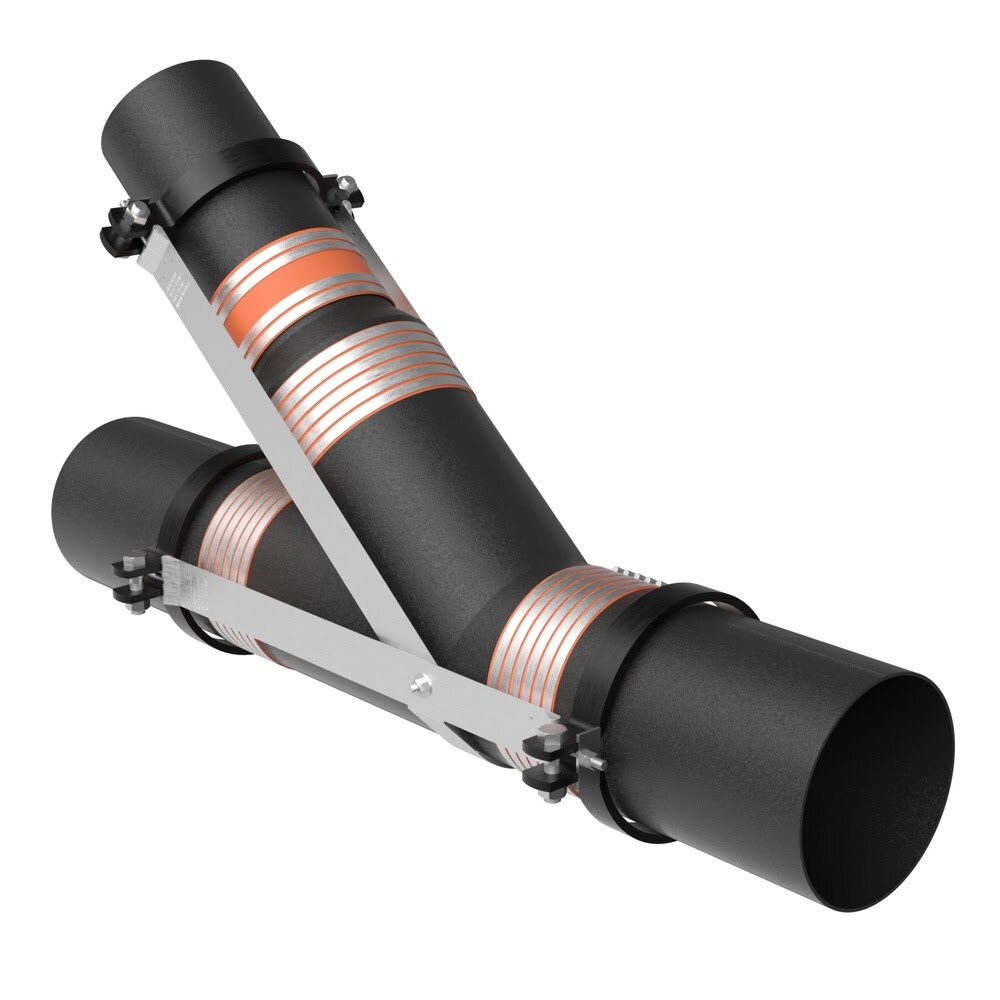

The HoldRite 117-WR Series 12 in. x 10 in. no-hub wye restraint is designed to reinforce reduced wye fittings in no-hub cast iron installations. It helps retain the fitting to adjoining piping in mid-span runs and is intended for installation in accordance with applicable CISPI guidelines.
HoldRite 117-12x10WR Includes
- (1) 12 in. x 10 in. No-Hub Wye Restraint
HoldRite 117-12x10WR Features
- Designed for 12 in. x 10 in. reduced wye no-hub cast iron installations
- Helps retain the wye fitting to adjoining piping
- Intended for use in mid-span runs
- Part of the HoldRite 117-WR Series no-hub fitting restraints
- Large-size design uses heavy-duty pipe clamps and straps
- Pipe clamps require 60 ft./lbs. of torque
- Supports installation in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-12x10WR Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Fitting Restraint |
| Fitting Style | Wye with Reducer |
| Nominal Size | 12 in. x 10 in. |
| Application | No-hub cast iron installations |
| Installation Location | Mid-span runs |
| Torque | 60 ft./lbs. on pipe clamps |
| Product Length (in) | 30.5 |
| Product Width (in) | 17.3 |
| Product Height (in) | 3.4 |
| Shipping Weight (lb) | 40.1 |
Toolup Part # :
882046
