HoldRite 117-12x10WR-G Description

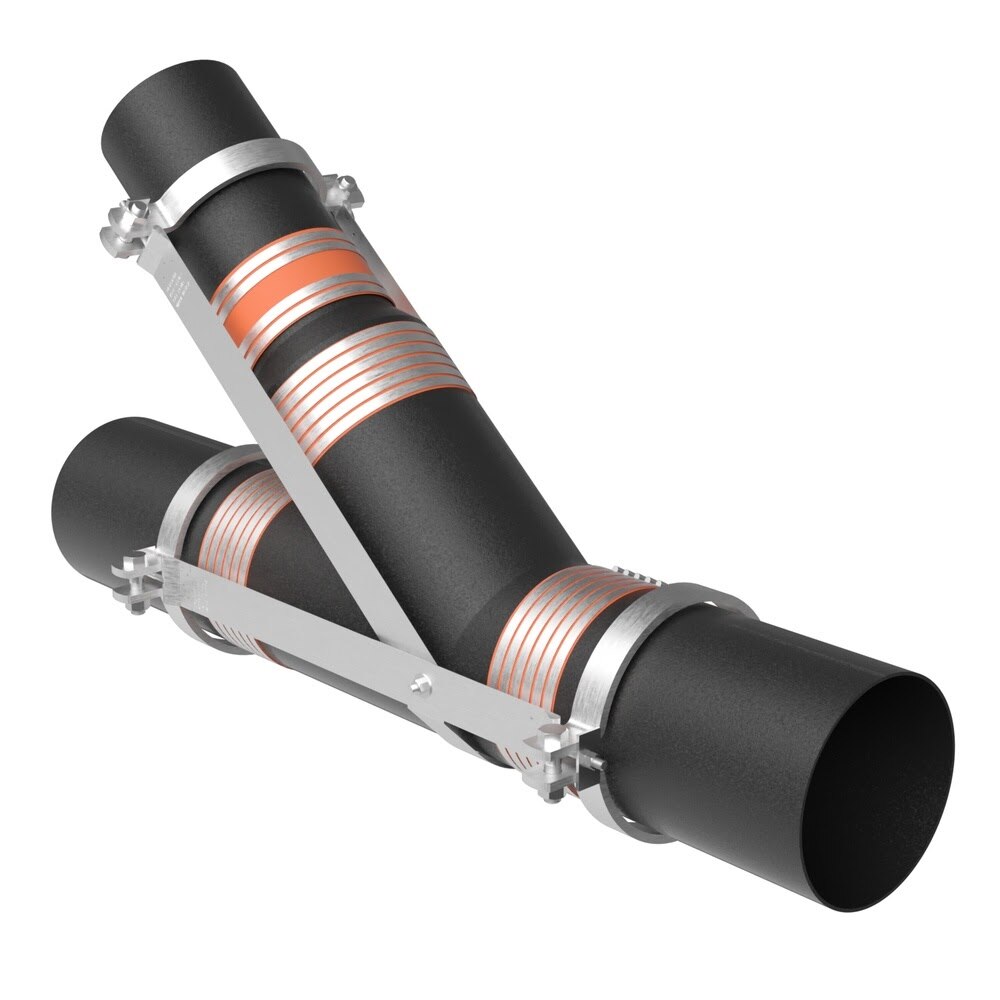

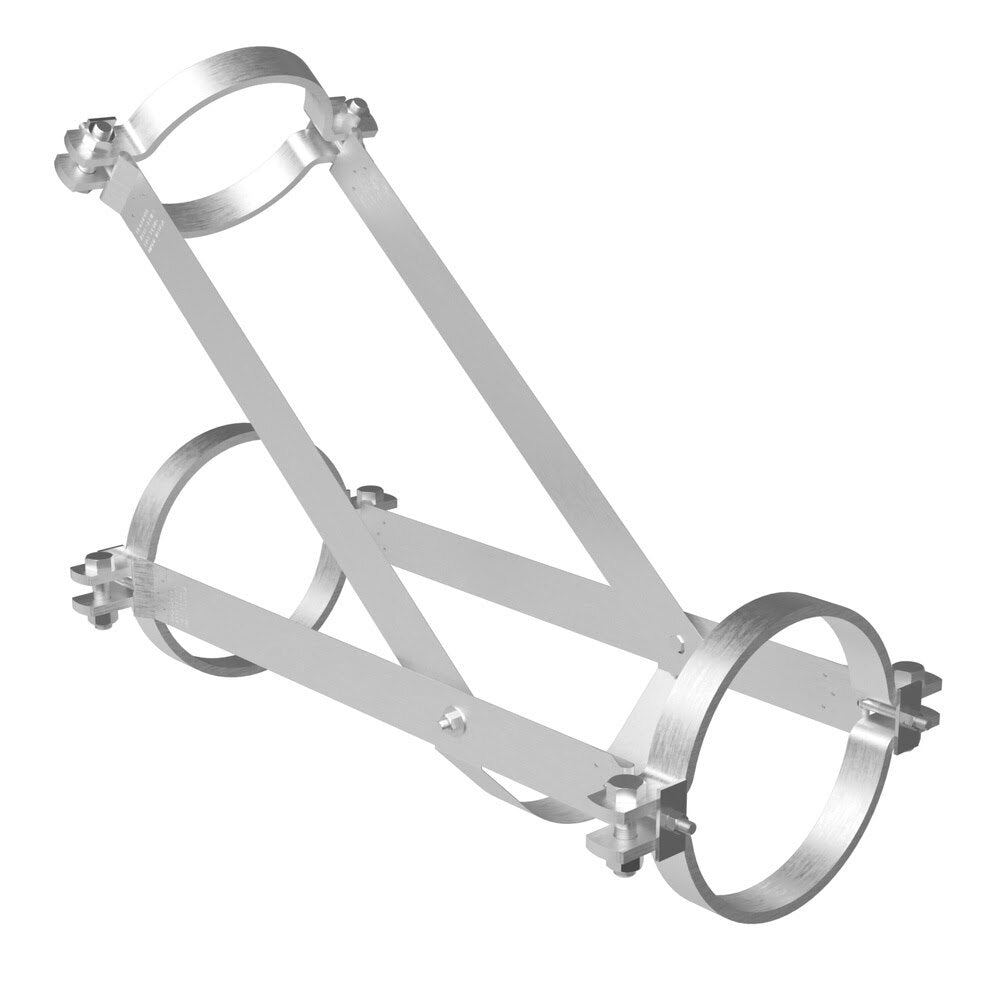

The HoldRite 117-12x10WR-G is a 12 in. x 10 in. galvanized no-hub wye restraint with reducer designed to reinforce no-hub cast iron DWV installations. Built for mid-span runs, it helps retain the wye fitting to adjoining piping and uses heavy-duty clamps and straps for large-size applications.
HoldRite 117-12x10WR-G Includes
- (1) 12 in. x 10 in. Galvanized No-Hub Wye Restraint with Reducer
HoldRite 117-12x10WR-G Features
- Designed to reinforce no-hub cast iron DWV installations
- For 12 in. x 10 in. wye fittings with reducer
- Helps retain the wye fitting to adjoining piping in mid-span runs
- Uses heavy-duty steel pipe clamps and straps for large-size applications
- Pipe clamp bolts require 60 ft/lbs torque
- Stainless steel body, band, and screw construction
- Galvanized steel strap for added durability
- Designed for installation per CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-12x10WR-G Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Application | DWV no-hub fitting restraint |
| Pipe Size | 12 in. x 10 in. |
| Finish | Galvanized |
| Body, Band and Screw Material | Stainless steel |
| Strap Material | 16 ga CRS galvanized steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Torque Requirement | 60 ft/lbs on pipe clamps |
| Product Length (in.) | 30.5 |
| Product Width (in.) | 17.5 |
| Product Height (in.) | 3 |
| Product Weight (lb) | 54.7 |
Toolup Part # :
882012
