HoldRite 117-12x4R Description

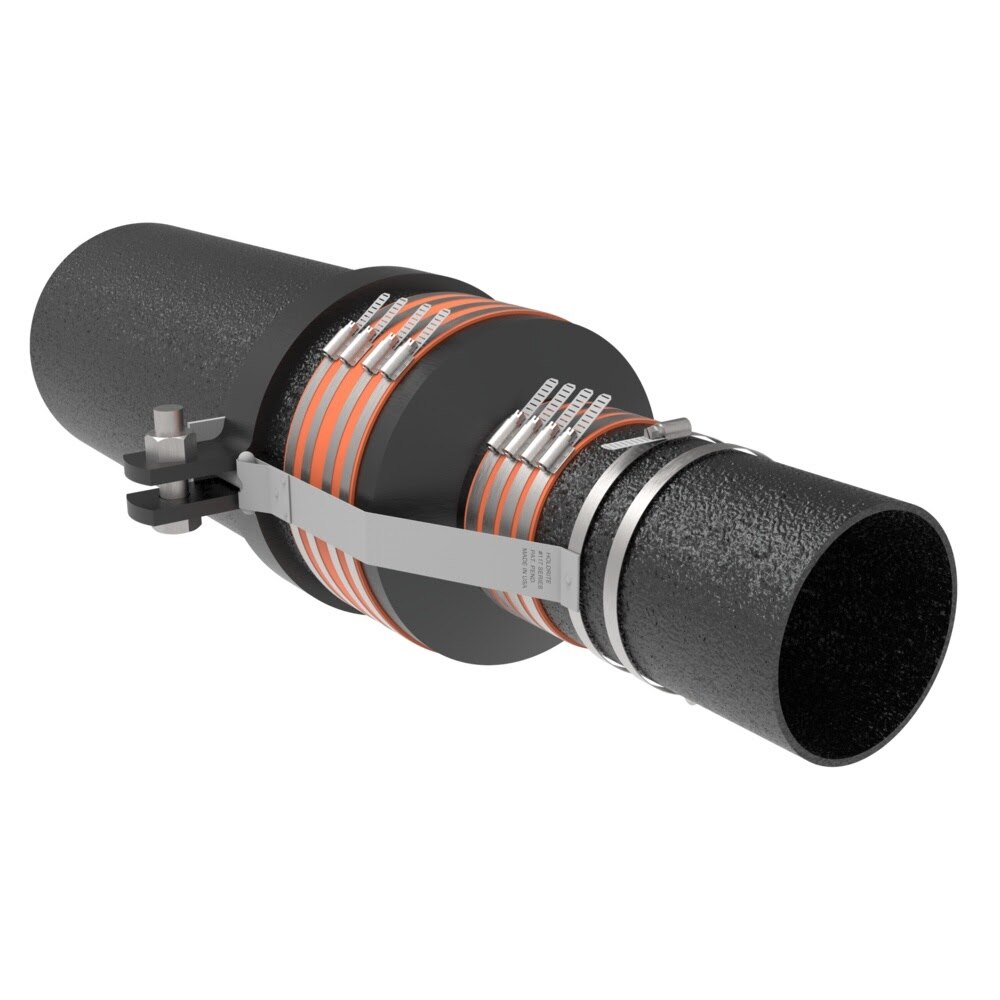

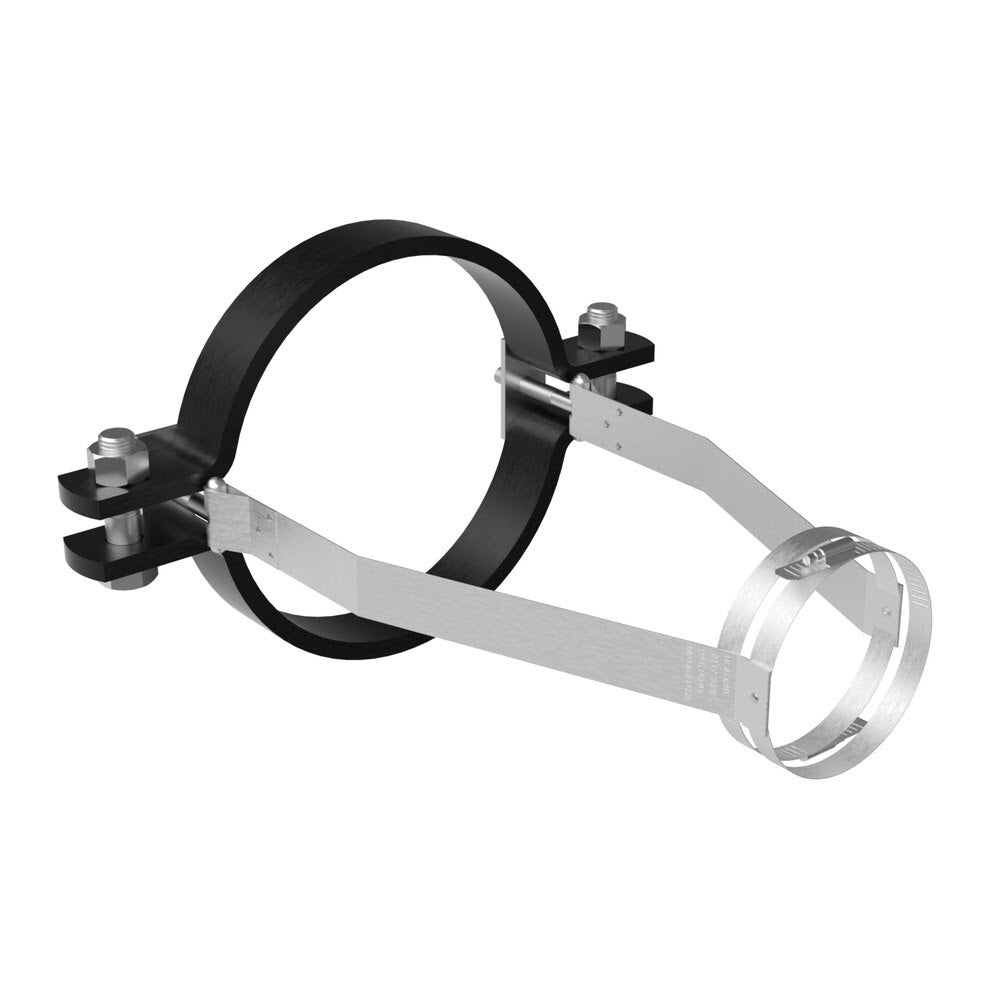

The HoldRite 117-12x4R 117-R Series no-hub short reducer restraint is designed to reinforce 12 in. x 4 in. cast iron reducer installations in DWV systems. Built for large-diameter applications, it uses a galvanized steel strap and heavy-duty pipe clamp design to help retain the reducer to adjoining piping when installed according to manufacturer instructions.
HoldRite 117-12x4R Includes
- (1) 12 in. x 4 in. No-Hub Short Reducer Restraint
HoldRite 117-12x4R Features
- Designed for 12 in. x 4 in. no-hub short reducer installations
- Reinforces cast iron fitting reducers in DWV systems
- 117-R Series design for large-diameter reducer applications
- Uses 24 ga. CRS galvanized steel strap material
- Uses a heavy-duty steel pipe clamp style restraint
- Helps retain reducer fittings to adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- For sizes 10 in. to 15 in., pipe clamp bolts require 60 ft./lbs. of torque
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-12x4R Specifications
| Brand | HoldRite |
| Series | 117-R Series |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 12 in. x 4 in. |
| Application | Cast iron DWV reducer installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Required Torque | 60 ft./lbs. on pipe clamp bolts for sizes 10 in. to 15 in. |
| Product Length (in.) | 22 |
| Product Width (in.) | 12 |
| Product Height (in.) | 10 |
| Shipping Weight (lb) | 33 |
Toolup Part # :
882081
