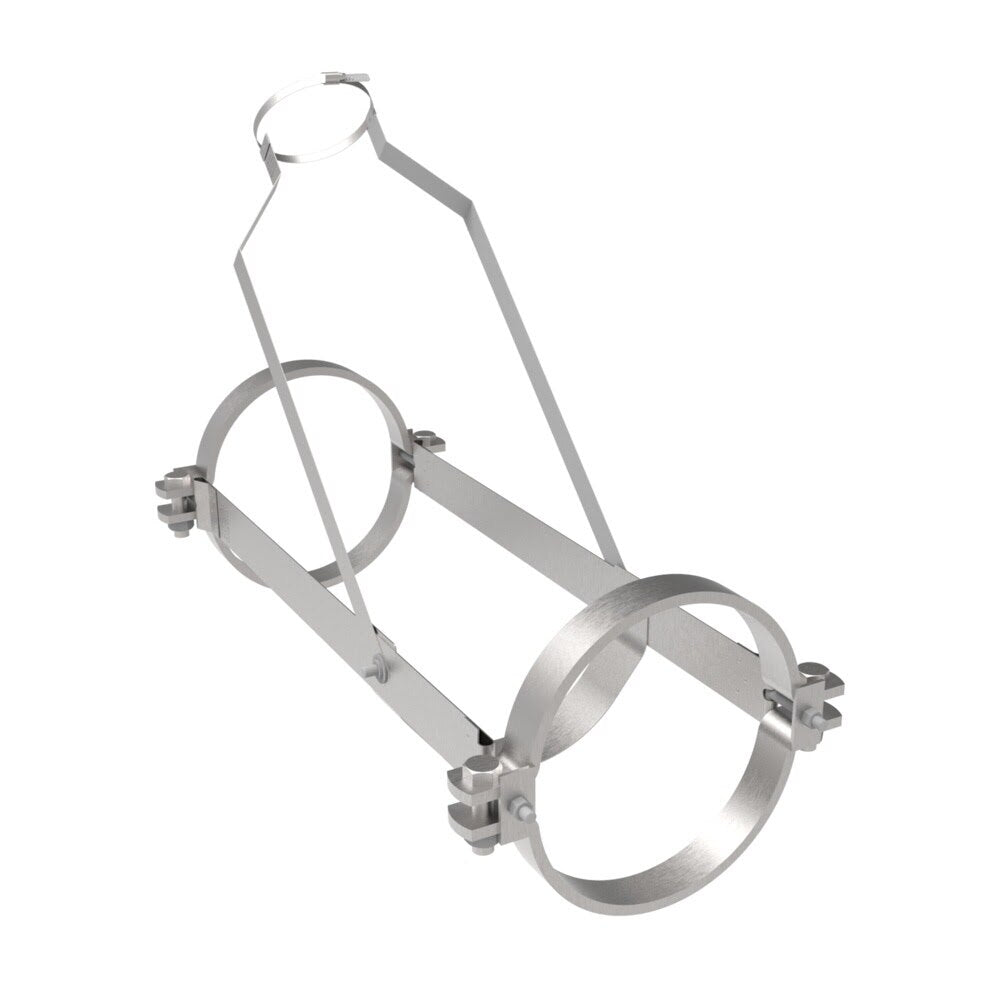

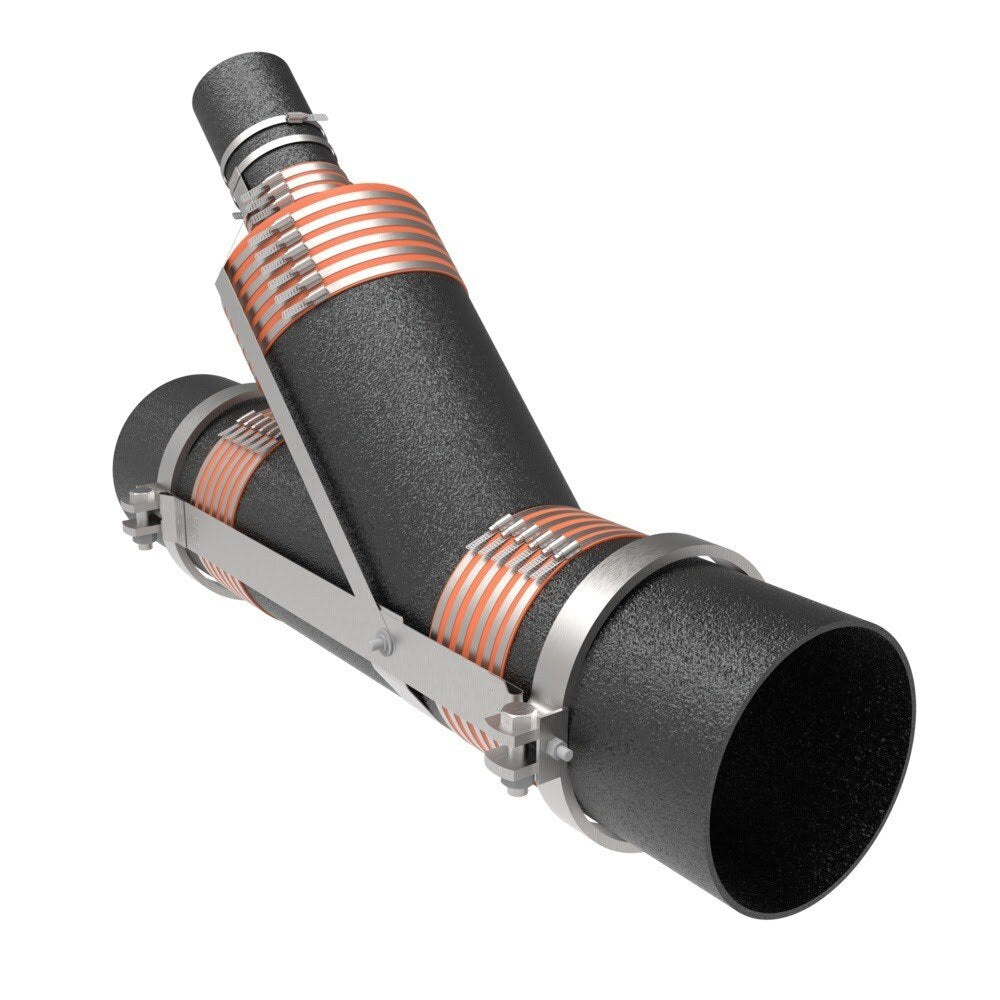

HoldRite 117-12x4WR-G Description
The HoldRite 117-WR Series 12 in. x 4 in. galvanized no-hub wye fitting restraint is designed to reinforce no-hub cast iron installations and retain the wye fitting to adjoining piping in mid-span runs. Built for DWV applications, it uses a galvanized steel strap with stainless steel band components and heavy-duty pipe clamps for secure installation.
HoldRite 117-12x4WR-G Includes
- (1) 12 in. x 4 in. No-Hub Wye Fitting Restraint
HoldRite 117-12x4WR-G Features
- Designed to reinforce no-hub cast iron installations
- Retains the wye fitting to adjoining piping in mid-span runs
- Made with a 16 ga. cold rolled galvanized steel strap
- Features stainless steel body, band, and screw components
- Uses heavy-duty galvanized steel pipe clamps
- Supports installation in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Requires a minimum of 60 in./lbs. torque on the band
- Requires 60 ft./lbs. torque on pipe clamp bolts for 12 in. to 15 in. products
HoldRite 117-12x4WR-G Specifications
| Brand | HoldRite |
| Series | 117-WR Series |
| Product Type | No-Hub Wye Fitting Restraint |
| Size | 12 in. x 4 in. |
| Application | DWV no-hub cast iron installations |
| Installation Location | Mid-span runs |
| Strap Material | 16GA CRS galvanized steel |
| Body Band and Screw Material | Stainless steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Band Torque | 60 in./lbs. minimum |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Shipping Weight | 33 lb |
Toolup Part # :
882070
