HoldRite 117-12x6R Description

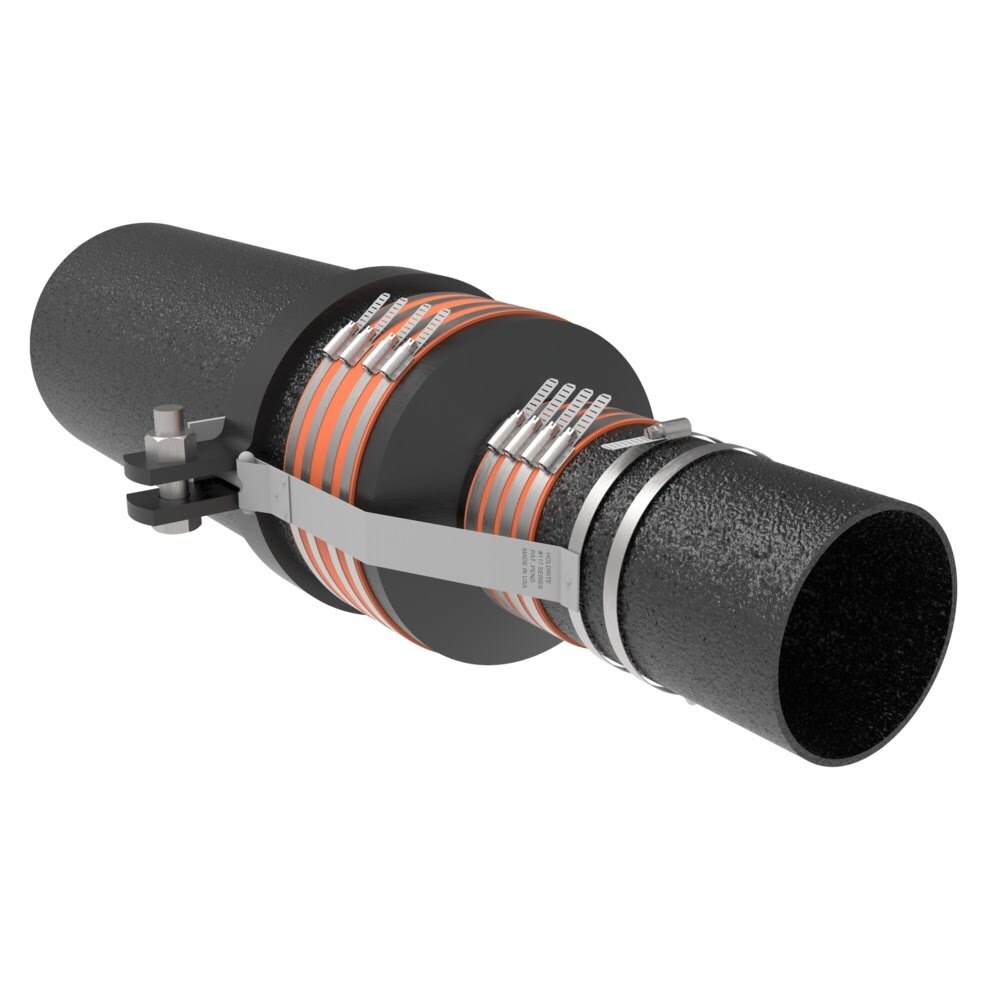

The HoldRite 117-12x6R 12 x 6 in. no-hub short reducer restraint is designed to reinforce no-hub cast iron reducer installations in DWV systems. This heavy-duty restraint assembly helps secure the reducer to adjoining piping for reliable support in large-diameter applications.
HoldRite 117-12x6R Includes

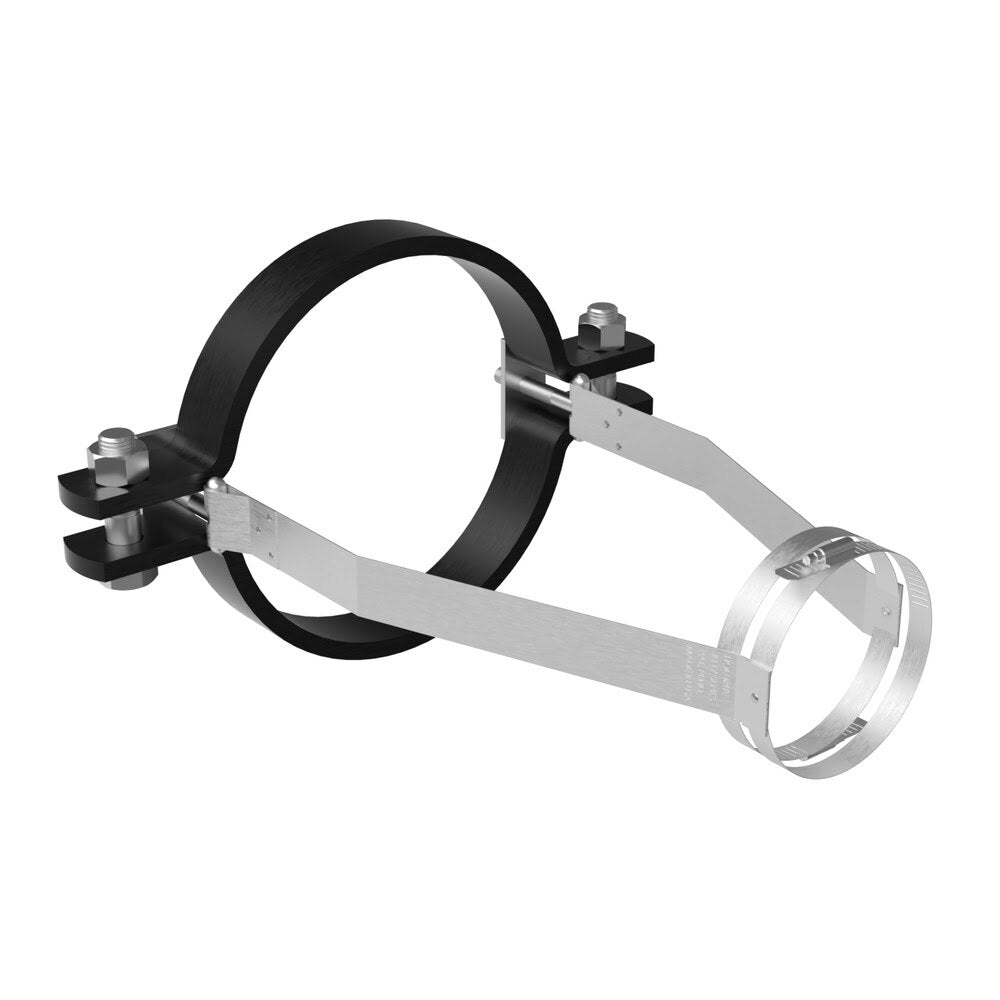

- (1) 12 x 6 in. No-Hub Short Reducer Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-12x6R Features
- Designed to reinforce no-hub cast iron short reducer installations
- Sized for 12 x 6 in. reducer fittings
- Helps retain the reducer fitting to adjoining piping
- Heavy-duty restraint design for large-diameter DWV applications
- Galvanized steel strap construction
- For larger sizes, uses heavy-duty steel pipe clamp and straps
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
HoldRite 117-12x6R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 12 x 6 in. |
| Application | DWV no-hub cast iron reducer fittings |
| Strap Material | Galvanized steel |
| Clamp Type | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Pipe Clamp Bolt Torque | 60 ft/lbs |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 19.5 |
| Product Width (in) | 10 |
| Product Height (in) | 10 |
| Shipping Weight (lb) | 33.1 |
| Case Quantity | 2 |
