HoldRite 117-12x6R-G Description

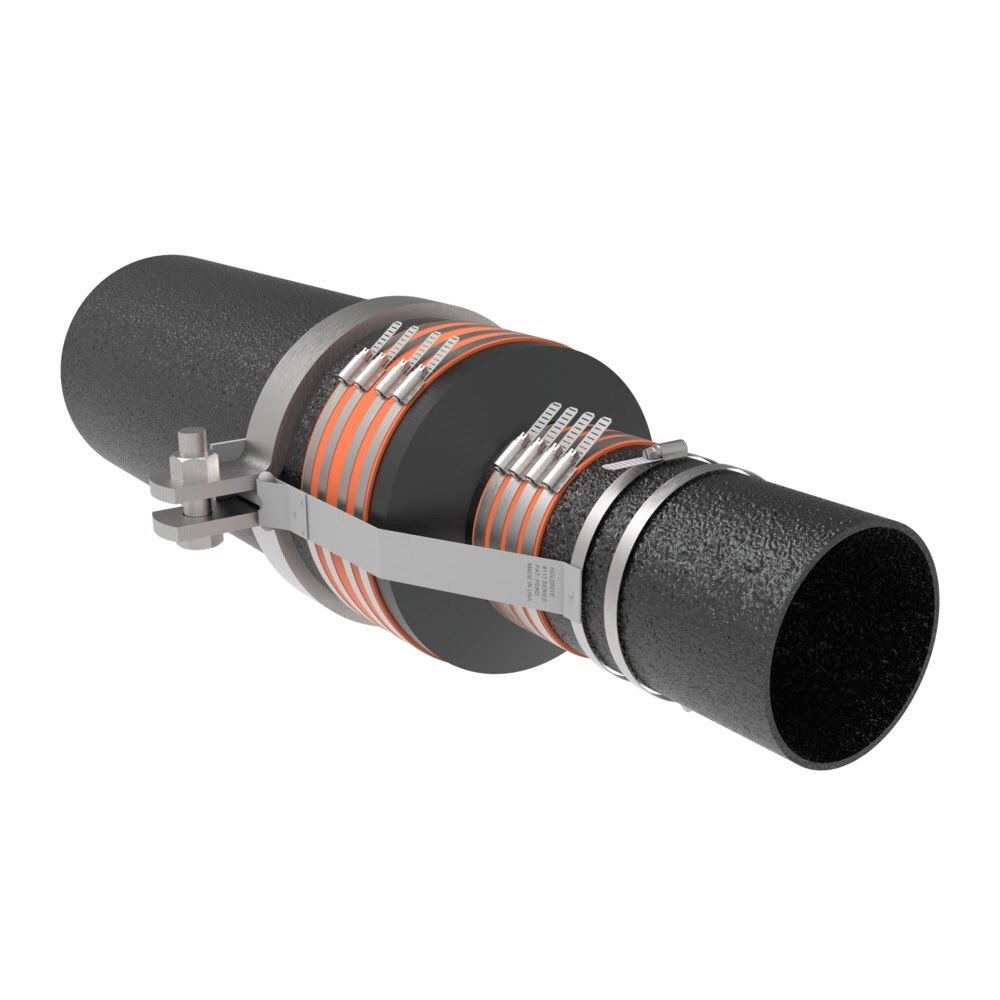

The HoldRite 117-12x6R-G is a 12 x 6 in. galvanized no-hub short reducer fitting restraint designed to reinforce no-hub cast iron reducer installations. When installed correctly, it helps retain the reducer fitting on adjoining piping and provides a safe thrust pressure rating equal to 50 ft. head of water.
HoldRite 117-12x6R-G Includes

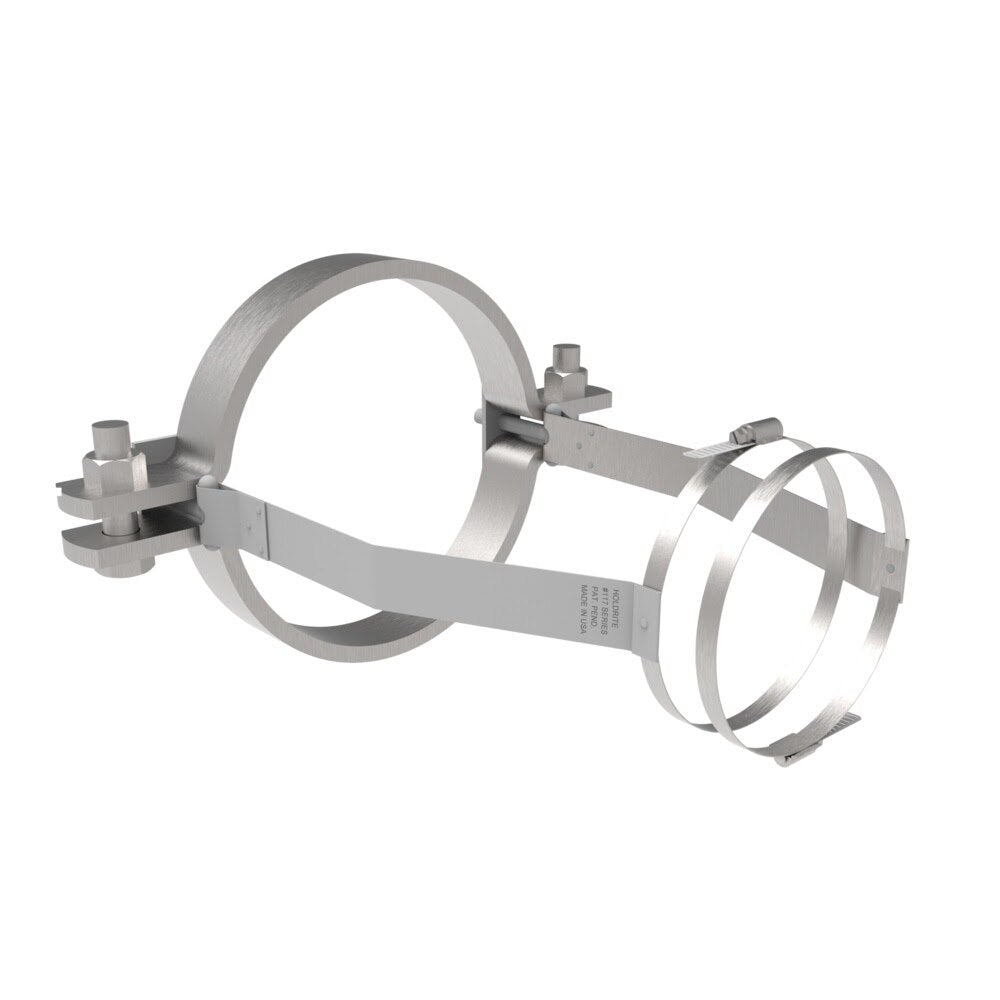

- (1) 12 x 6 in. No-Hub Short Reducer Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-12x6R-G Features
- Designed to reinforce no-hub cast iron reducer installations
- Sized for 12 x 6 in. short reducer fittings
- Galvanized steel construction for corrosion resistance
- Helps retain reducer fittings onto adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when installed correctly
- Meets installation requirements referenced in CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- For 10 in. to 15 in. sizes, heavy-duty pipe clamps and straps are used
- Pipe clamp bolts require 60 ft./lbs. of torque for this size range
HoldRite 117-12x6R-G Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 12 x 6 in. |
| Finish | Galvanized |
| Strap Material | 24GA CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Application | No-hub cast iron reducer fittings |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Thrust Pressure Rating | 50 ft. head of water |
| Required Torque | 60 ft./lbs. pipe clamp bolt torque |
| Each Shipping Weight | 33 lb |
| Case Quantity | 2 |
