HoldRite 117-12x8R Description

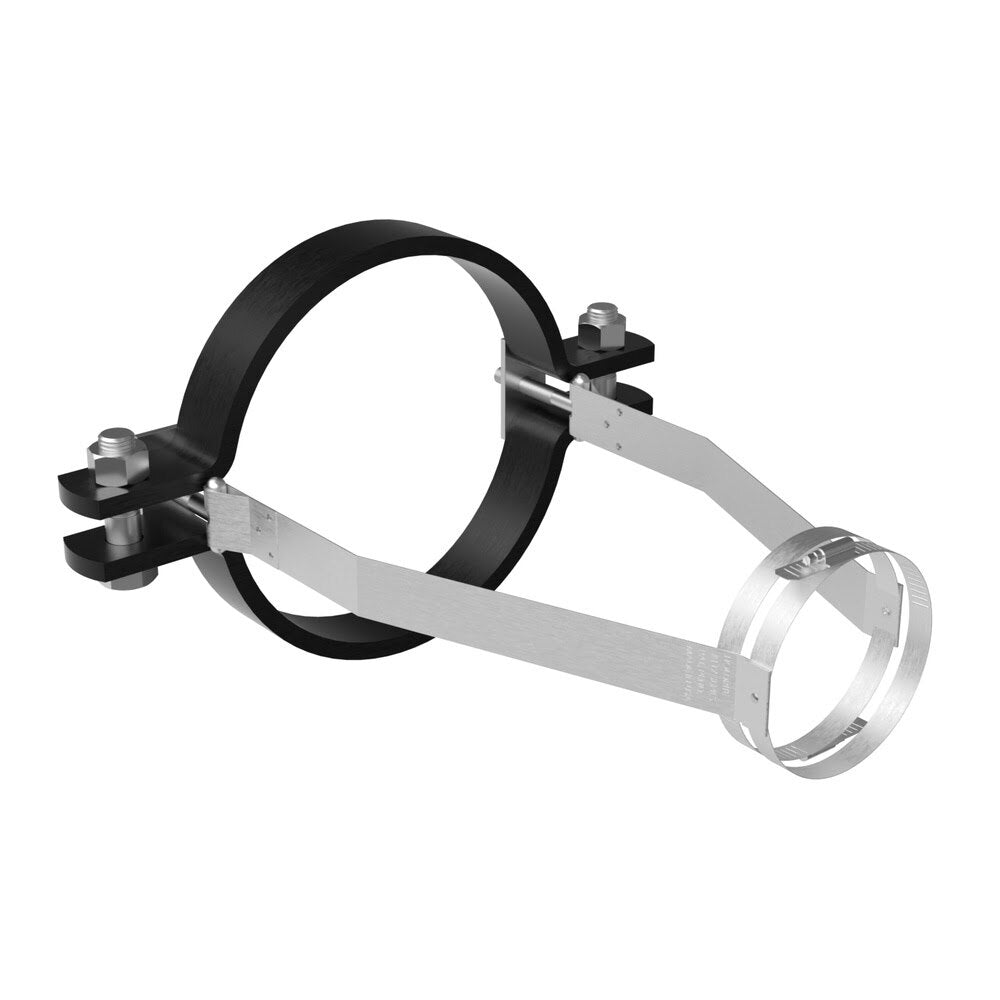

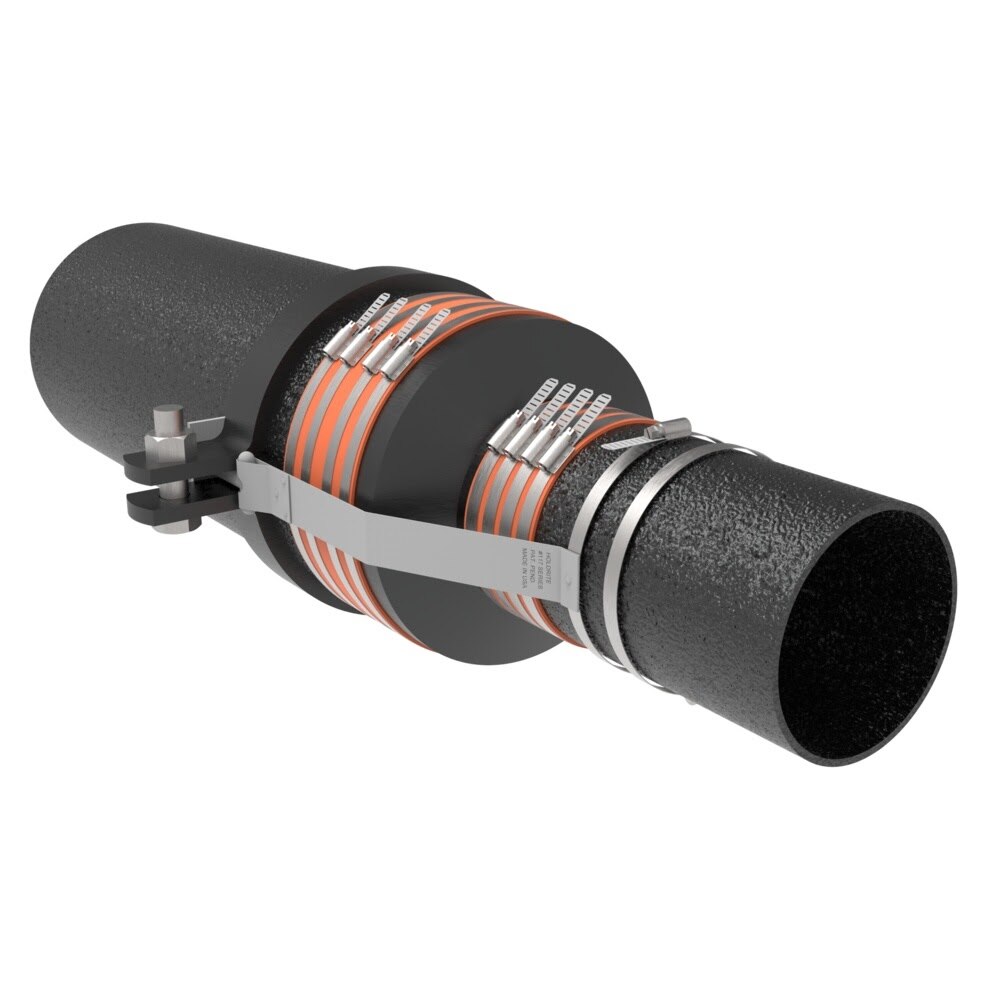

The HoldRite 117-12x8R is a 12 x 8 in. no-hub short reducer restraint designed to reinforce cast iron DWV reducer fittings. It uses galvanized steel straps and a heavy-duty pipe clamp to help retain the reducer on adjoining piping in demanding no-hub installations.
HoldRite 117-12x8R Includes
- (1) 12 x 8 in. No-Hub Short Reducer Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-12x8R Features
- Designed for 12 x 8 in. no-hub short reducer fittings
- Reinforces no-hub cast iron DWV installations
- Helps retain reducer fittings on adjoining piping
- Uses galvanized steel straps with T-bolts
- Built with a heavy-duty steel pipe clamp for large-diameter applications
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Requires 60 ft./lbs. of torque on pipe clamp bolts for large sizes
HoldRite 117-12x8R Specifications
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Trade Size | 12 x 8 in. |
| Application | No-hub cast iron reducer fittings in DWV systems |
| Strap Material | 24 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Shipping Length (in) | 20.5 |
| Shipping Width (in) | 8.75 |
| Shipping Height (in) | 9.5 |
| Shipping Weight (lb) | 8.9 |
| Case Quantity | 2 |
Toolup Part # :
882232
