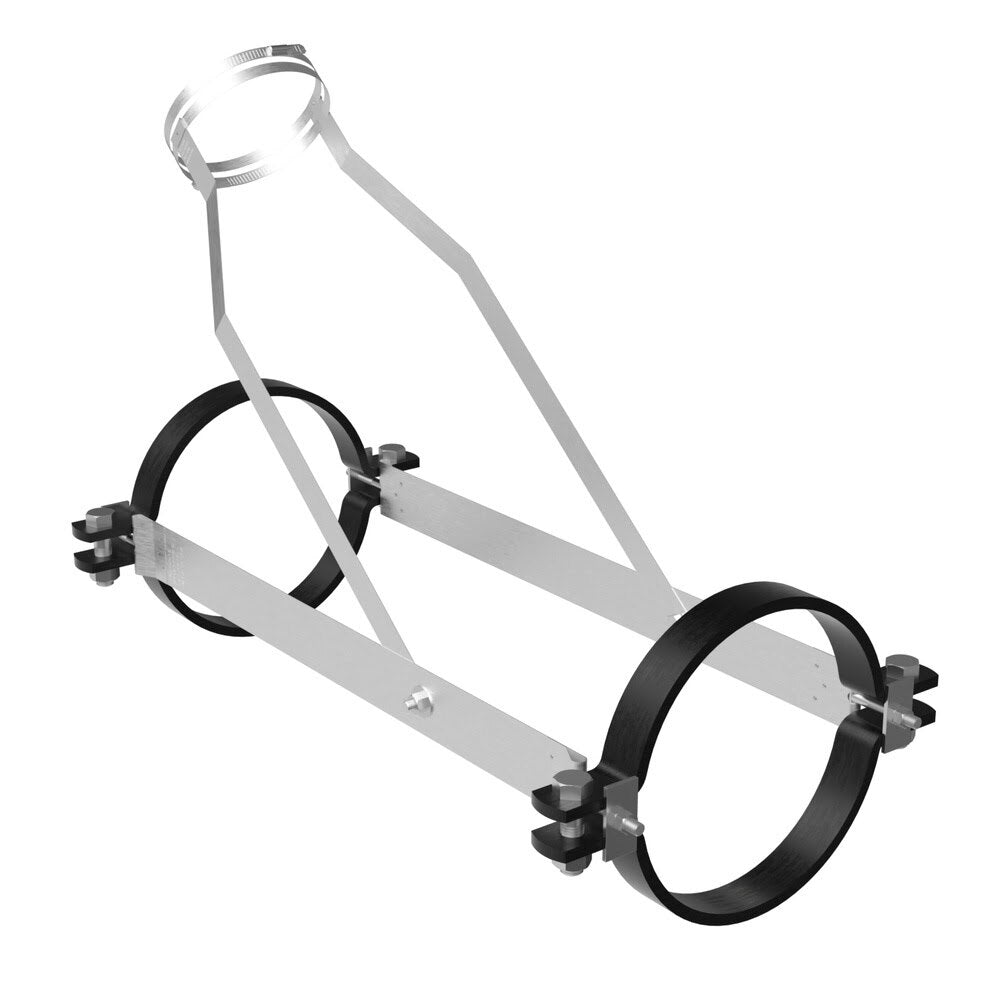

HoldRite 117-12x8WR Description

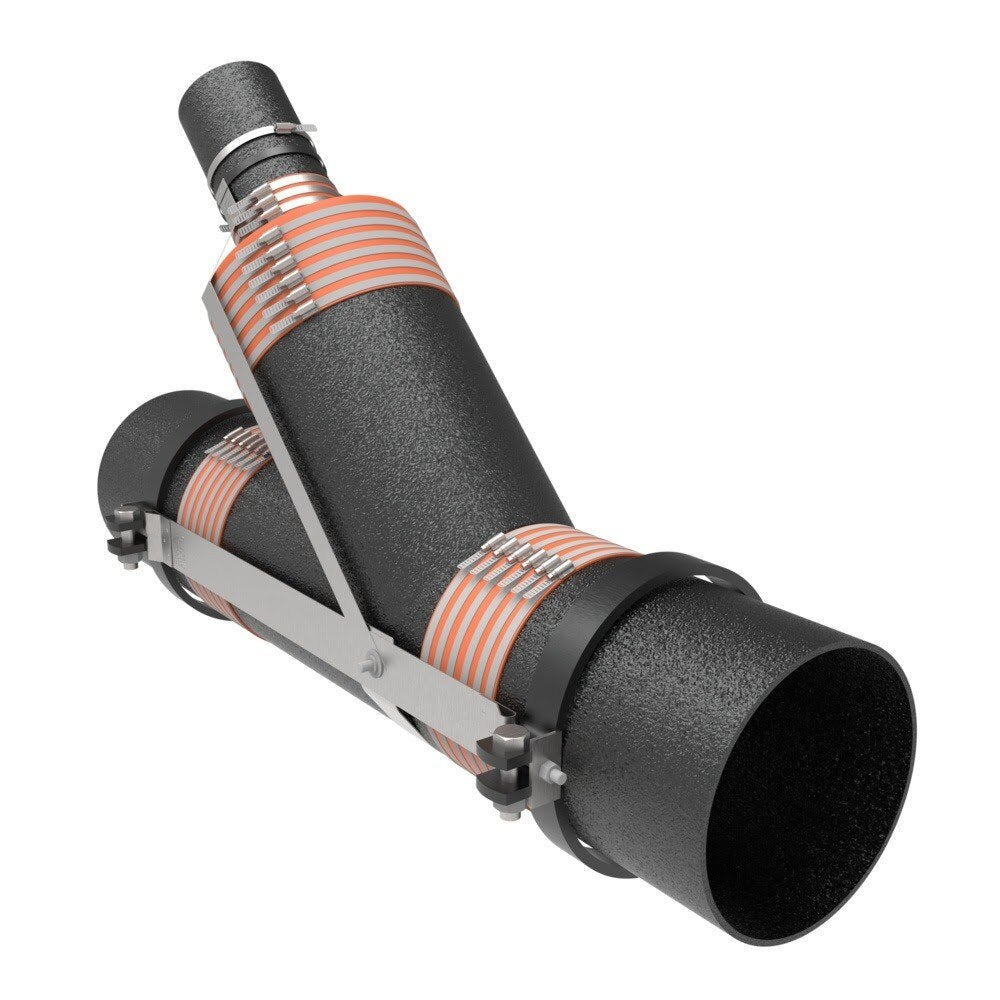

The HoldRite 117-WR Series 12 in. x 8 in. no-hub wye restraint with reducer is designed to reinforce cast iron DWV installations by retaining the wye fitting onto adjoining piping in mid-span runs. Its stainless steel body, band, and screw work with galvanized steel straps and heavy-duty pipe clamps for secure reinforcement in demanding applications.
HoldRite 117-12x8WR Includes
- (1) 12 in. x 8 in. No-Hub Wye Restraint with Reducer
HoldRite 117-12x8WR Features
- Designed to reinforce no-hub cast iron wye installations with reducer
- Retains the wye fitting onto adjoining piping in mid-span runs
- Stainless steel body, band, and screw for durability and corrosion resistance
- Uses 16-gauge CRS galvanized steel straps
- Heavy-duty steel pipe clamps provide added restraint for large-diameter applications
- Requires 60 in./lbs. minimum torque on band and 60 ft./lbs. on pipe clamps
- Designed for use in accordance with applicable CISPI installation guidance
- Patent pending design
HoldRite 117-12x8WR Specifications
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Nominal Size | 12 in. x 8 in. |
| Material | Stainless steel body, band and screw |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Minimum Band Torque | 60 in./lbs. |
| Pipe Clamp Torque | 60 ft./lbs. |
| Product Length (in) | 30.4 |
| Product Width (in) | 17.3 |
| Product Height (in) | 14.25 |
| Shipping Weight (lbs) | 39.9 |
Toolup Part # :
882045
