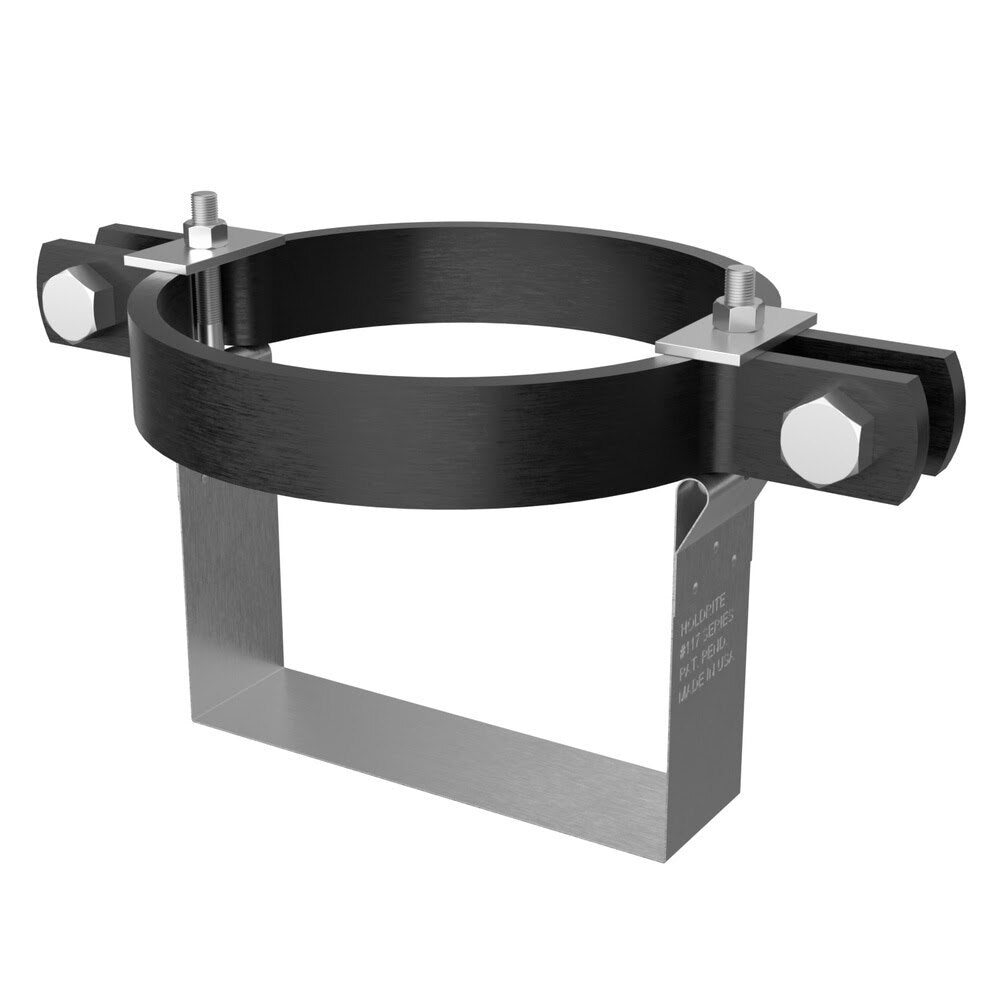

HoldRite 117-15BP Description

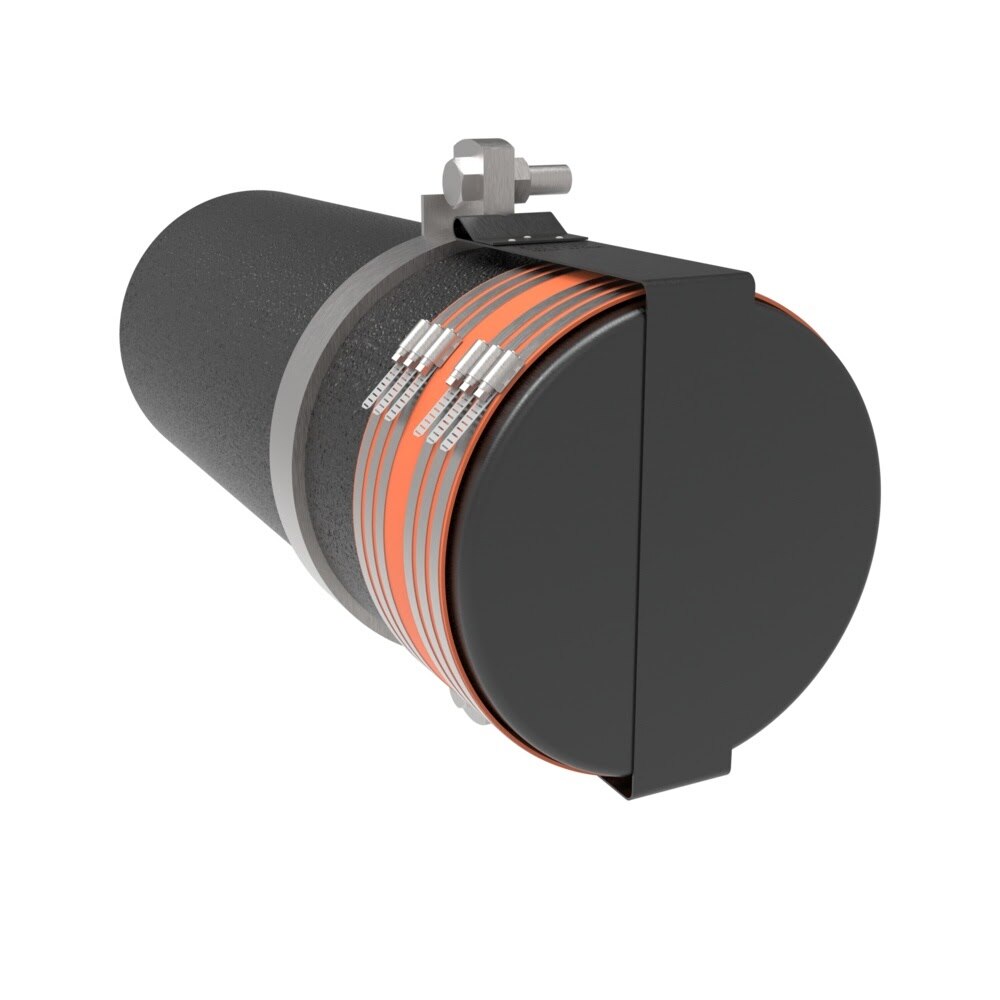

The HoldRite 117-15BP 15 in. no-hub blind plug restraint is designed to reinforce blind plugs and caps in no-hub cast iron DWV installations. This large-diameter 117-BP Series restraint uses a heavy-duty pipe clamp and 16-gauge galvanized steel straps to help secure the fitting and provide a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-15BP Includes
- (1) 15 in. No-Hub Blind Plug Restraint
HoldRite 117-15BP Features
- Designed to reinforce blind plug and cap connections in no-hub cast iron installations
- 15 in. large-diameter restraint for DWV testing applications
- Uses a heavy-duty steel pipe clamp and galvanized steel straps
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- For 10 in. to 15 in. sizes, pipe clamp bolts require 60 ft./lbs. torque
- Designed in accordance with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-15BP Specifications
| Series | 117-BP |
| Size | 15 in. |
| Product Type | Blind plug cap fitting restraint |
| Application | No-hub cast iron blind plug and cap installations |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Thrust Pressure Rating | 50 ft. head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
Toolup Part # :
882057
