HoldRite 117-15S Description

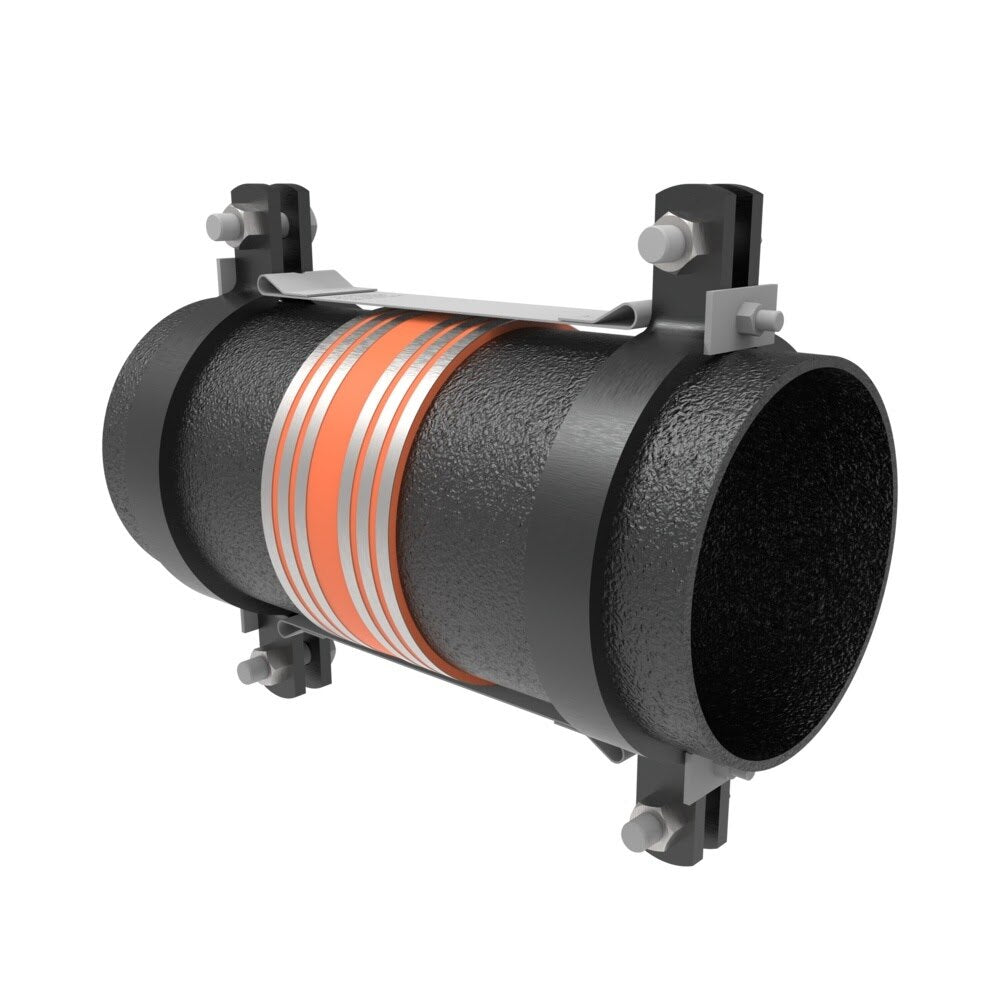

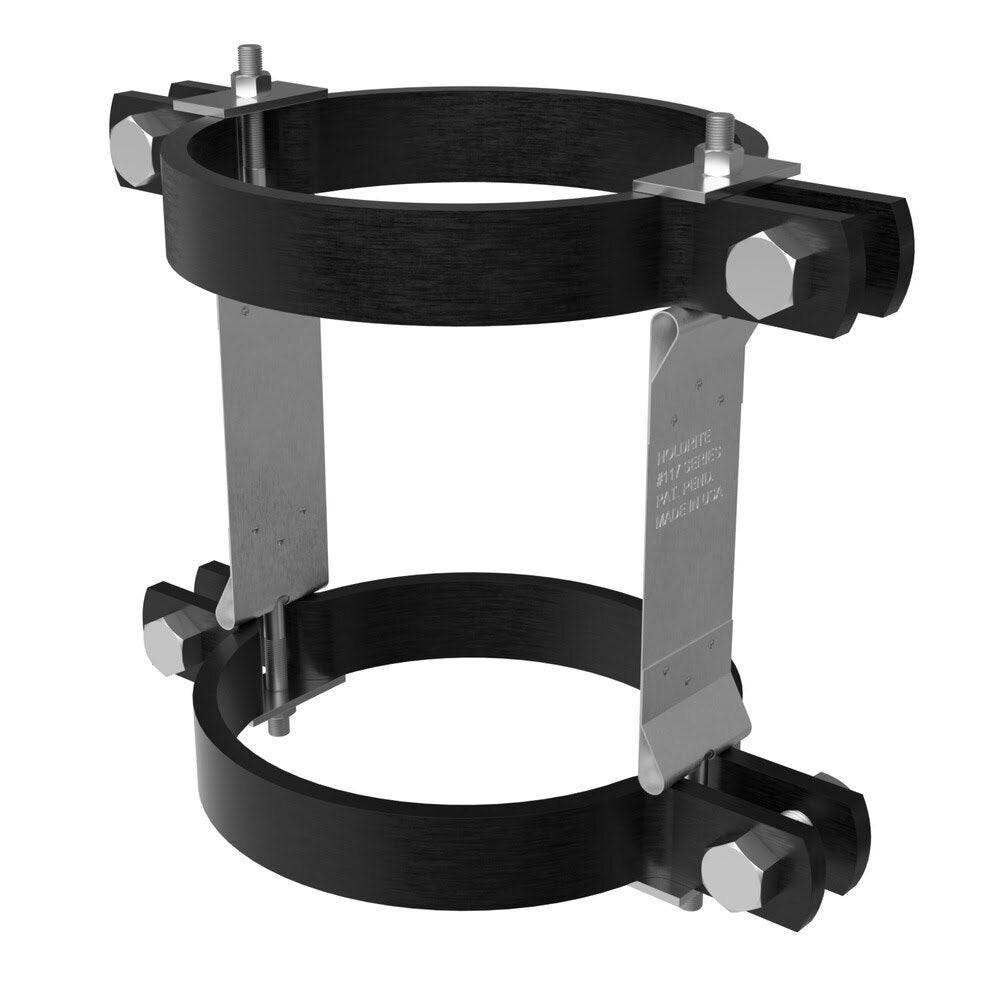

The HoldRite 117-15S is a 15 in. no-hub coupling restraint designed to reinforce straight coupling joints in no-hub cast iron installations. Built for large-diameter DWV applications, it uses heavy-duty pipe clamps and galvanized steel straps to help provide secure joint restraint when installed in accordance with CISPI guidelines.
HoldRite 117-15S Includes
- (1) 15 in. No-Hub Coupling Restraint
HoldRite 117-15S Features
- Designed to reinforce straight coupling joints in no-hub cast iron installations
- Sized for 15 in. applications
- Uses heavy-duty steel pipe clamps and straps for large-diameter sizes
- 16 ga. CRS galvanized steel strap construction
- Helps achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed for installation in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Pipe clamp bolts require 60 ft./lbs. of torque for this 15 in. size
HoldRite 117-15S Specifications
| Brand | HoldRite |
| Series | 117-S |
| Product Type | No-Hub Coupling Restraint |
| Nominal Size | 15 in. |
| Application | Straight coupling joint restraint for no-hub cast iron installations |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 30.25 |
| Product Width (in) | 17.6 |
| Product Height (in) | 3.4 |
| Shipping Weight (lb) | 38.5 |
Toolup Part # :
882044
