HoldRite 117-15S-G Description

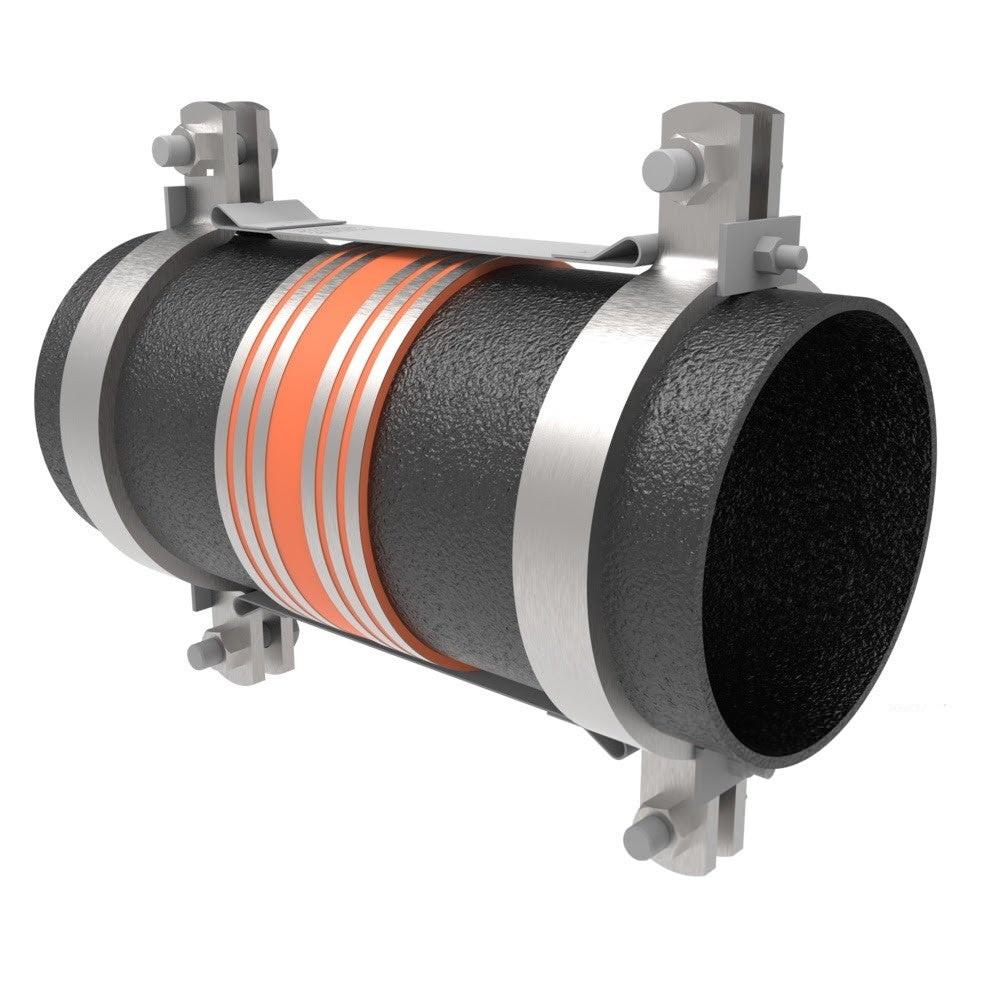

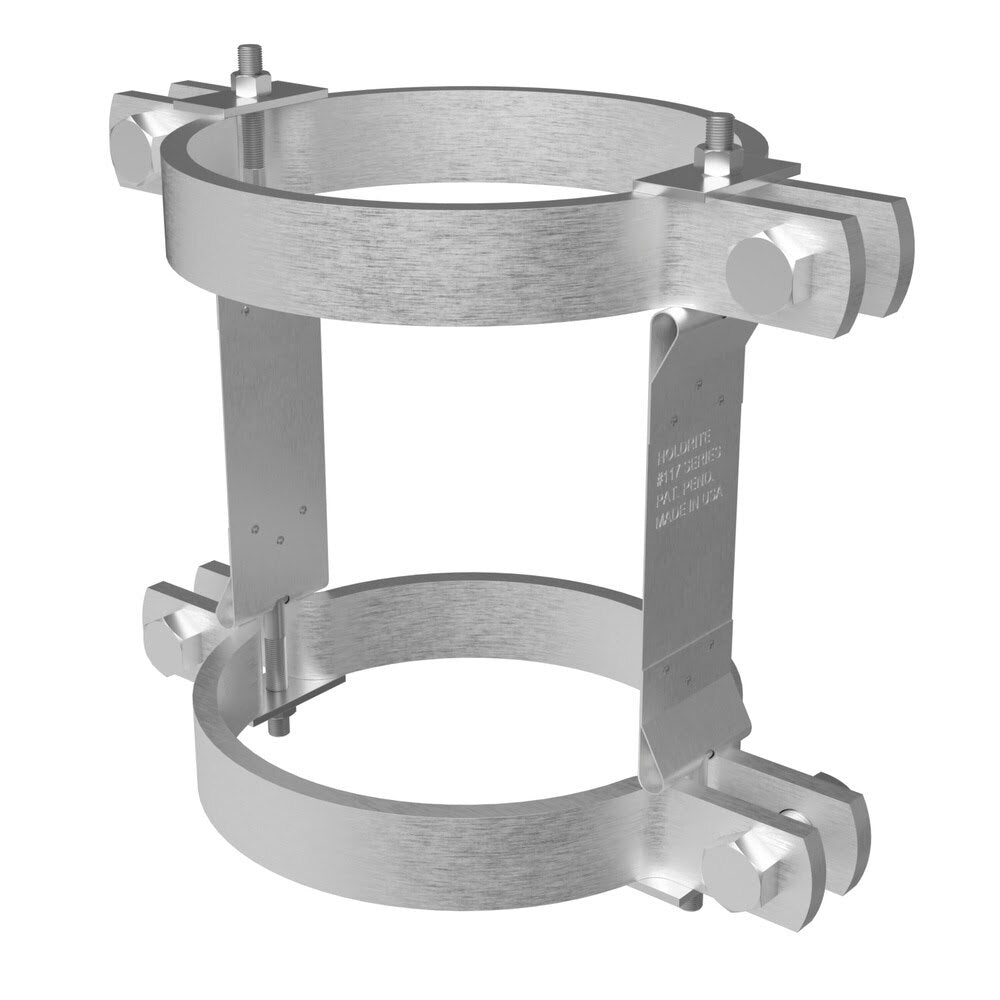

The HoldRite 117-15S-G is a 15 in. galvanized steel no-hub coupling restraint designed to reinforce straight coupling joints in no-hub cast iron pipe installations. Built for large-diameter applications, it uses heavy-duty pipe clamps and galvanized steel straps to help retain adjoining pipe sections and achieve a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-15S-G Includes
- (1) 15 in. No-Hub Coupling Restraint
- (2) Galvanized Steel Straps with T-bolts
HoldRite 117-15S-G Features
- Designed to reinforce no-hub cast iron straight coupling installations
- Galvanized steel construction for durability
- For 15 in. no-hub pipe applications
- Uses heavy-duty pipe clamps and galvanized steel straps for large-diameter sizes
- Requires 60 ft/lbs torque on pipe clamp bolts for 10 in. to 15 in. sizes
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-15S-G Specifications
| Series | 117-S |
| Product Type | No-Hub Coupling Restraint |
| Application | Straight coupling joint restraint for no-hub cast iron pipe installations |
| Nominal Size | 15 in. |
| Material | Galvanized steel |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Minimum Torque | 60 ft/lbs on pipe clamp bolts |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 33 lb |
Toolup Part # :
882072
