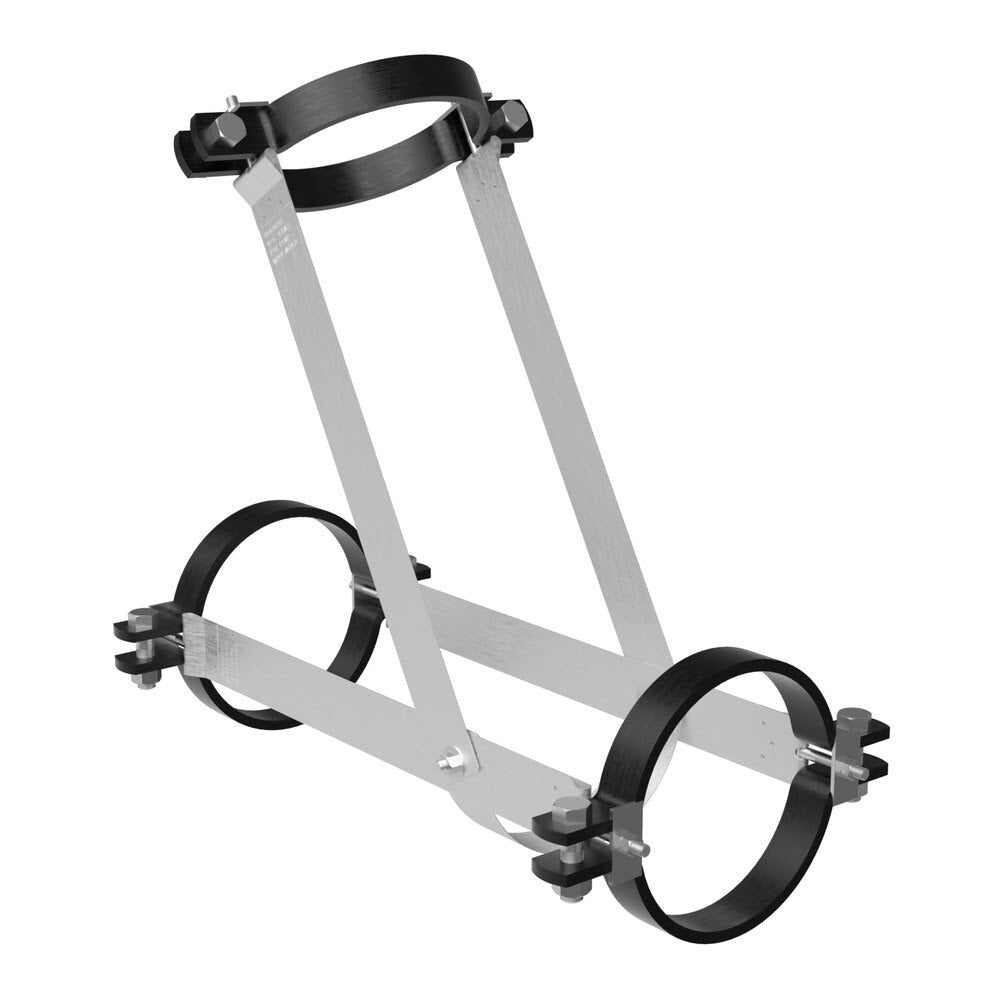

HoldRite 117-15W Description
The HoldRite 117-15W 15 in. No-Hub Wye Restraint is designed to reinforce no-hub cast iron DWV installations by securing a wye fitting to adjoining piping in mid-span runs. Built for large-diameter applications with galvanized steel straps and heavy-duty pipe clamps, it helps provide dependable restraint when installed per CISPI guidelines.
HoldRite 117-15W Includes
- (1) 15 in. No-Hub Wye Restraint
HoldRite 117-15W Features
- Designed to reinforce no-hub cast iron installations

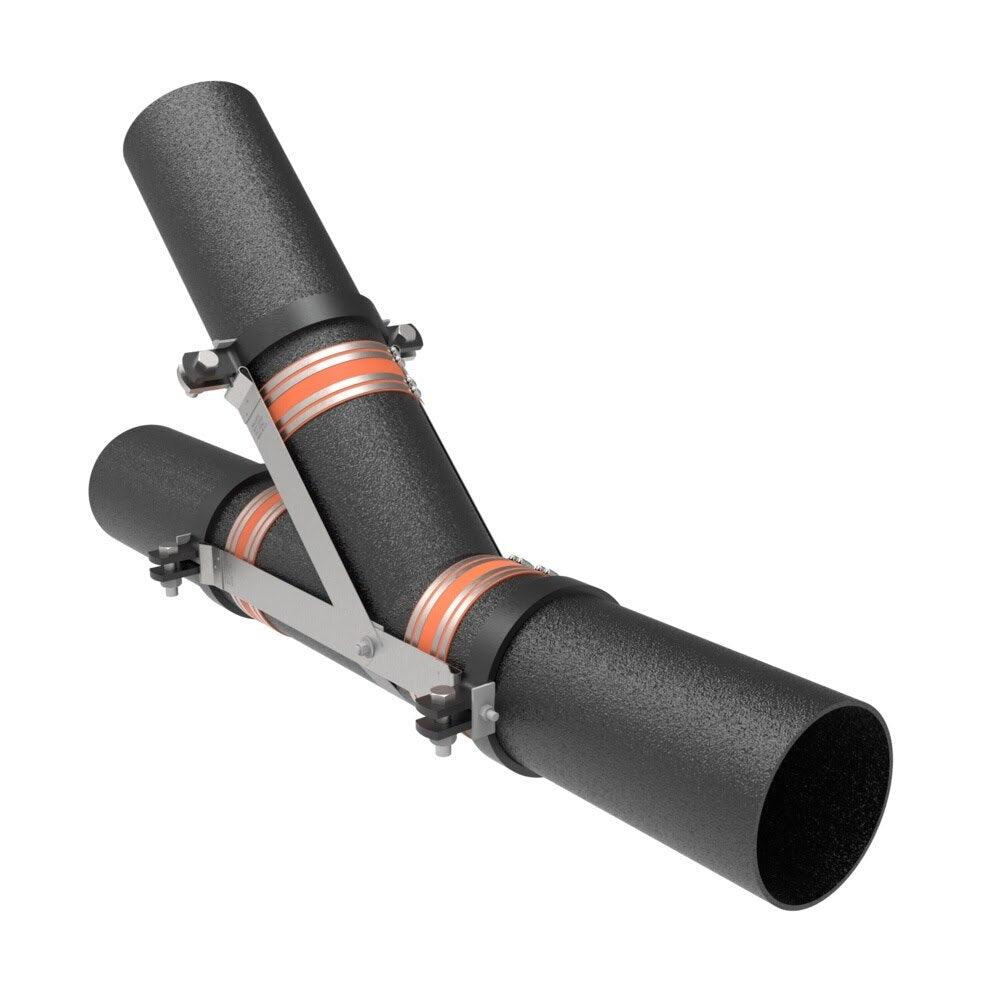

- Retains the wye fitting to adjoining piping in mid-span runs
- Sized for 15 in. applications
- 16 gauge galvanized cold rolled steel strap construction
- Uses heavy-duty steel pipe clamps for large-diameter sizes
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Pipe clamp bolts require 60 ft/lbs of torque for 10 in. to 15 in. sizes
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-15W Specifications
| Brand | HoldRite |
| Series | 117-W |
| Product Type | No-Hub Wye Restraint |
| Size | 15 in. |
| Application | No-hub cast iron DWV installations |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Thrust Pressure Rating | 50 ft head of water pressure |
| Pipe Clamp Bolt Torque | 60 ft/lbs |
| Product Length (in) | 30.25 |
| Product Width (in) | 17.5 |
| Product Height (in) | 3.5 |
| Shipping Weight (lb) | 35 |
Toolup Part # :
882058
