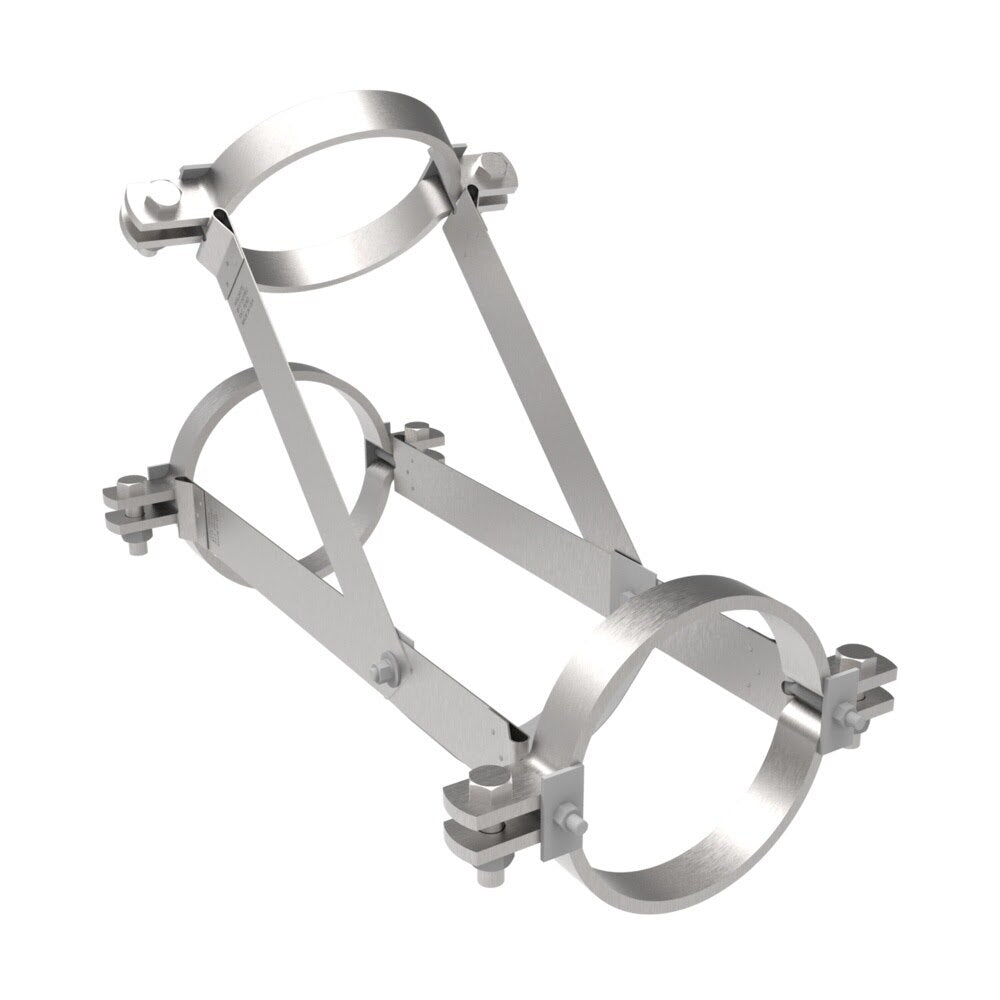

HoldRite 117-15W-G Description
The HoldRite 117-15W-G is a 15 in. galvanized no-hub wye fitting restraint designed to reinforce cast iron DWV installations. Built for large-diameter mid-span runs, it helps retain the wye fitting to adjoining piping and is engineered for use in applications following CISPI installation guidance.
HoldRite 117-15W-G Includes
- (1) 15 in. No-Hub Wye Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-15W-G Features
- Designed to reinforce 15 in. no-hub cast iron wye installations
- Galvanized steel construction for corrosion resistance

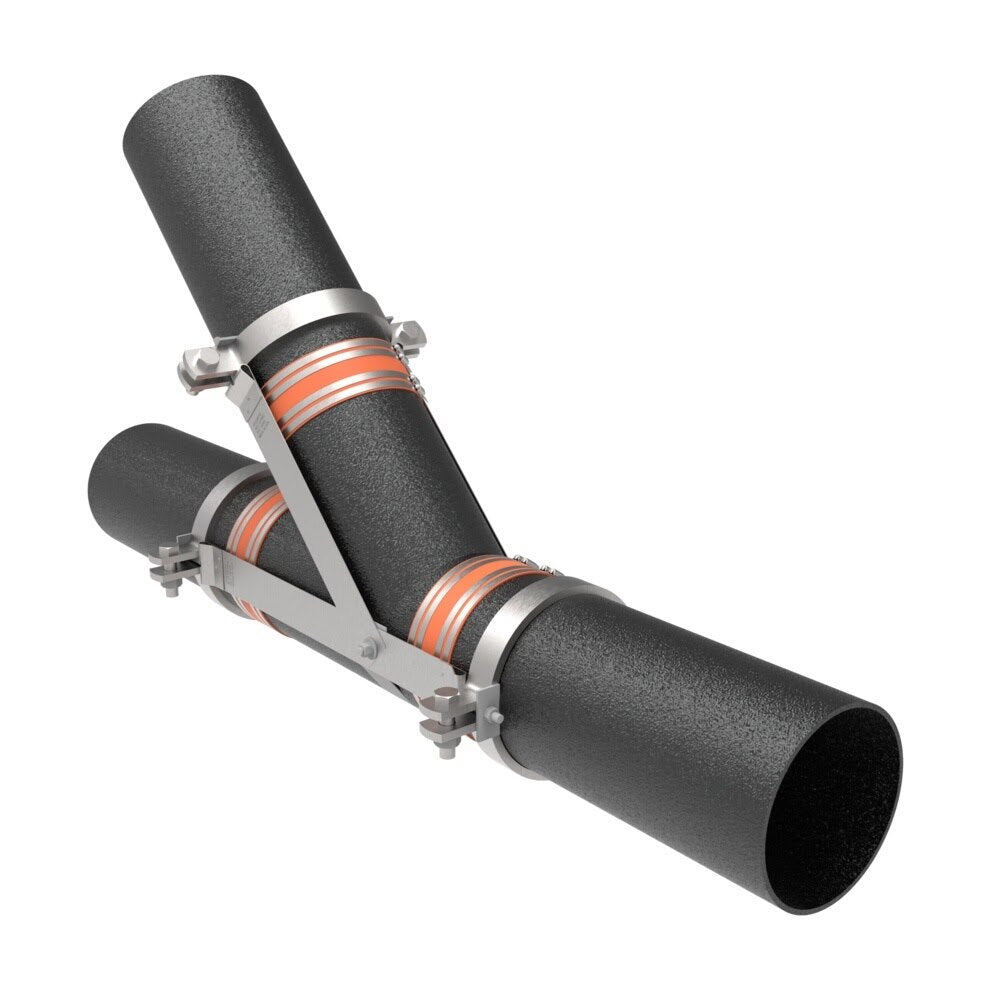

- Helps retain the wye fitting to adjoining piping in mid-span runs
- Part of the HoldRite 117-W Series DWV no-hub fitting restraints
- Uses heavy-duty steel pipe clamps and straps for large-diameter applications
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
HoldRite 117-15W-G Specifications
| Series | 117-W |
| Product Type | No-Hub Wye Fitting Restraint |
| Nominal Size | 15 in. |
| Fitting Type | Wye |
| Finish | Galvanized |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Hardware Material | Standard |
| Application | Mid-span no-hub cast iron installations |
| Compliance | CISPI 301-18; CISPI 310-18; 2006 CISPI Installation Handbook |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Required Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length | 30.4 in. |
| Product Width | 17.9 in. |
| Product Height | 3.2 in. |
| Shipping Weight | 65.6 lb |
