HoldRite 117-15x10R Description

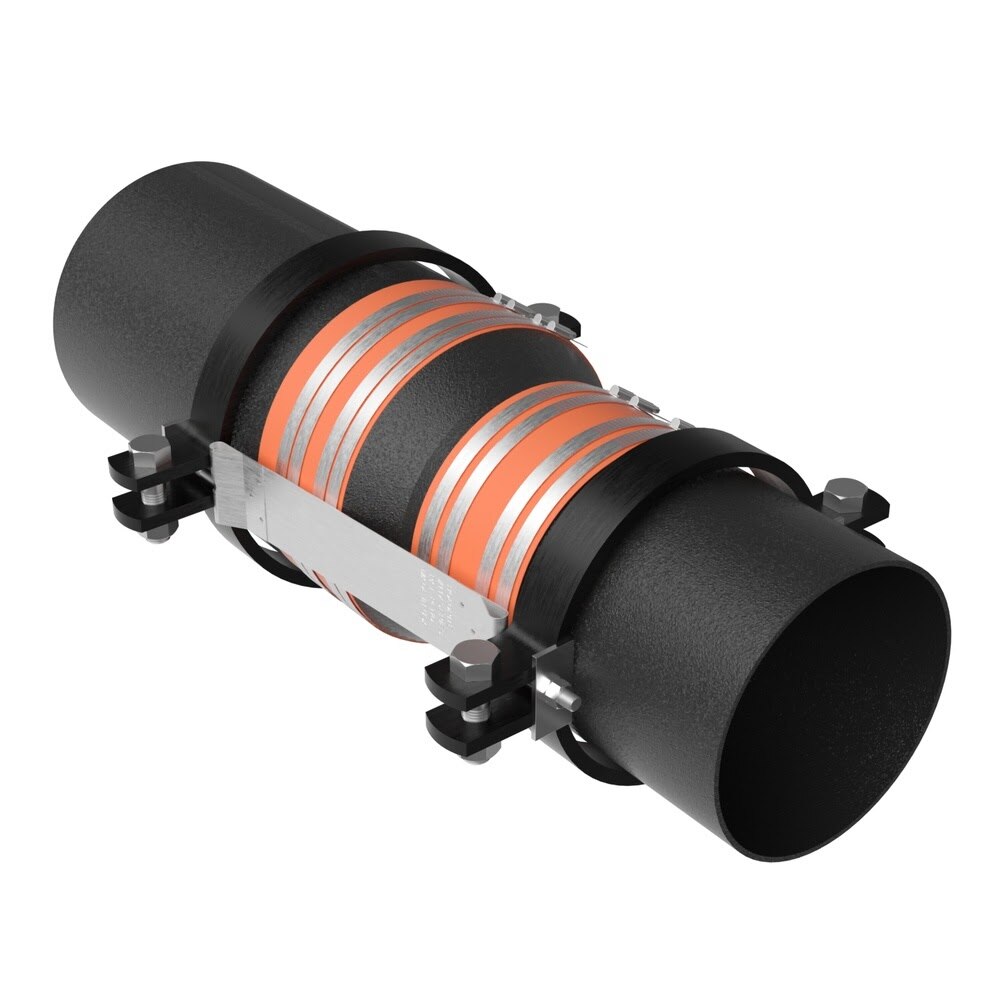

The HoldRite 117-15x10R is a 15 x 10 in. no-hub short reducer restraint designed to reinforce no-hub cast iron fitting reducer installations in DWV systems. For larger 10 in. to 15 in. sizes, it uses heavy-duty pipe clamps and galvanized steel straps to help secure the reducer to adjoining piping when installed per specification.
HoldRite 117-15x10R Includes
- (1) 15 x 10 in. No-Hub Short Reducer Restraint
HoldRite 117-15x10R Features
- Designed to reinforce no-hub cast iron fitting reducer installations
- Fits 15 x 10 in. short reducer applications
- Uses heavy-duty pipe clamps and galvanized steel straps for larger sizes
- Helps retain the reducer fitting to adjoining piping
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
- Designed in accordance with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-15x10R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 15 x 10 in. |
| Application | DWV no-hub cast iron fitting reducers |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy duty black or galvanized steel pipe clamp |
| Hardware Material | Standard |
| Minimum Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 30 |
| Product Width (in) | 17.5 |
| Product Height (in) | 14 |
| Shipping Weight (lbs) | 34.6 |
