HoldRite 117-15x10WR Description

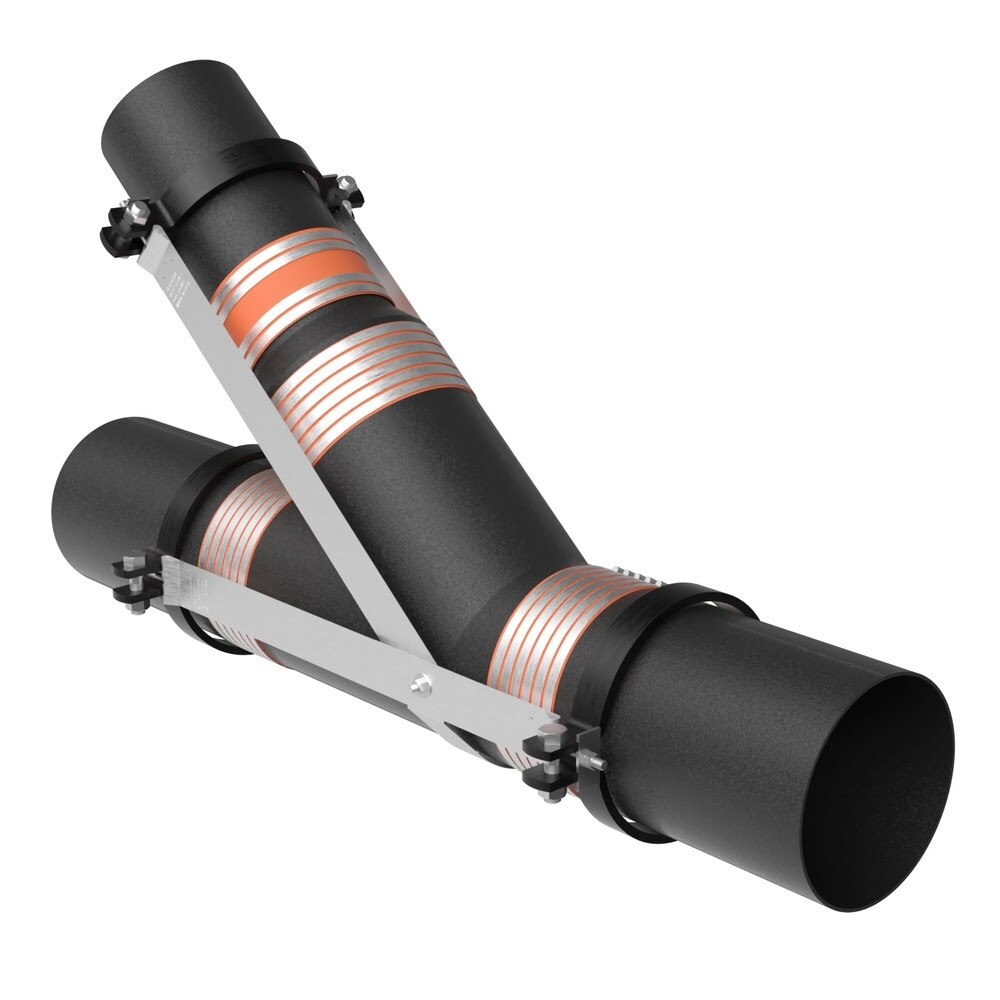

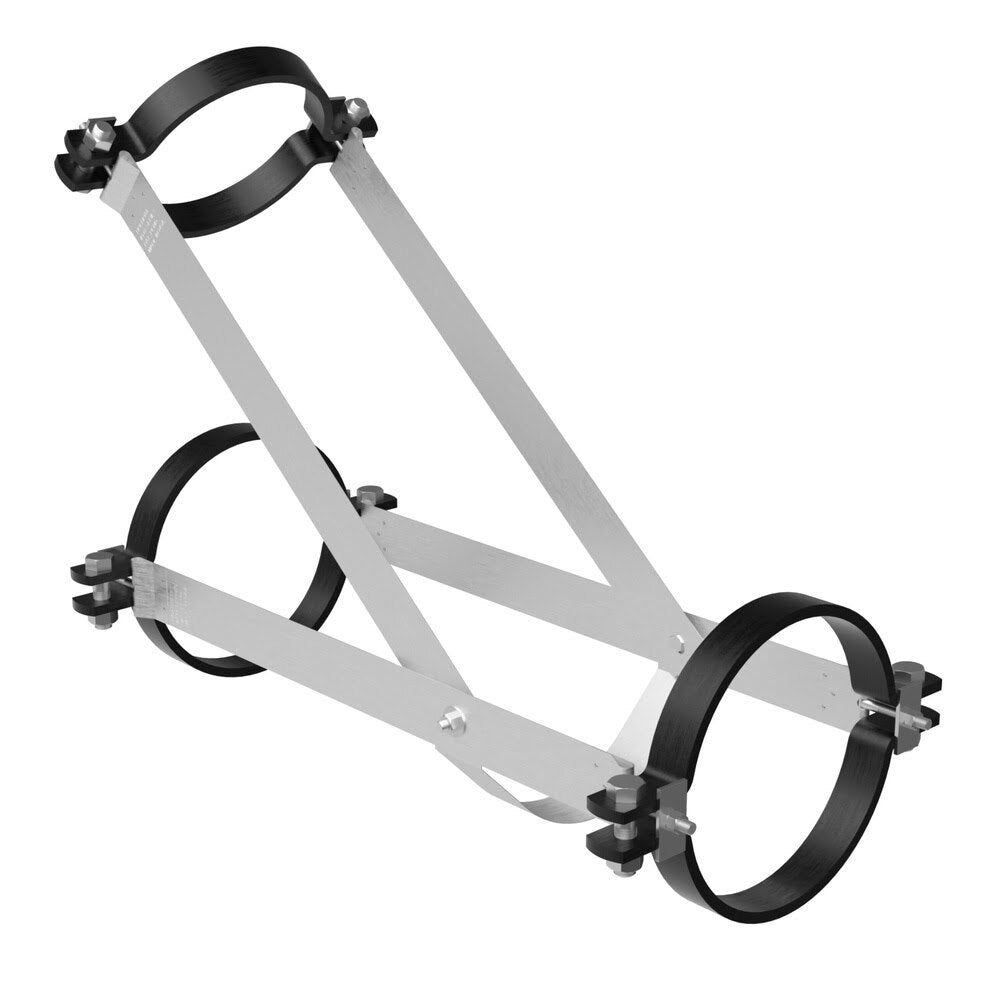

The HoldRite 117-15x10WR no-hub wye restraint with reducer is designed to reinforce 15 in. x 10 in. cast iron DWV installations. Built for mid-span runs, it helps retain the wye fitting to adjoining piping and uses stainless steel components with heavy-duty clamps and straps for large-size applications.
HoldRite 117-15x10WR Includes
- (1) 15 in. x 10 in. No-Hub Wye Restraint with Reducer
HoldRite 117-15x10WR Features
- Designed for 15 in. x 10 in. no-hub wye fittings with reducer
- Reinforces no-hub cast iron installations
- Helps retain the wye fitting to adjoining piping in mid-span runs
- Stainless steel body, band and screw construction
- Uses 16 ga. CRS galvanized steel straps
- Heavy-duty steel pipe clamps for large-size installations
- Pipe clamp bolts require 60 ft/lbs of torque
- Designed for installations in accordance with CISPI 301-18 and 310-18 guidelines
HoldRite 117-15x10WR Specifications
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Nominal Size | 15 in. x 10 in. |
| Application | Reinforces no-hub cast iron wye fittings in mid-span runs |
| Body Band Screw Material | Stainless steel |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty black or galvanized steel pipe clamp |
| Torque | 60 ft/lbs on pipe clamps |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 31.2 |
| Product Width (in) | 17.4 |
| Product Height (in) | 3.4 |
| Shipping Weight (lb) | 60.3 |
