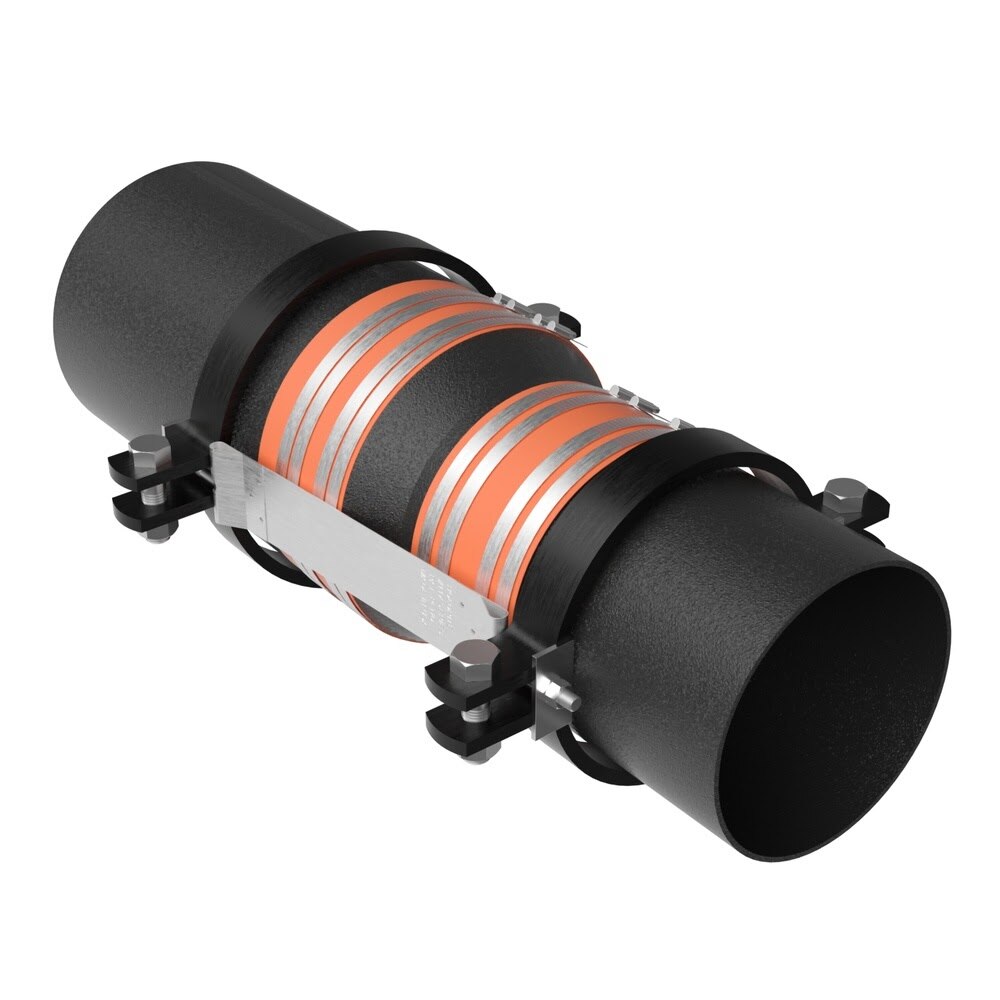

HoldRite 117-15x12R Description
The HoldRite 15 in. x 12 in. no-hub short reducer fitting restraint is designed to reinforce no-hub cast iron reducer installations in DWV systems. Built with galvanized steel straps and heavy-duty pipe clamps, it helps secure adjoining piping and provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-15x12R Includes
- (1) 15 in. x 12 in. No-Hub Short Reducer Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-15x12R Features
- Designed to reinforce no-hub cast iron reducer installations
- Helps retain the reducer fitting onto adjoining piping
- Suitable for DWV no-hub fitting restraint applications
- Constructed with 16 ga. galvanized steel straps
- Uses heavy-duty steel pipe clamps for large diameter sizes
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Pipe clamp bolts require 60 ft./lbs. of torque for 10 in. to 15 in. sizes
HoldRite 117-15x12R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 15 in. x 12 in. |
| Application | DWV no-hub cast iron installations |
| Strap Material | 16 ga. galvanized steel |
| Clamp Type | Heavy-duty steel pipe clamp |
| Pressure Rating | 50 ft. head of water pressure |
| Required Torque | 60 ft./lbs. on pipe clamp bolts |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 30.1 |
| Product Width (in) | 17.3 |
| Product Height (in) | 3.7 |
| Shipping Weight (lb) | 36.4 |
