HoldRite 117-15x12R-G Description

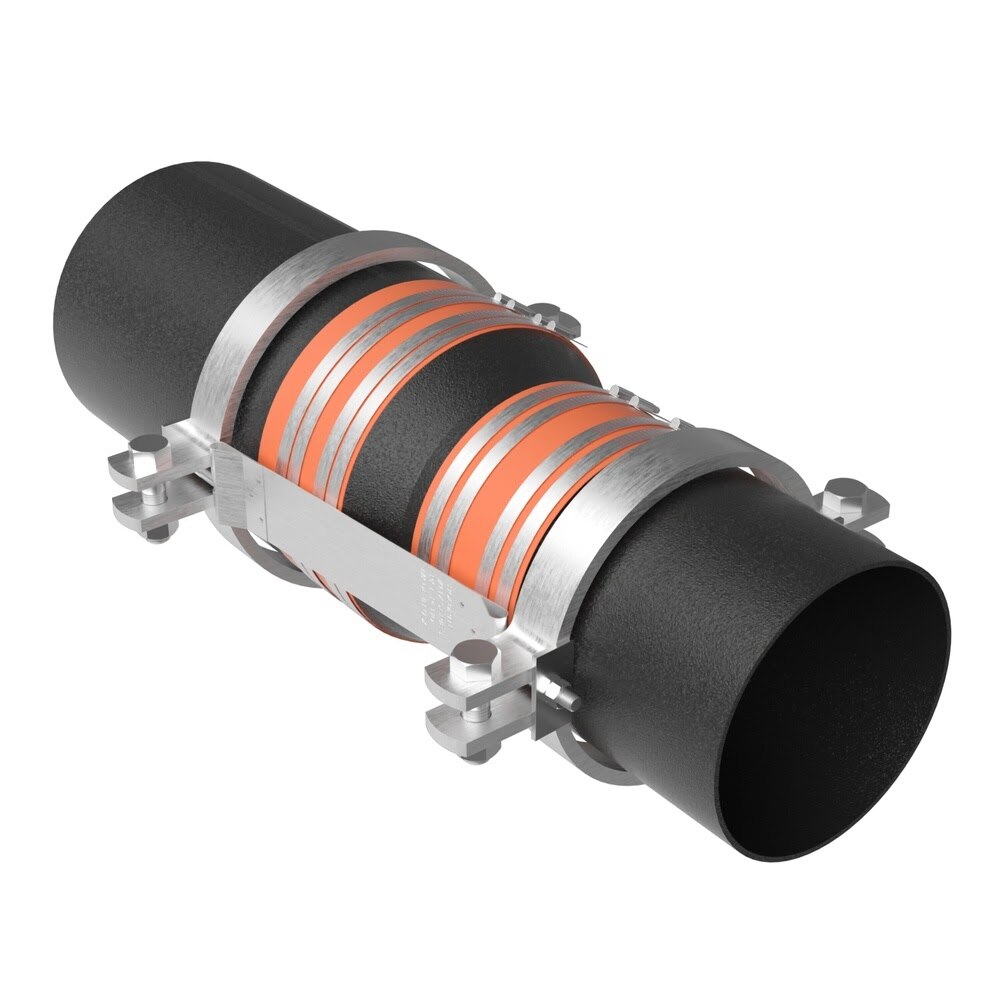

The HoldRite 117-15x12R-G 117-R Series short reducer no-hub fitting restraint is designed to reinforce 15 x 12 in. no-hub cast iron reducer installations. Built with 16 gauge cold-rolled galvanized steel straps and heavy-duty steel pipe clamp components, it helps secure reducer fittings to adjoining piping and provides a safe thrust pressure rating equal to 50 ft. head of water when properly installed.
HoldRite 117-15x12R-G Includes
- (1) 15 x 12 in. R Series Short Reducer No-Hub Fitting Restraint
- (2) Galvanized Steel Straps with T-Bolts
HoldRite 117-15x12R-G Features
- Designed for 15 x 12 in. no-hub cast iron reducer installations
- Reinforces fitting reducers in accordance with CISPI installation requirements
- Constructed with 16 ga. cold-rolled galvanized steel straps
- Uses heavy-duty galvanized steel pipe clamp components for large-size applications
- Helps retain reducer fittings to adjoining piping
- Provides a safe thrust pressure rating equal to 50 ft. head of water when installed correctly
- Requires 60 ft./lbs. torque on pipe clamp bolts for 10 in. to 15 in. sizes
HoldRite 117-15x12R-G Specifications
| Series | 117-R |
| Product Type | Short Reducer No-Hub Fitting Restraint |
| Nominal Size | 15 x 12 in. |
| Application | Reinforcing no-hub cast iron fitting reducers |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Hardware Material | Standard |
| Finish | Galvanized |
| Pressure Rating | 50 ft. head of water |
| Torque Requirement | 60 ft./lbs. |
| Shipping Weight | 33 lb |
Toolup Part # :
882089
