HoldRite 117-15x12WR Description

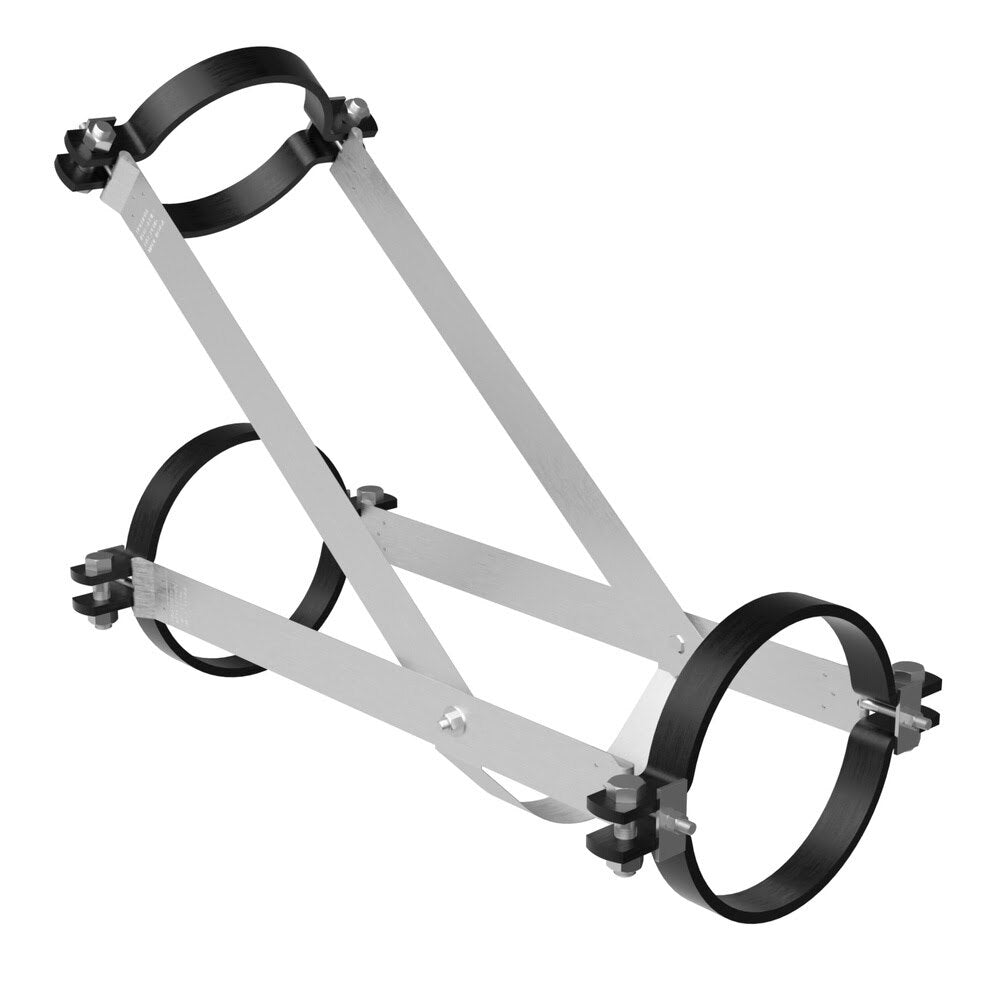

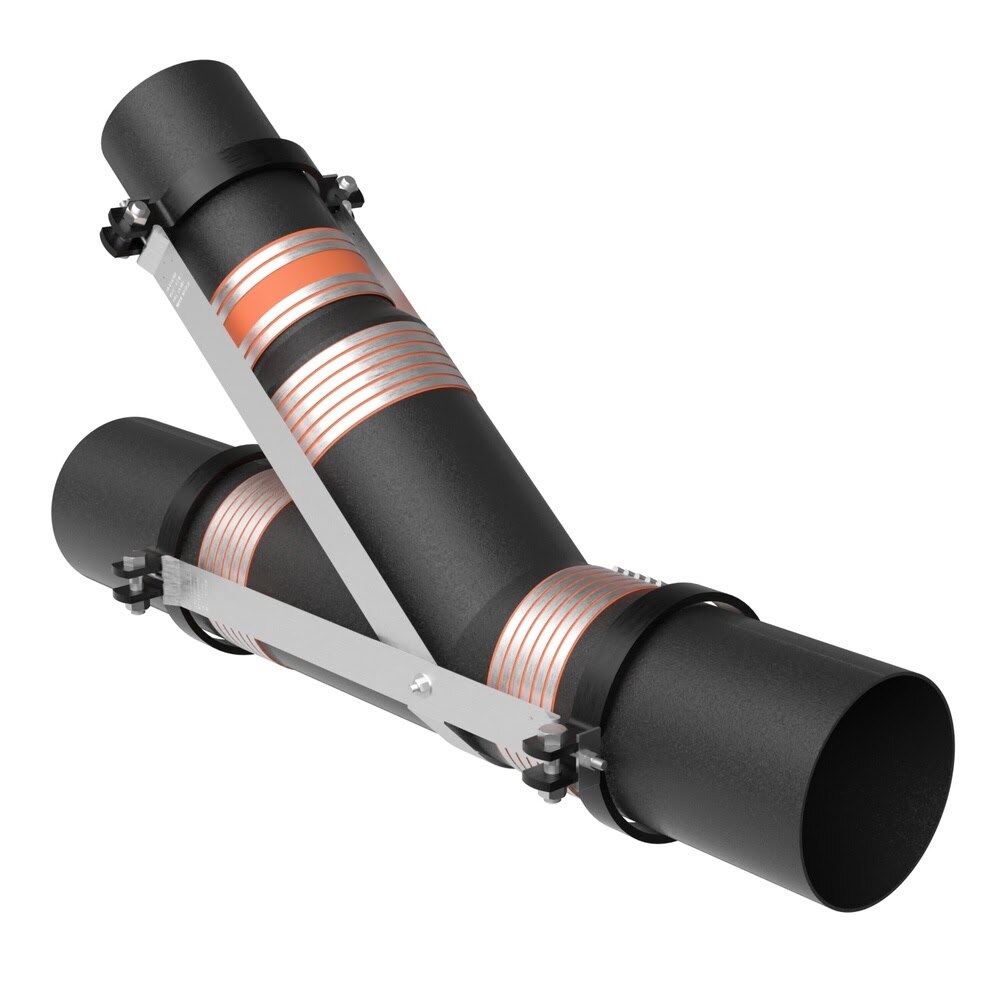

The HoldRite 117-WR Series no-hub wye restraint is designed to reinforce 15 in. x 12 in. cast iron DWV wye with reducer installations. It retains the fitting onto adjoining piping in mid-span runs using stainless steel bands, body, and screws with galvanized steel straps and heavy-duty pipe clamps.
HoldRite 117-15x12WR Includes
- (1) 15 in. x 12 in. No-Hub Wye Restraint with Reducer
HoldRite 117-15x12WR Features
- Designed to reinforce no-hub cast iron DWV installations
- Retains a 15 in. x 12 in. wye fitting with reducer onto adjoining piping
- Suitable for mid-span run applications
- Stainless steel body, band, and screw construction
- Uses 16 ga. galvanized cold-rolled steel straps
- Requires 60 ft/lbs. torque on pipe clamp bolts
- Designed in accordance with CISPI 301-18 and 310-18 installation guidance
HoldRite 117-15x12WR Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Application | Cast iron DWV no-hub installations |
| Nominal Size | 15 in. x 12 in. |
| Material | Stainless steel body, band, and screw |
| Strap Material | 16GA CRS galvanized steel |
| Clamp Material | Heavy duty black or galvanized steel pipe clamp |
| Torque | 60 ft/lbs. on pipe clamps |
| Item Length (in) | 30.25 |
| Item Width (in) | 17.5 |
| Item Height (in) | 14 |
| Shipping Weight | 61.3 lb |
| UPC | 671119803488 |
| Standards | CISPI 301-18, CISPI 310-18 |
Toolup Part # :
882016
