HoldRite 117-15x4WR Description

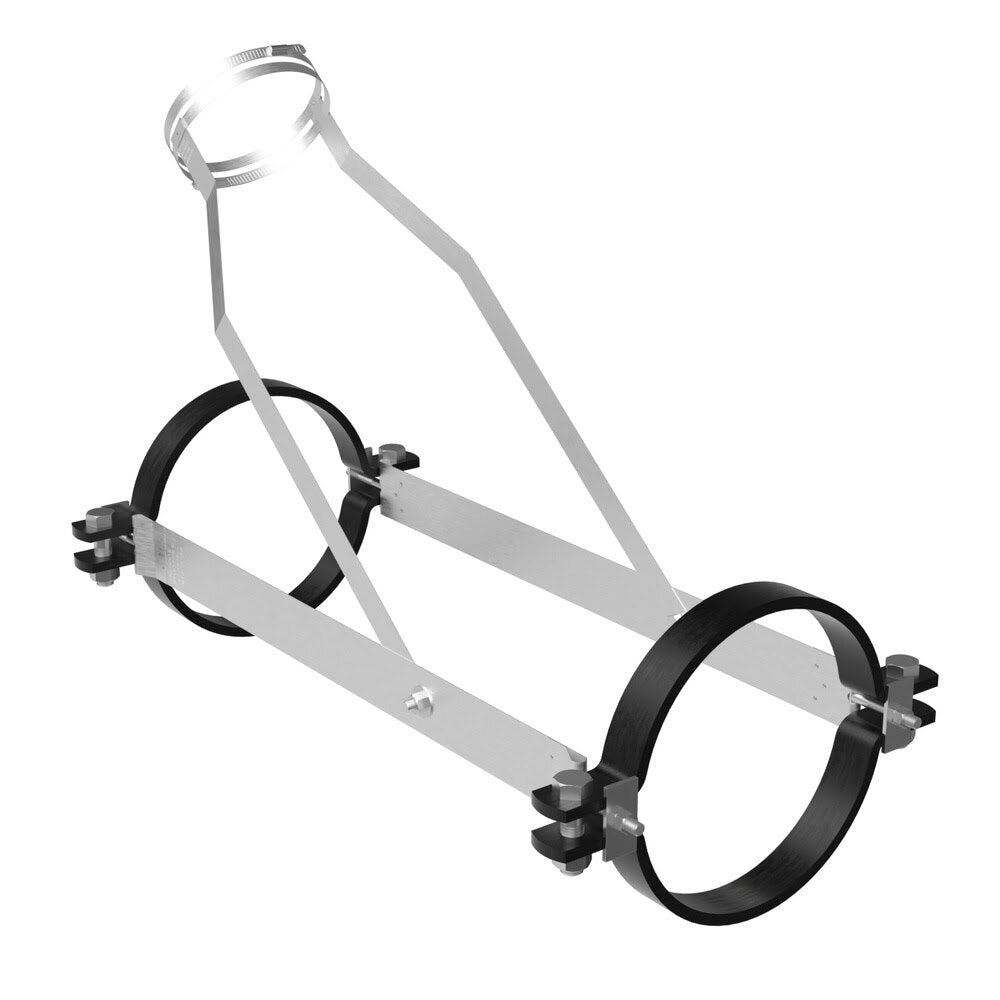

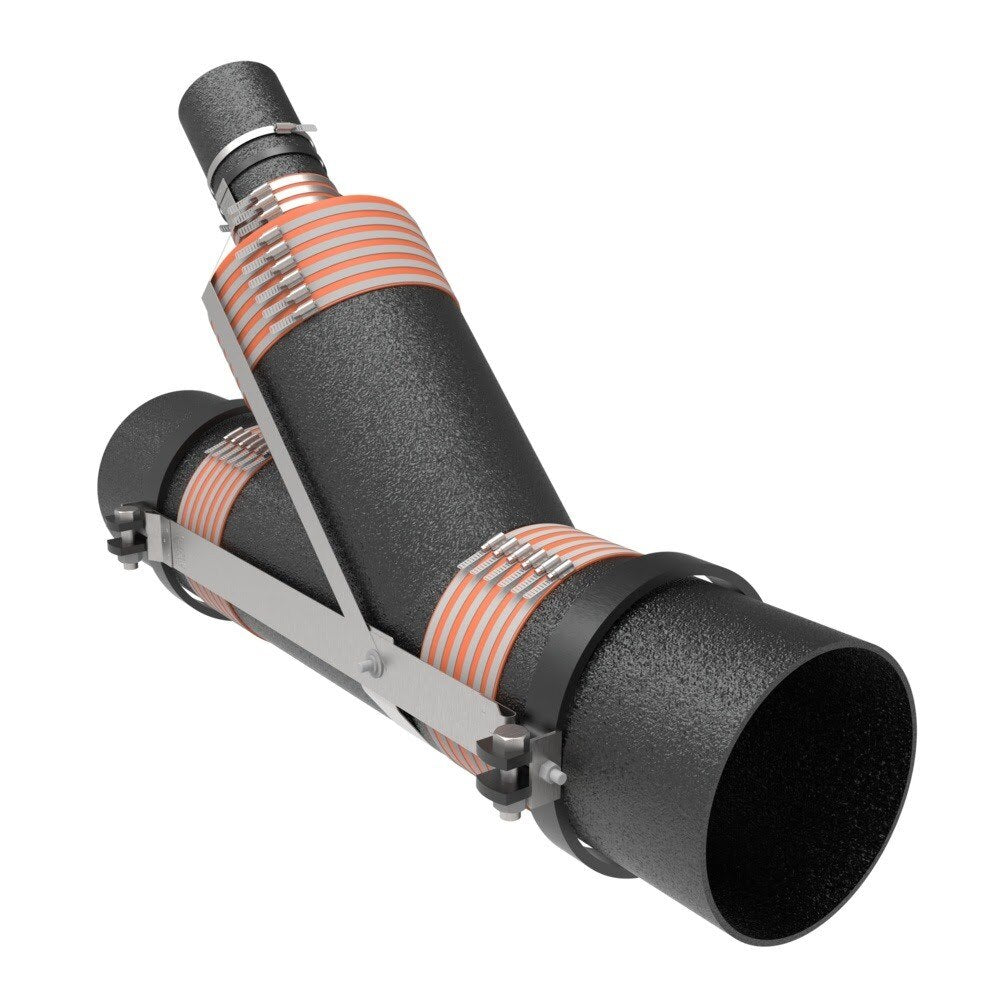

The HoldRite 117-15x4WR is a 15 in. x 4 in. no-hub wye restraint with reducer designed to reinforce cast iron DWV installations. Its stainless steel banding and heavy-duty restraint components help retain the wye fitting onto adjoining piping in mid-span runs.
HoldRite 117-15x4WR Includes
- (1) 15 in. x 4 in. No-Hub Wye Restraint Assembly
HoldRite 117-15x4WR Features
- Designed for 15 in. x 4 in. no-hub wye with reducer applications
- Reinforces cast iron DWV fittings in mid-span runs
- Helps retain the wye fitting onto adjoining piping
- Stainless steel body, band, and screw construction
- 16-gauge CRS galvanized steel strap with heavy-duty steel pipe clamps
- Minimum band torque is 60 in./lbs.
- Pipe clamp bolts require 60 ft./lbs. torque
HoldRite 117-15x4WR Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Fitting Restraint |
| Fitting Style | Wye with Reducer |
| Nominal Size | 15 in. x 4 in. |
| Application | Cast Iron DWV Installations |
| Installation Location | Mid-Span Runs |
| Body, Band and Screw Material | Stainless Steel |
| Strap Material | 16GA CRS Galvanized Steel |
| Clamp Material | Heavy-Duty Steel Pipe Clamp |
| Minimum Band Torque | 60 in./lbs. |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Product Length | 30.315 in. |
| Product Width | 17.087 in. |
| Product Height | 2.992 in. |
| Shipping Weight | 41.998 lbs. |
| UPC | 671119803440 |
Toolup Part # :
882029
WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. www.p65warnings.ca.gov
