HoldRite 117-15x4WR-G Description

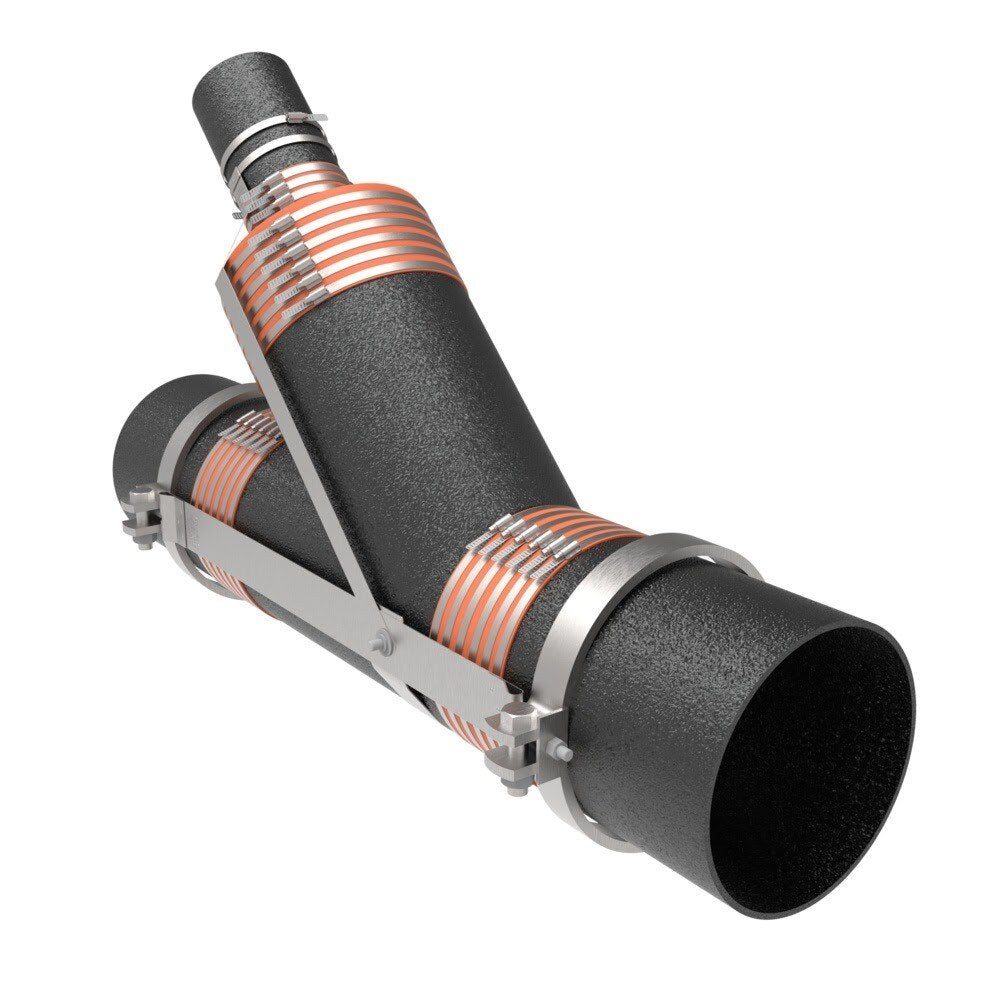

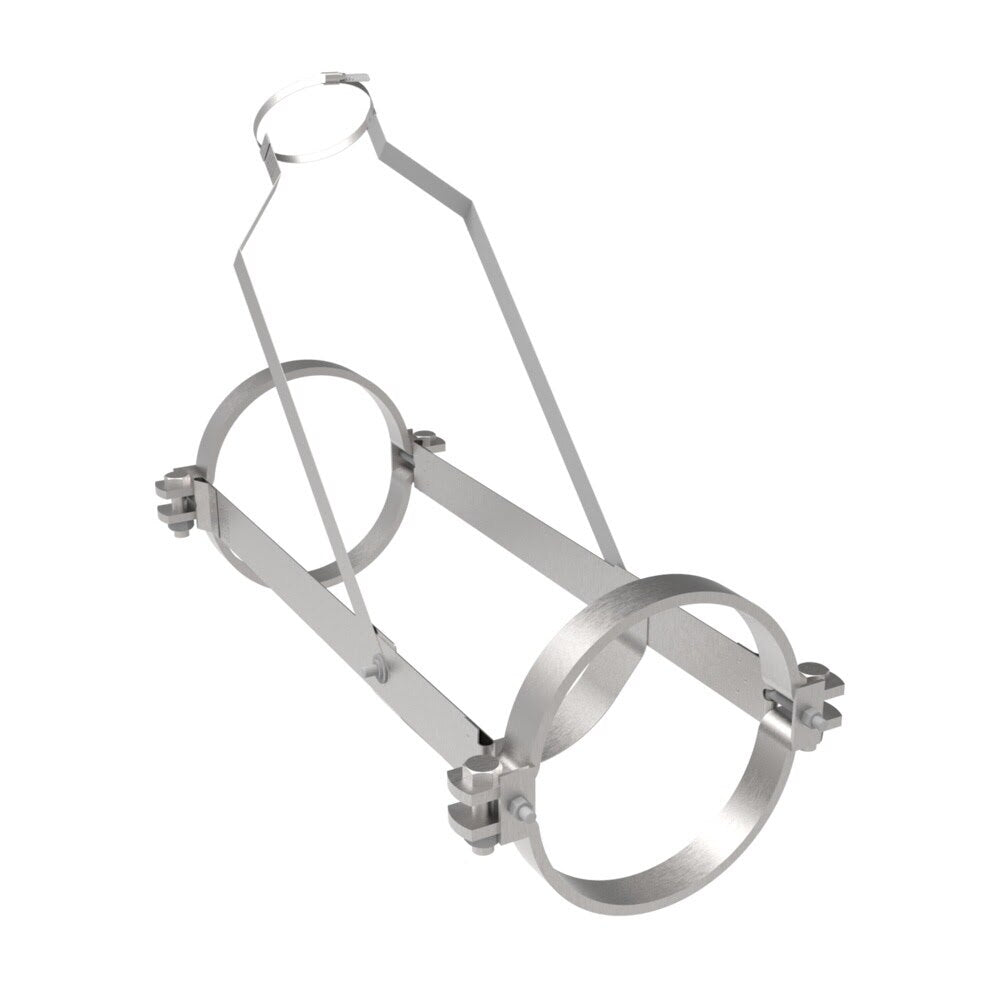

The HoldRite 117-15x4WR-G is a 15 in. x 4 in. no-hub wye restraint designed to reinforce cast iron DWV installations. This galvanized WR Series restraint helps retain the wye fitting onto adjoining piping in mid-span runs and is intended for installation in accordance with CISPI requirements.
HoldRite 117-15x4WR-G Includes
- (1) 15 in. x 4 in. No-Hub Wye Restraint Assembly
HoldRite 117-15x4WR-G Features
- Designed for 15 in. x 4 in. reducing no-hub wye fittings
- Reinforces no-hub cast iron DWV installations
- Retains the wye fitting onto adjoining piping in mid-span runs
- Galvanized steel strap construction
- Uses heavy-duty steel pipe clamps and straps
- Band torque requirement is 60 in./lbs. minimum
- Pipe clamp bolt torque requirement is 60 ft./lbs.
- Designed for use in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
- Thrust force restraint test data available upon request
HoldRite 117-15x4WR-G Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Size | 15 in. x 4 in. |
| Application | Reinforcing no-hub cast iron DWV installations |
| Installation Location | Mid-span runs |
| Finish | Galvanized |
| Strap Material | 16 ga CRS galvanized steel |
| Body, Band and Screw Material | Stainless steel |
| Clamp Material | Heavy-duty steel pipe clamp |
| Band Torque | 60 in./lbs. minimum |
| Pipe Clamp Bolt Torque | 60 ft./lbs. |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 33 lb |
