HoldRite 117-15x6R Description

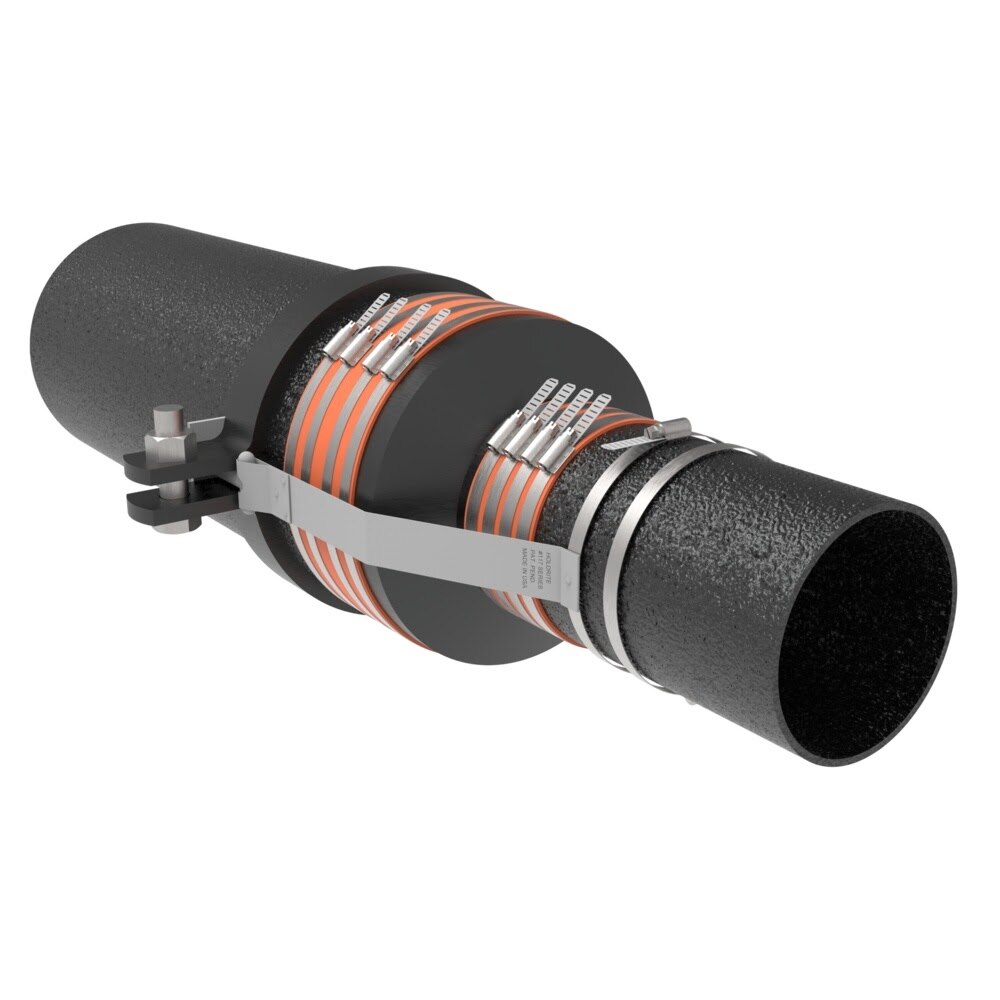

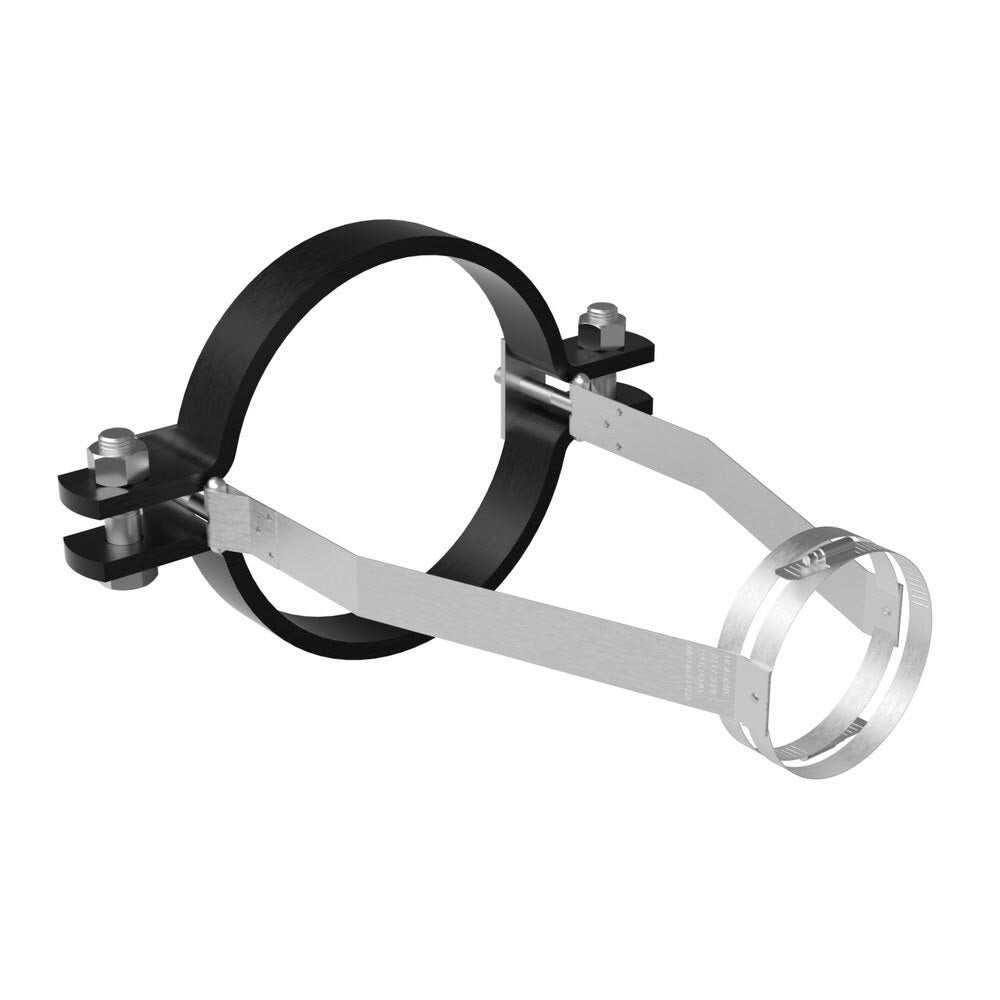

The HoldRite 117-15x6R is a 15 in. x 6 in. no-hub short reducer restraint designed to reinforce cast iron reducer installations in DWV systems. Part of the 117-R Series, it helps secure the fitting to adjoining piping for dependable thrust restraint in large-diameter no-hub applications.
HoldRite 117-15x6R Includes
- (1) 15 in. x 6 in. No-Hub Short Reducer Restraint
HoldRite 117-15x6R Features
- Designed for 15 in. x 6 in. no-hub short reducer applications
- Reinforces cast iron reducer installations in DWV systems
- Helps retain reducer fittings onto adjoining piping
- Large-diameter 117-R Series design uses heavy-duty steel pipe clamps and straps
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Sizes 10 in. to 15 in. require 60 ft./lbs. torque on pipe clamp bolts
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the CISPI Installation Handbook
HoldRite 117-15x6R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 15 x 6 |
| Application | Cast iron fitting reducers in DWV systems |
| Torque Requirement | 60 ft/lbs on pipe clamp bolts |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18 |
| Shipping Weight | 33 lb |
| UPC | 671119804089 |
Toolup Part # :
882079
