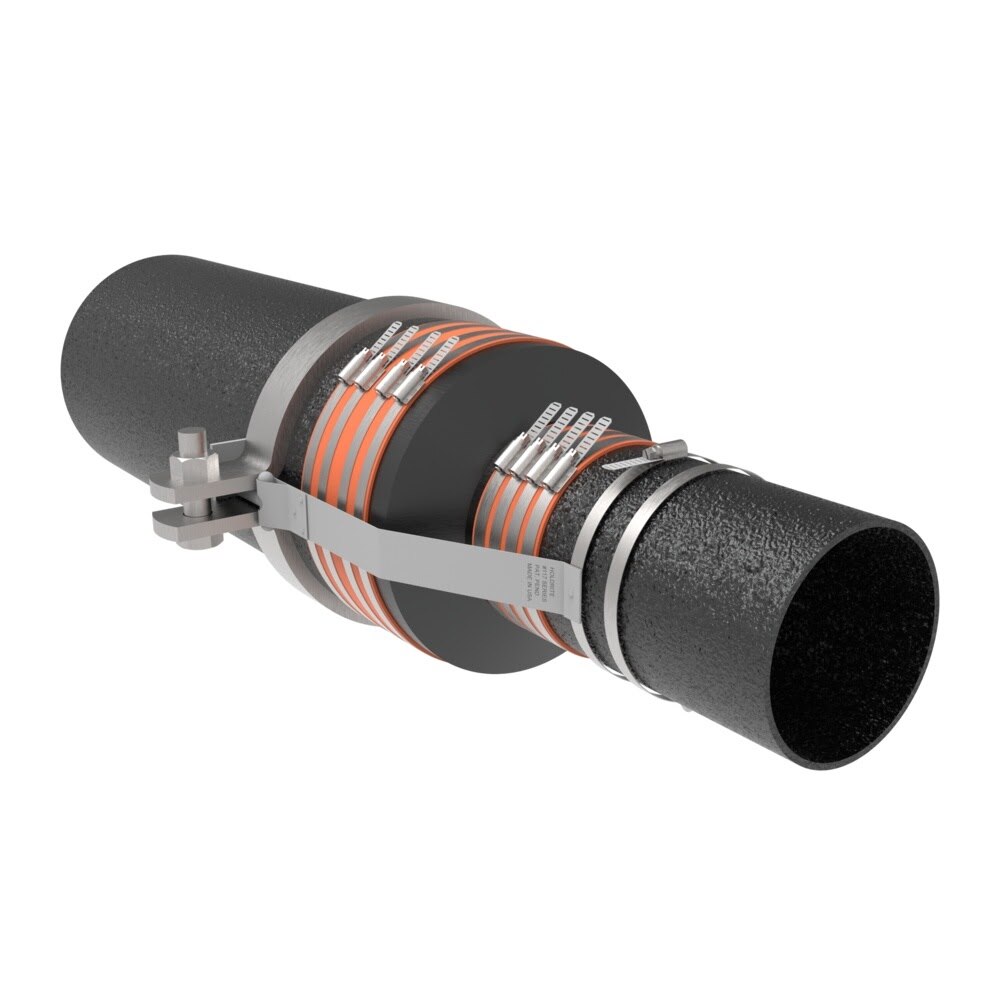

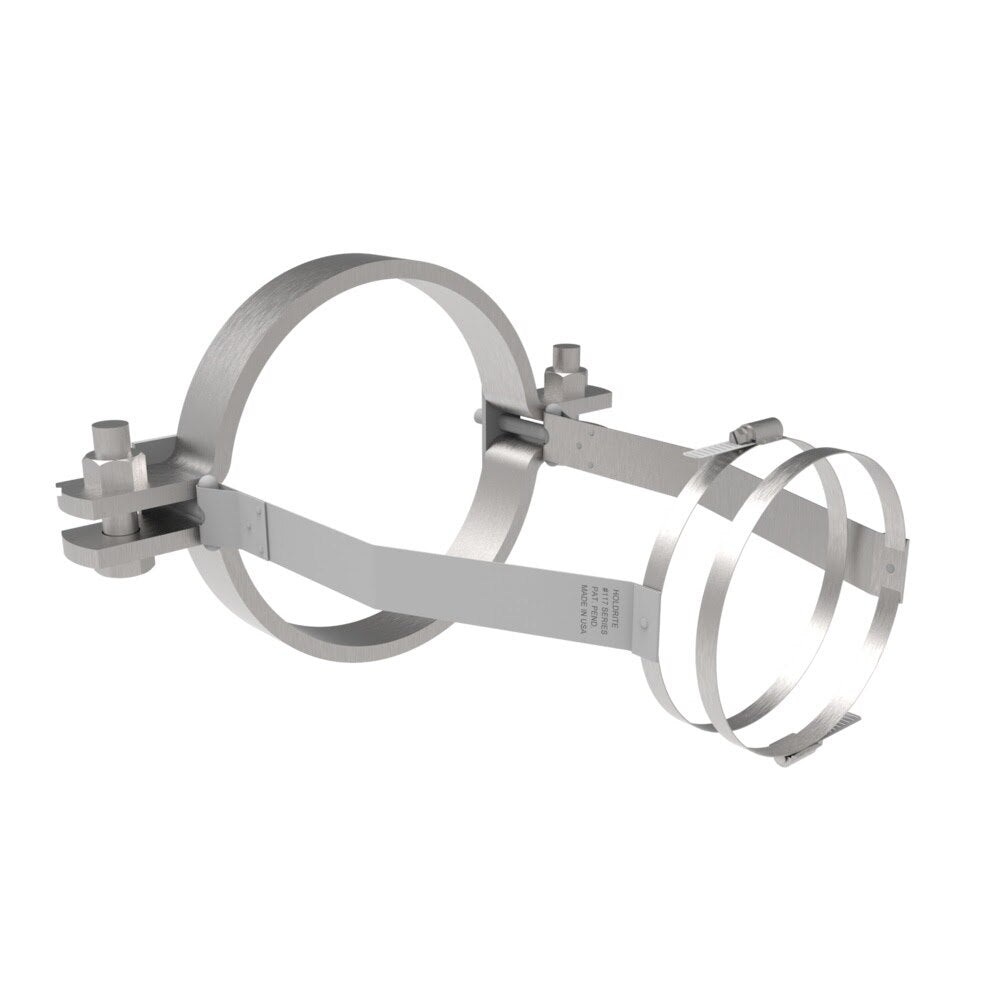

HoldRite 117-15x6R-G Description
The HoldRite 117-15x6R-G is a galvanized 15 in x 6 in no-hub short reducer fitting restraint designed to reinforce no-hub cast iron reducer installations. Built for large-diameter applications with heavy-duty strap and clamp hardware, it helps retain the reducer fitting onto adjoining piping when installed according to manufacturer instructions.
HoldRite 117-15x6R-G Includes
- (1) 15 in x 6 in galvanized no-hub short reducer fitting restraint
- (2) Galvanized steel straps with T-bolts
HoldRite 117-15x6R-G Features
- Designed to reinforce no-hub cast iron short reducer installations
- Galvanized steel construction helps resist corrosion
- Sized for 15 in x 6 in reducer applications
- Heavy-duty pipe clamp and strap design for large-diameter installations
- Helps retain the reducer fitting onto adjoining piping
- Intended for installation in accordance with CISPI 301-18 and CISPI 310-18 guidance
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when properly installed
- Requires 60 ft/lbs torque on pipe clamp bolts for 10 in to 15 in sizes
HoldRite 117-15x6R-G Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 15 in x 6 in |
| Finish | Galvanized |
| Strap Material | 24 ga CRS galvanized steel |
| Clamp Material | Heavy-duty galvanized steel pipe clamp |
| Hardware Material | Standard |
| Application | No-hub cast iron fitting reducers |
| Torque Requirement | 60 ft/lbs on pipe clamp bolts |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 33 lb |
Toolup Part # :
882087
