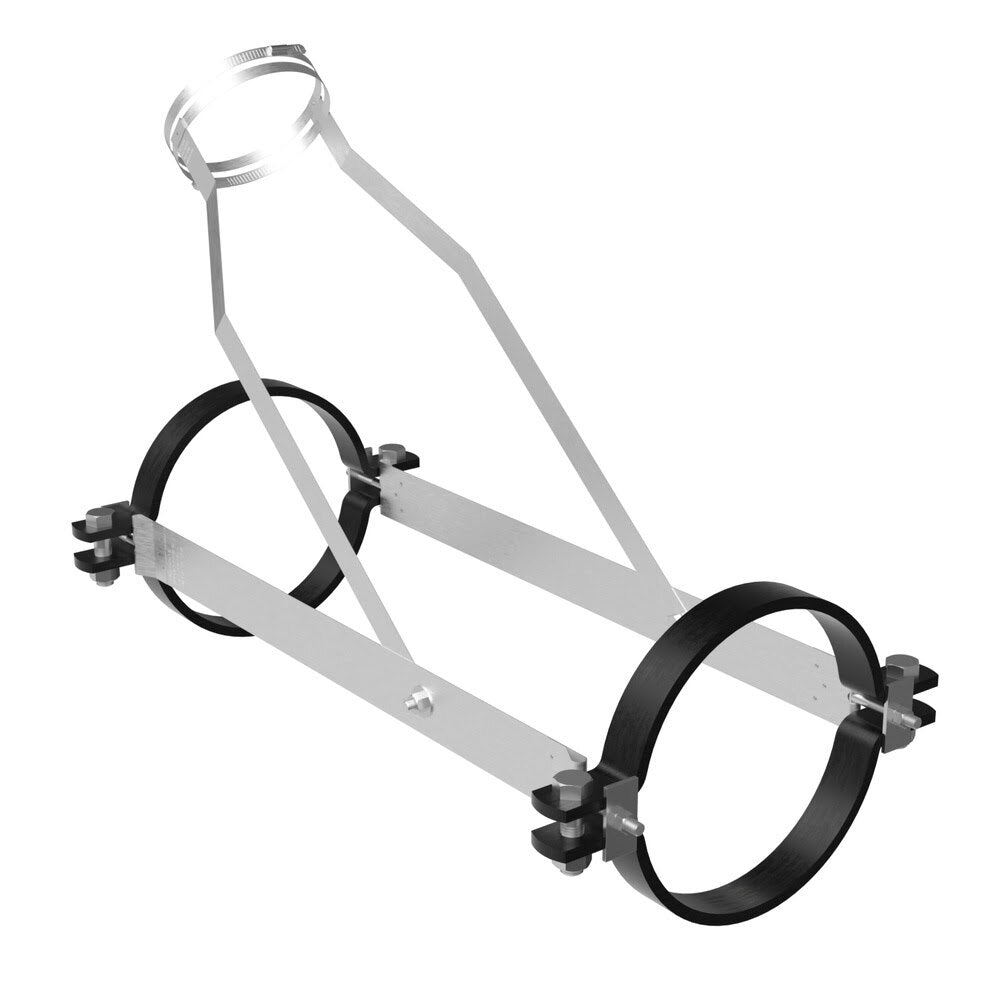

HoldRite 117-15x6WR Description

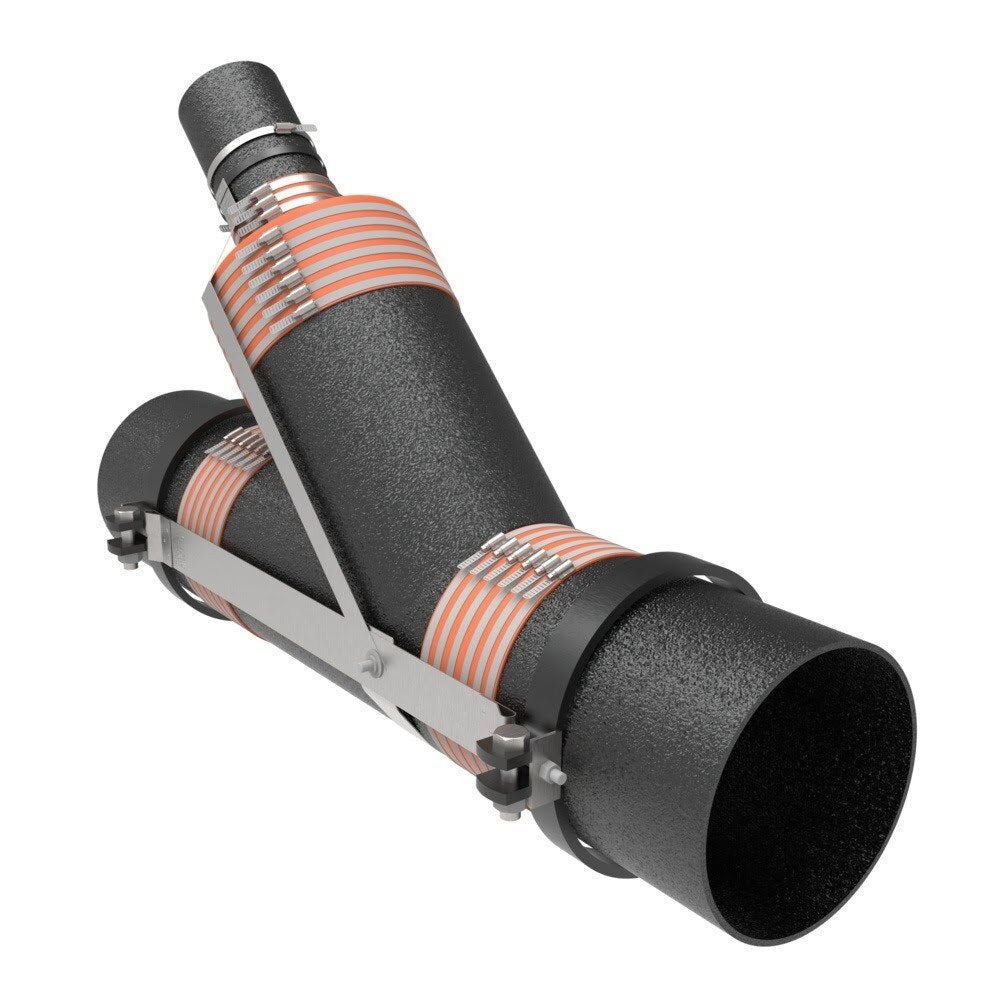

The HoldRite 117-WR Series 15 in. x 6 in. no-hub wye restraint is designed to reinforce cast iron wye installations by retaining the fitting to adjoining piping in mid-span runs. Its heavy-duty restraint design helps support large DWV no-hub applications in accordance with CISPI installation guidance.
HoldRite 117-15x6WR Includes
- (1) 15 in. x 6 in. No-Hub Wye Restraint with Reducer
HoldRite 117-15x6WR Features
- Designed to reinforce no-hub cast iron wye installations
- Retains the wye fitting to adjoining piping in mid-span runs
- 117-WR Series design for large DWV no-hub fitting restraint applications
- Stainless steel body, band, and screw construction
- Heavy-duty steel pipe clamps and strap assembly
- Minimum 60 in./lbs. band torque and 60 ft./lbs. pipe clamp torque
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-15x6WR Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Fitting Restraint |
| Fitting Style | Wye with Reducer |
| Nominal Size | 15 in. x 6 in. |
| Application | Reinforcing no-hub cast iron wye installations in mid-span runs |
| Body, Band and Screw Material | Stainless steel |
| Strap Material | 16 ga. CRS galvanized steel |
| Clamp Type | Heavy-duty steel pipe clamp |
| Minimum Band Torque | 60 in./lbs. |
| Pipe Clamp Torque | 60 ft./lbs. |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 33 lb |
