HoldRite 117-15x6WR-G Description

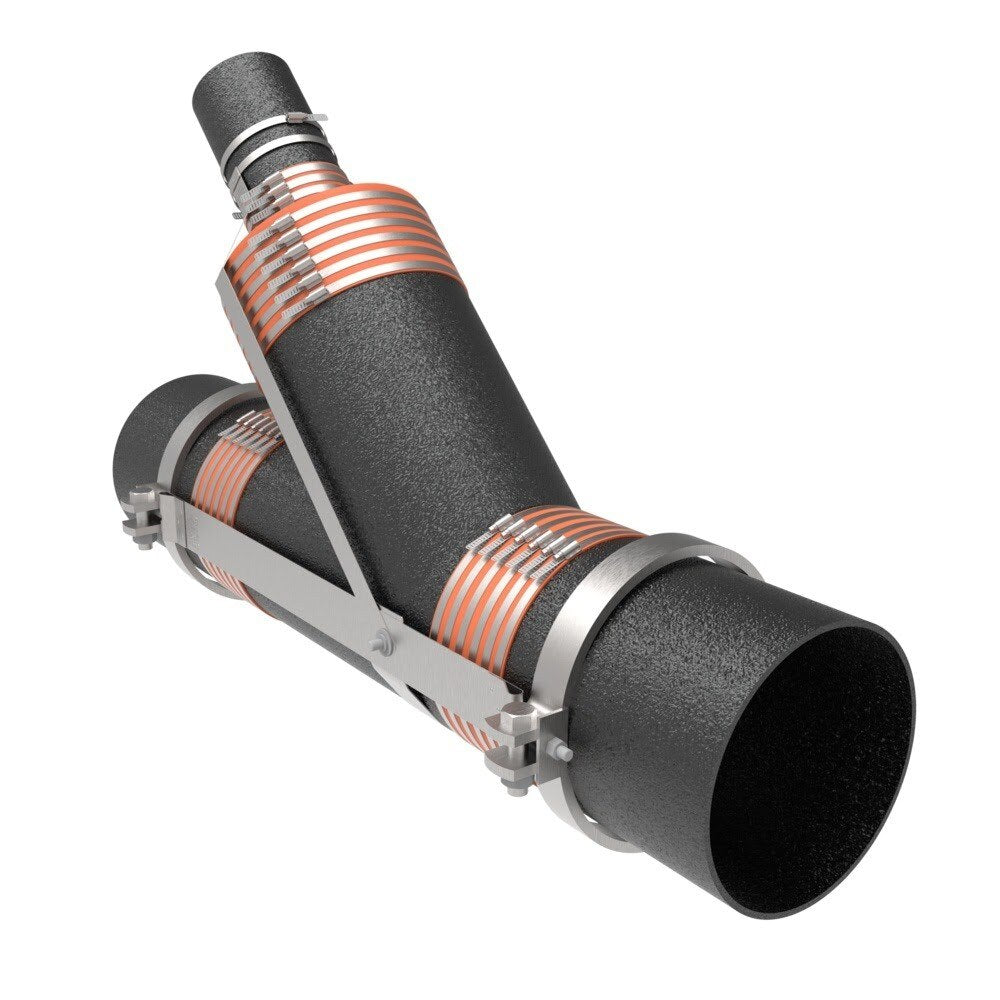

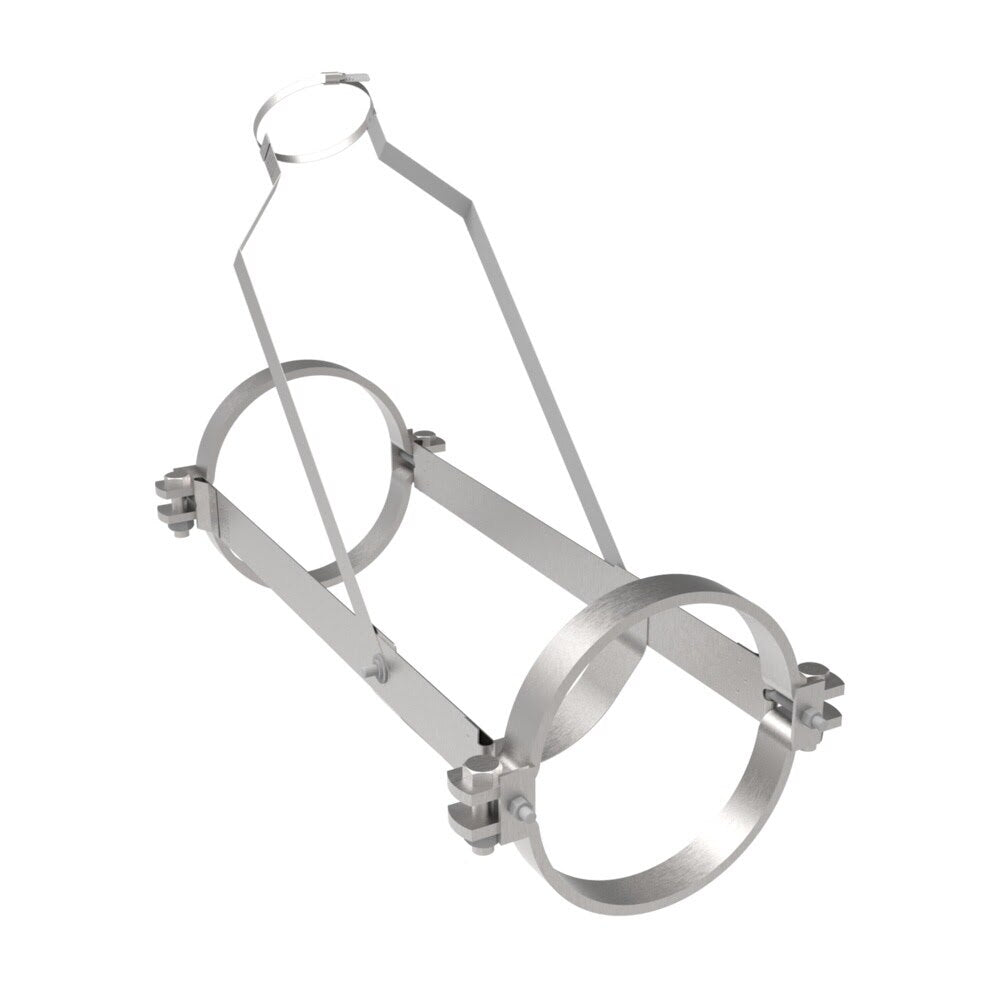

The HoldRite 117-WR Series 15 in. x 6 in. no-hub wye restraint is designed to reinforce cast iron no-hub installations by retaining the wye fitting to adjoining piping in mid-span runs. This galvanized restraint assembly uses heavy-duty pipe clamps and straps for a secure installation.
HoldRite 117-15x6WR-G Includes
- (1) 15 in. x 6 in. No-Hub Wye Restraint with Galvanized Strap
HoldRite 117-15x6WR-G Features
- Designed for 15 in. x 6 in. no-hub wye with reducer applications
- Reinforces cast iron no-hub installations
- Retains the wye fitting to adjoining piping in mid-span runs
- Uses a 16 GA cold rolled steel galvanized strap
- Body, band, and screw components are stainless steel
- Heavy-duty steel pipe clamps support larger diameter applications
- Minimum band torque is 60 in./lbs.
- Pipe clamp torque requirement is 60 ft./lbs.
- Designed in accordance with referenced CISPI installation standards
HoldRite 117-15x6WR-G Specifications
| Brand | HoldRite |
| Series | 117-WR |
| Product Type | No-Hub Wye Restraint with Reducer |
| Nominal Size | 15 in. x 6 in. |
| Finish | Galvanized |
| Strap Material | 16GA CRS galvanized steel |
| Body, Band and Screw Material | Stainless steel |
| Clamp Material | Heavy duty steel pipe clamp |
| Application | Cast iron no-hub installations |
| Band Torque Minimum | 60 in./lbs. |
| Pipe Clamp Torque | 60 ft./lbs. |
| Product Length (in) | 31 |
| Product Width (in) | 17.3 |
| Product Height (in) | 14.1 |
| Shipping Weight (lb) | 44.9 |
