HoldRite 117-15x8R Description

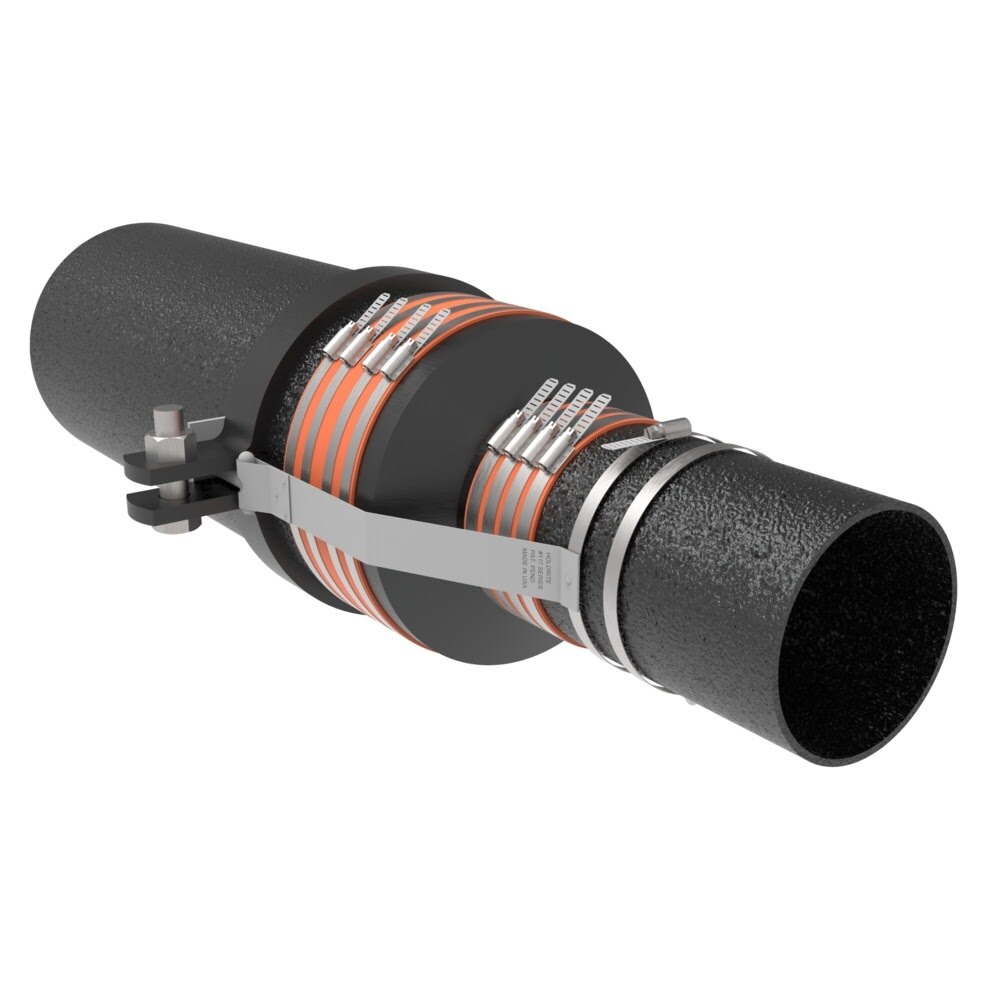

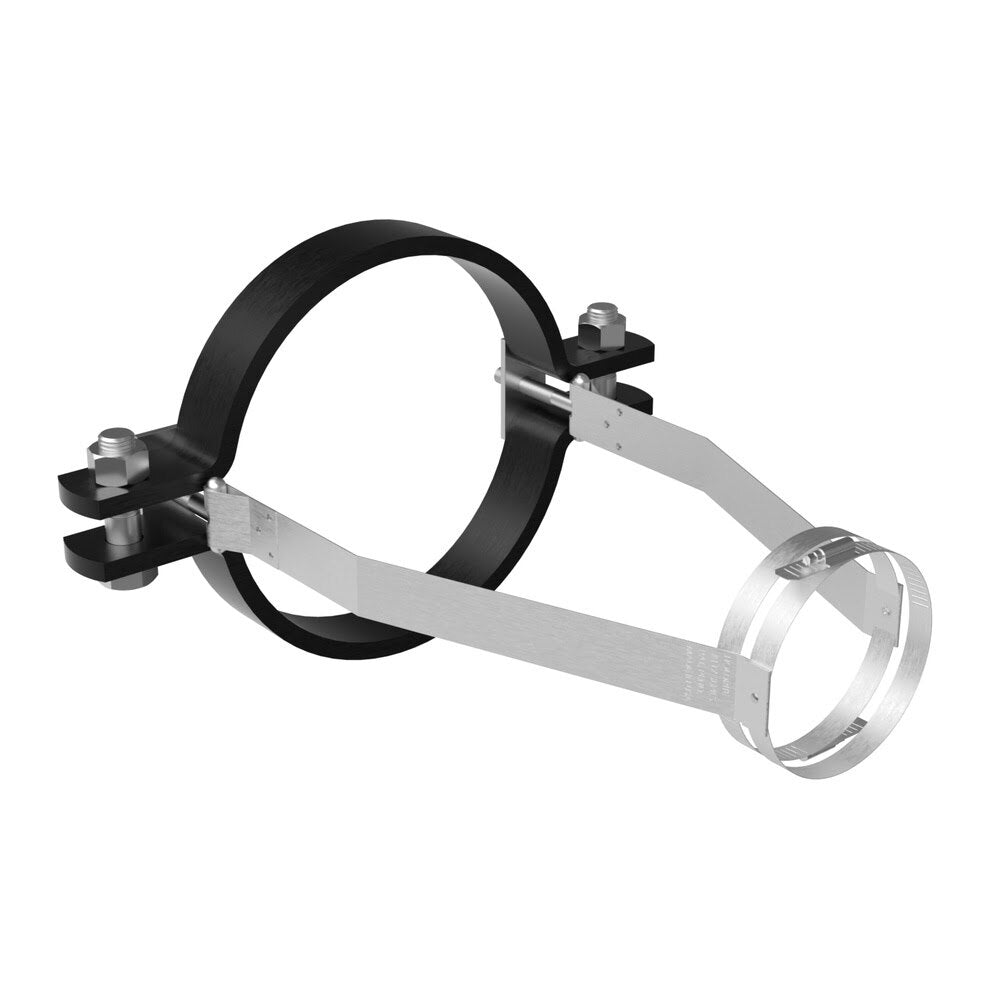

The HoldRite 117-15x8R is a 117-R Series 15 x 8 in no-hub short reducer restraint designed to reinforce no-hub cast iron reducer installations in DWV systems. It uses a heavy-duty pipe clamp and galvanized steel strap assembly to help retain the reducer fitting to adjoining piping in large-diameter applications.
HoldRite 117-15x8R Includes
- (1) 15 x 8 in No-Hub Short Reducer Restraint
HoldRite 117-15x8R Features
- Designed to reinforce no-hub cast iron reducer installations
- Helps retain reducer fittings to adjoining piping
- Sized for 15 x 8 reducer applications
- Uses 24 gauge CRS galvanized steel strap material
- Heavy-duty steel pipe clamp design for large-diameter sizes
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Pipe clamp bolts require 60 ft/lbs torque for 10 in to 15 in sizes
HoldRite 117-15x8R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 15 x 8 |
| Application | No-hub cast iron reducer installations in DWV systems |
| Strap Material | 24GA CRS Galvanized Steel |
| Clamp Material | Heavy Duty Black or Galvanized Steel Pipe Clamp |
| Hardware Material | Standard |
| Pipe Clamp Bolt Torque | 60 ft/lbs |
| Thrust Pressure Rating | 50 ft head of water pressure |
| Each Length (in) | 20.5 |
| Each Width (in) | 16.3 |
| Each Height (in) | 10.9 |
| Each Shipping Weight (lb) | 20.5 |
Toolup Part # :
882139
