HoldRite 117-3CE Description

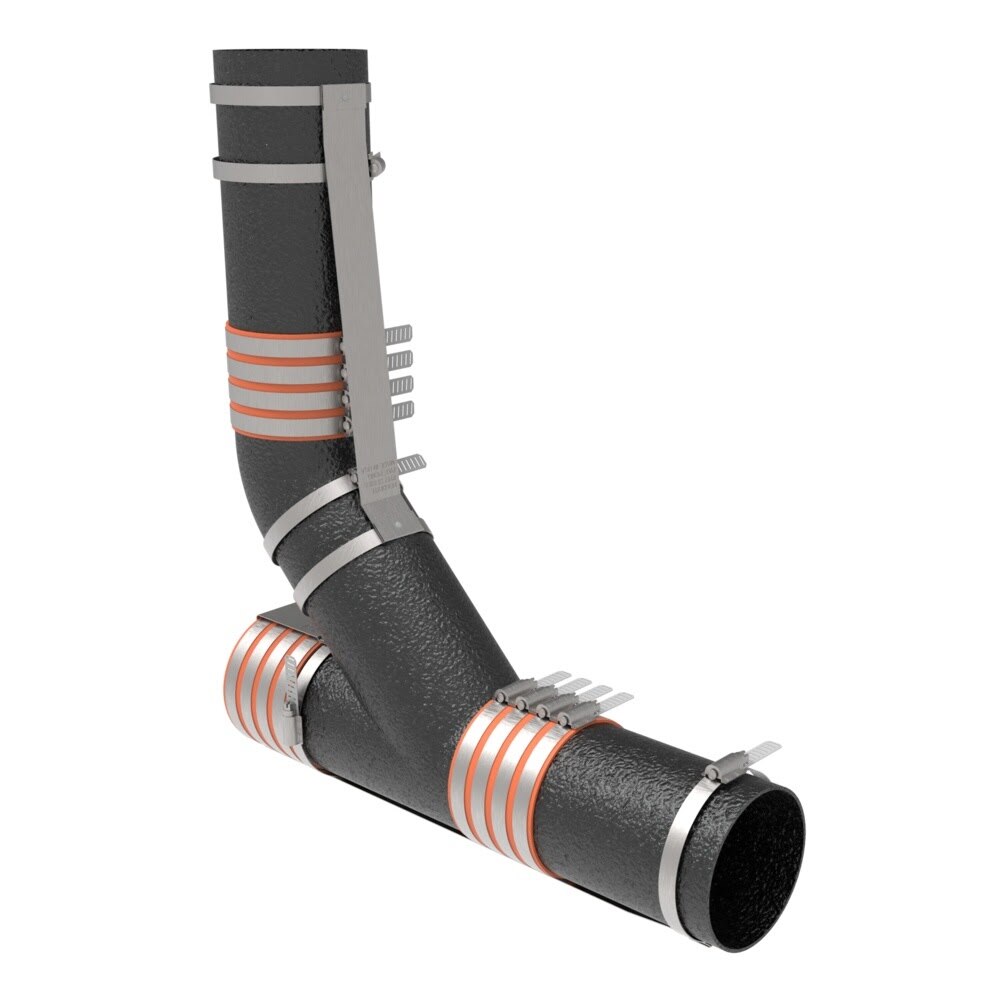

The HoldRite 117-3CE is a 2-3 in. no-hub combo or wye end-of-line restraint designed to reinforce no-hub cast iron DWV installations. It helps retain the fitting onto adjoining piping in end-of-line applications when a blind plug or cleanout is installed, using galvanized steel components and stainless steel bands for secure performance.
HoldRite 117-3CE Includes

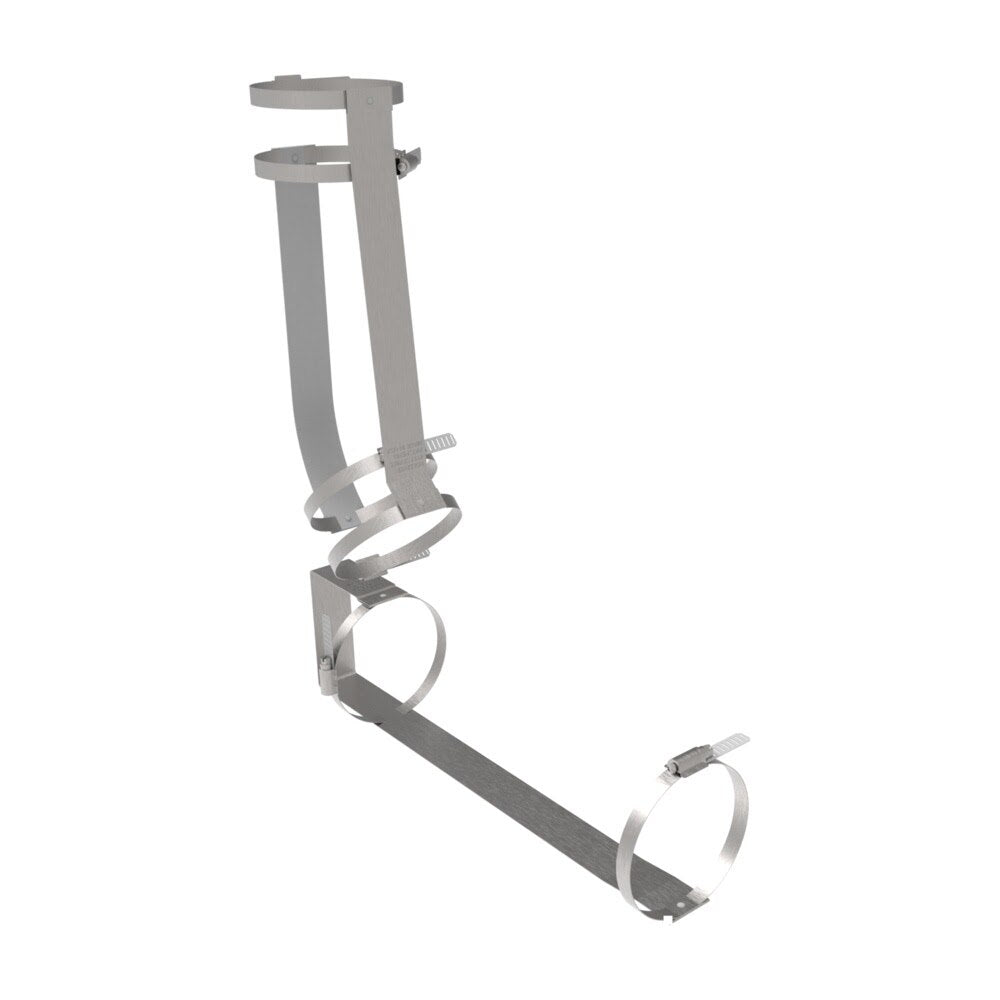

- (1) 2-3 in. No-Hub Combo or Wye End-of-Line Restraint
HoldRite 117-3CE Features
- Designed to reinforce no-hub cast iron DWV installations
- Retains combo or wye fittings onto adjoining piping at the end of the line
- Suitable for installations using a blind plug or cleanout
- Constructed with 24 ga. CRS galvanized steel strap components
- Uses stainless steel body, band, and screw hardware
- Bands require 60 in./lbs. minimum torque
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-3CE Specifications
| Series | 117-CE Series |
| Size | 2-3 in. |
| Fitting Type | Combo or Wye |
| Position | End of line |
| Application | No-hub cast iron DWV installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band, and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Product Length (in) | 14 |
| Product Width (in) | 9.5 |
| Product Height (in) | 0.78 |
| Shipping Weight (lb) | 1.3 |
