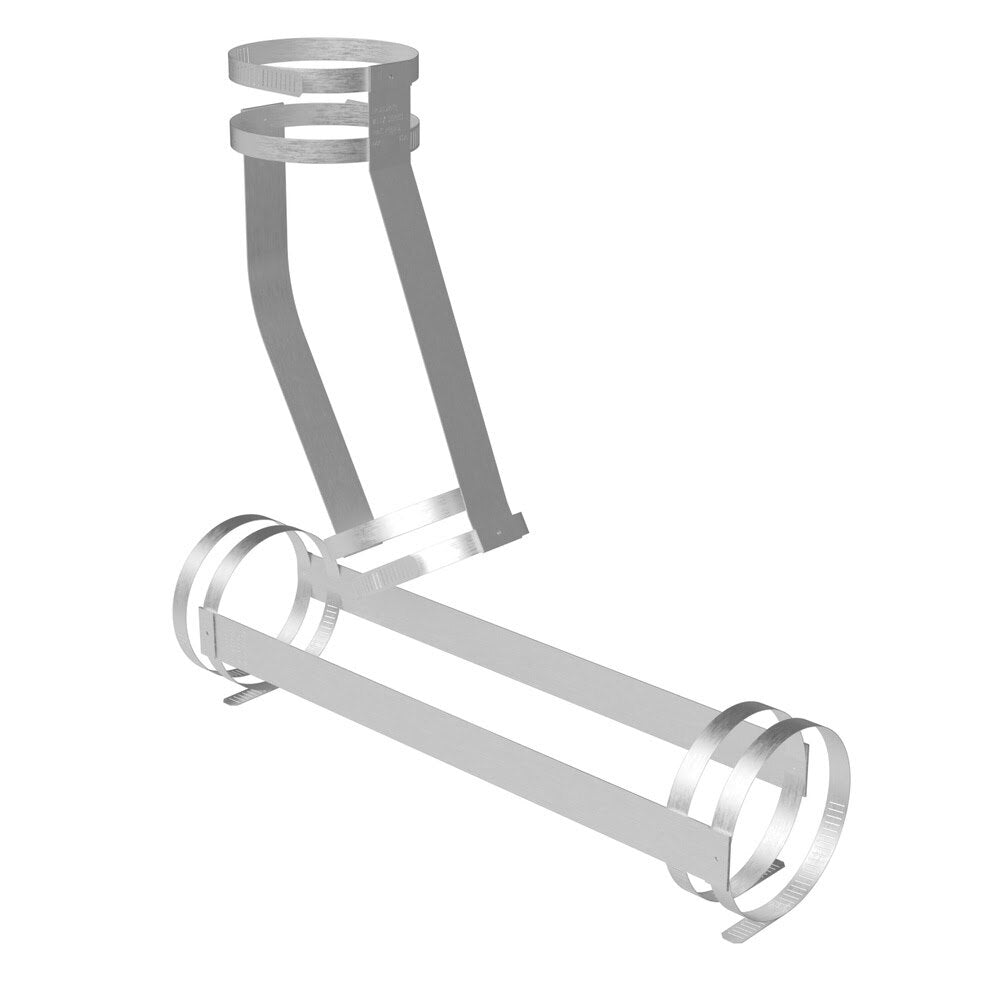

HoldRite 117-3CM Description

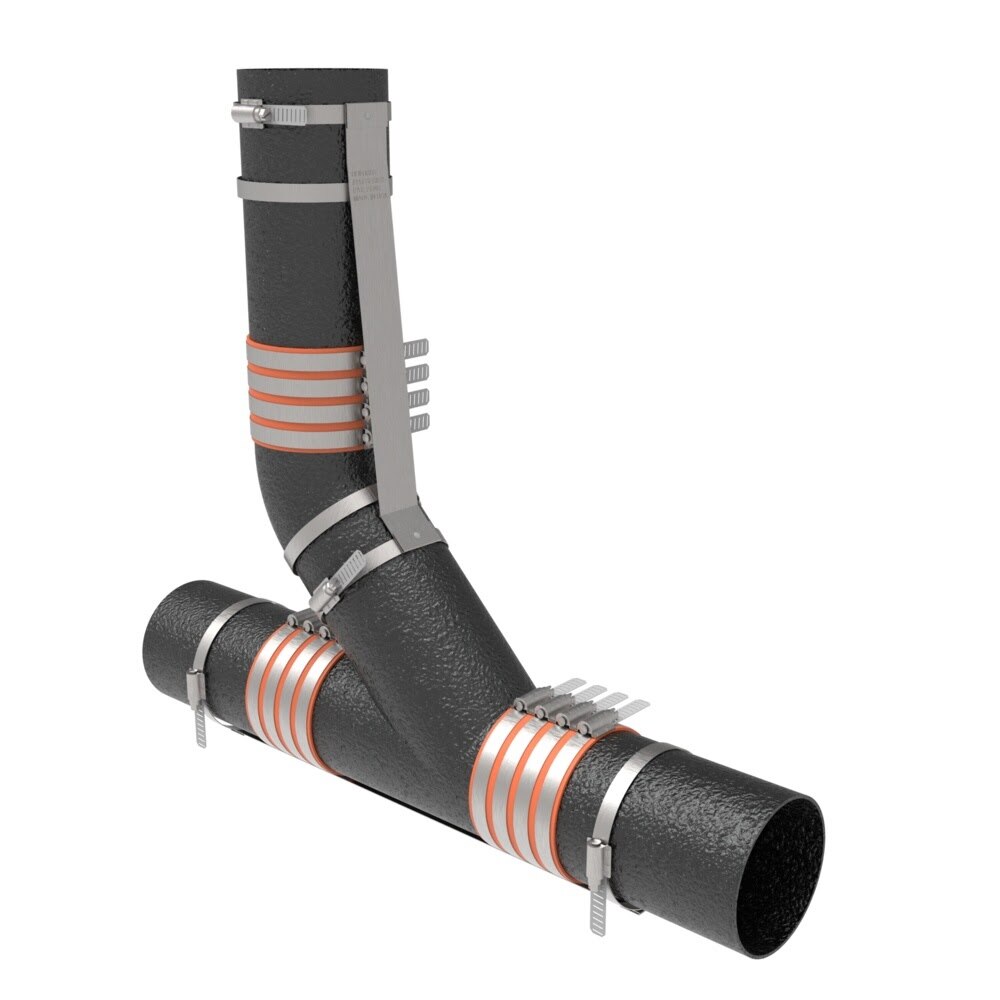

HoldRite 117-3CM is a 2-3 in. no-hub combo midstream restraint designed to reinforce DWV cast iron installations. Built with galvanized steel straps and stainless steel bands, it helps retain combo or wye with 1/8 bend fittings to adjoining piping and, when installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-3CM Includes
- (1) 2-3 in. No-Hub Combo Restraint Midstream
HoldRite 117-3CM Features
- Designed to reinforce no-hub cast iron installations
- Midstream restraint for combo or wye with 1/8 bend fittings
- Helps retain fittings to adjoining piping
- 24 ga. CRS galvanized steel strap construction
- Stainless steel body, band, and screw materials
- Bands require a minimum tightening torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Complies with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-3CM Specifications
| Series | 117-CM |
| Product Type | No-Hub Fitting Restraint |
| Position | Midstream |
| Fitting Size | 2-3 in. |
| Application | DWV cast iron installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 16.5 |
| Product Width (in) | 6.6 |
| Product Height (in) | 0.683 |
| Product Weight (lb) | 1.45 |
| Case Quantity | 6 |
