HoldRite 117-3LL Description

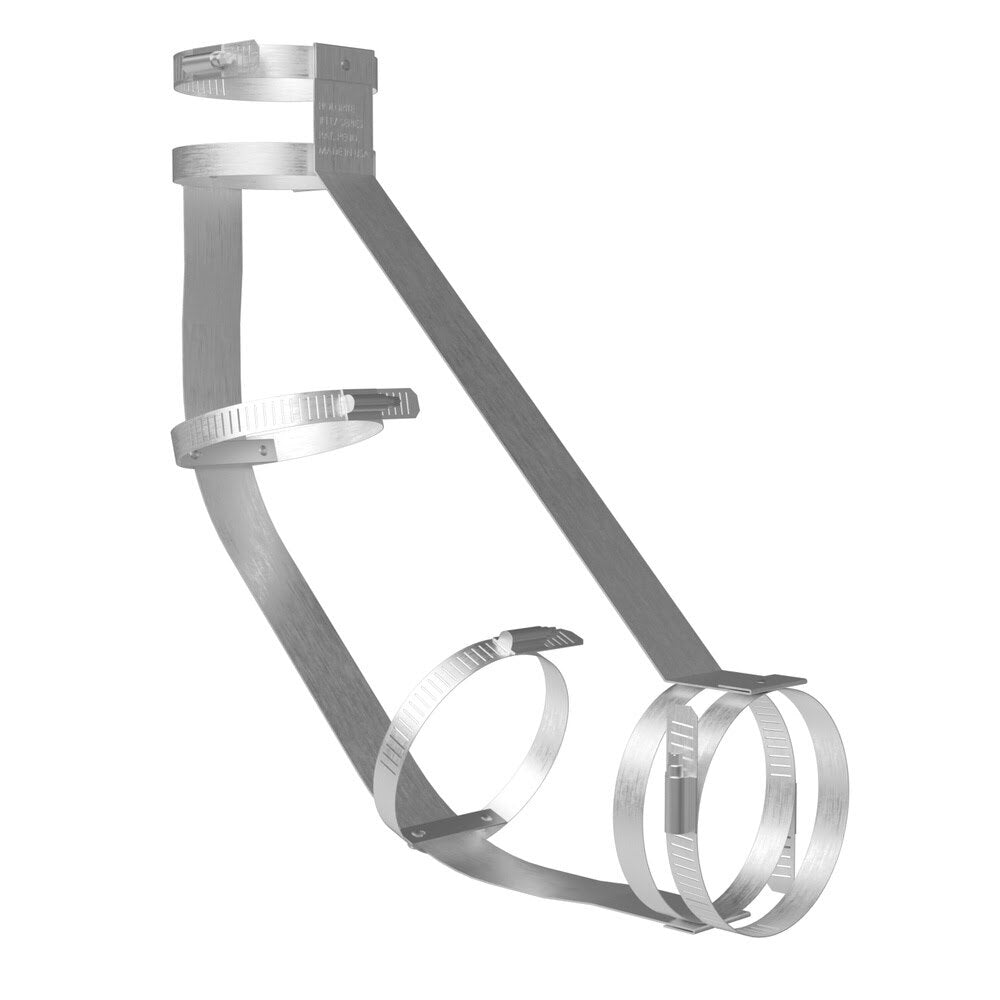

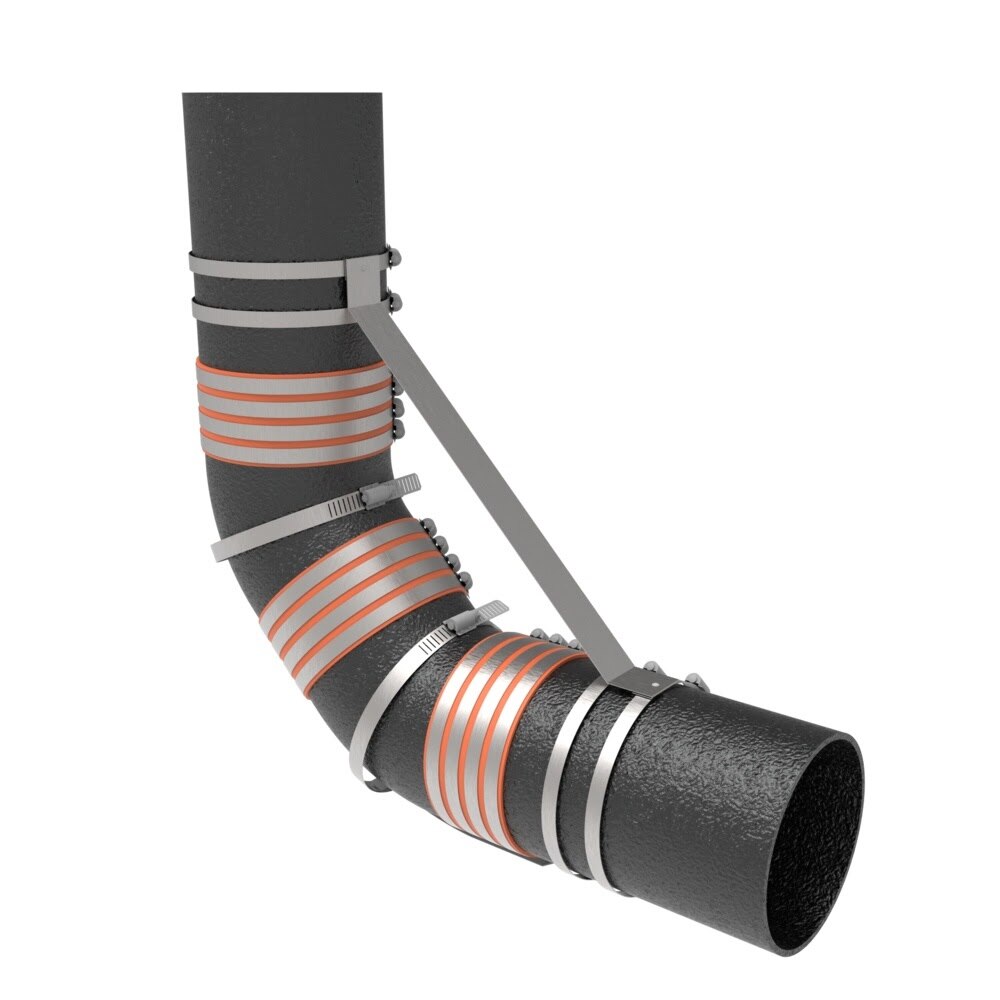

The HoldRite 117-3LL double no-hub bend restraint helps retain two 45 Degree bends on adjoining DWV piping to create a secure 90 Degree change in direction. Built with galvanized straps and stainless steel band clamps, it provides durable support for no-hub fitting restraint applications.
HoldRite 117-3LL Includes
- (1) Double 45 Degree No-Hub Bend Restraint
- (2) Galvanized Straps
- (6) Stainless Steel Band Clamps
HoldRite 117-3LL Features
- Designed to retain two 45 Degree bends on adjoining no-hub piping
- Creates a secure 90 Degree bend assembly
- Includes two galvanized straps and six stainless steel band clamps
- Straps are made from 24 gauge cold rolled steel with galvanized finish
- Band clamps feature stainless steel body, band and screw
- Requires a minimum band torque of 60 in./lbs.
HoldRite 117-3LL Specifications
| Series | 117-LL |
| Product Type | Double no-hub bend restraint |
| Application | DWV testing |
| Bend Configuration | Double 45 Degree 1/8 bend |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band and screw |
| Minimum Torque | 60 in./lbs. |
| Each Length (in) | 25.25 |
| Each Width (in) | 7.5 |
| Each Height (in) | 7.5 |
| Each Shipping Weight (lb) | 1.325 |
| Case Quantity | 12 |
Toolup Part # :
882842
