HoldRite 117-4BP Description

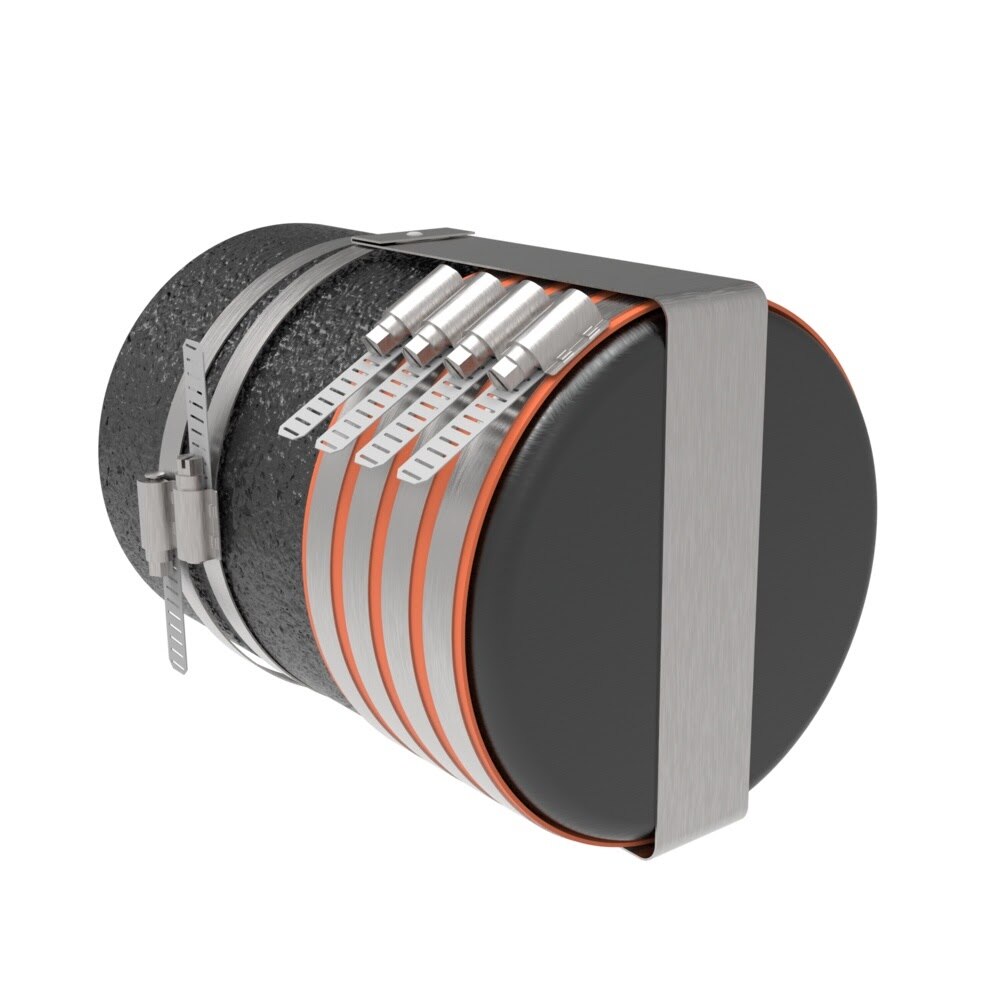

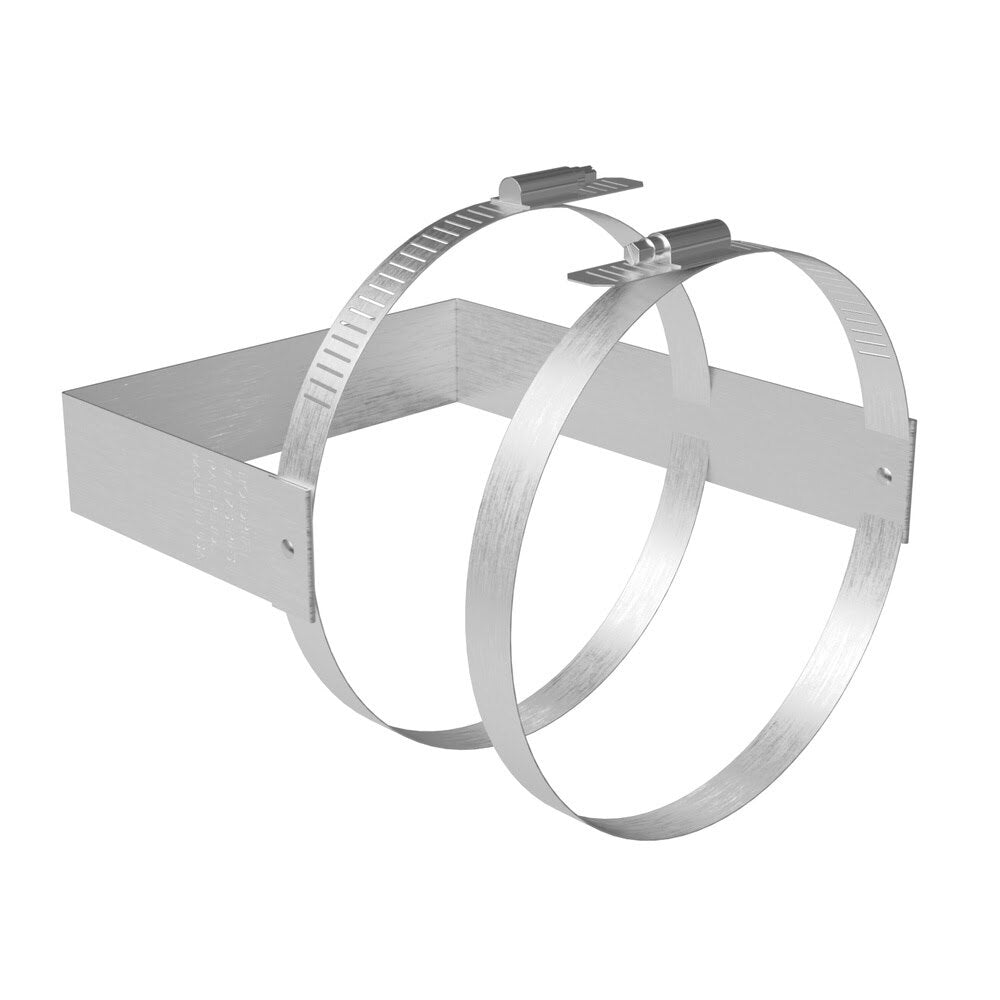

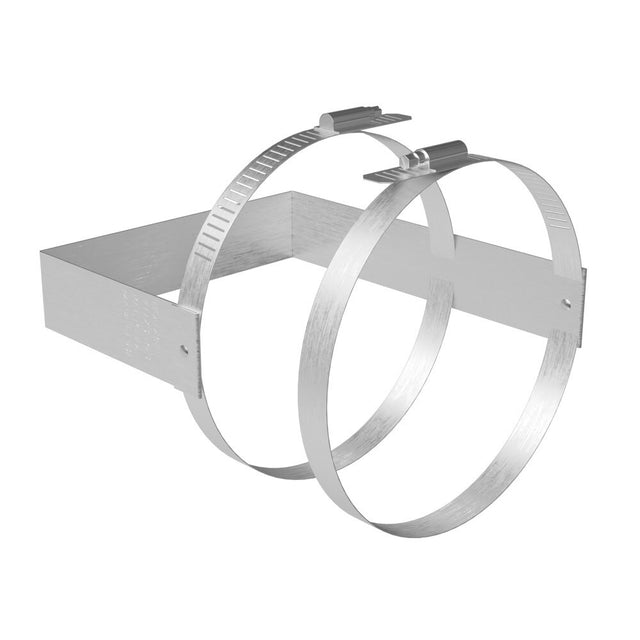

The HoldRite 117-4BP 4 in. no-hub blind plug and cap restraint is designed to reinforce no-hub cast iron installations during DWV testing. Built with a 24-gauge galvanized CRS steel strap and stainless steel band hardware, it helps retain plugs to adjoining piping and, when installed correctly, provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-4BP Includes
- (1) 4 in. No-Hub Blind Plug and Cap Restraint
HoldRite 117-4BP Features
- Designed to reinforce no-hub cast iron blind plug and cap installations
- Fits 4 in. applications in the 117-BP Series
- 24-gauge CRS galvanized steel strap for durable support
- Stainless steel body, band, and screw hardware
- Bands require 60 in/lbs minimum torque
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Suitable for DWV testing applications
HoldRite 117-4BP Specifications
| Series | 117-BP |
| Product Type | No-Hub Blind Plug and Cap Restraint |
| Nominal Size | 4 in. |
| Application | Blind plugs and caps in no-hub cast iron installations |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band, and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18 and CISPI 310-18 |
| Product Length (in) | 7.5 |
| Product Width (in) | 8.75 |
| Product Height (in) | 0.679 |
| Product Weight (lb) | 0.595 |
Toolup Part # :
883761
