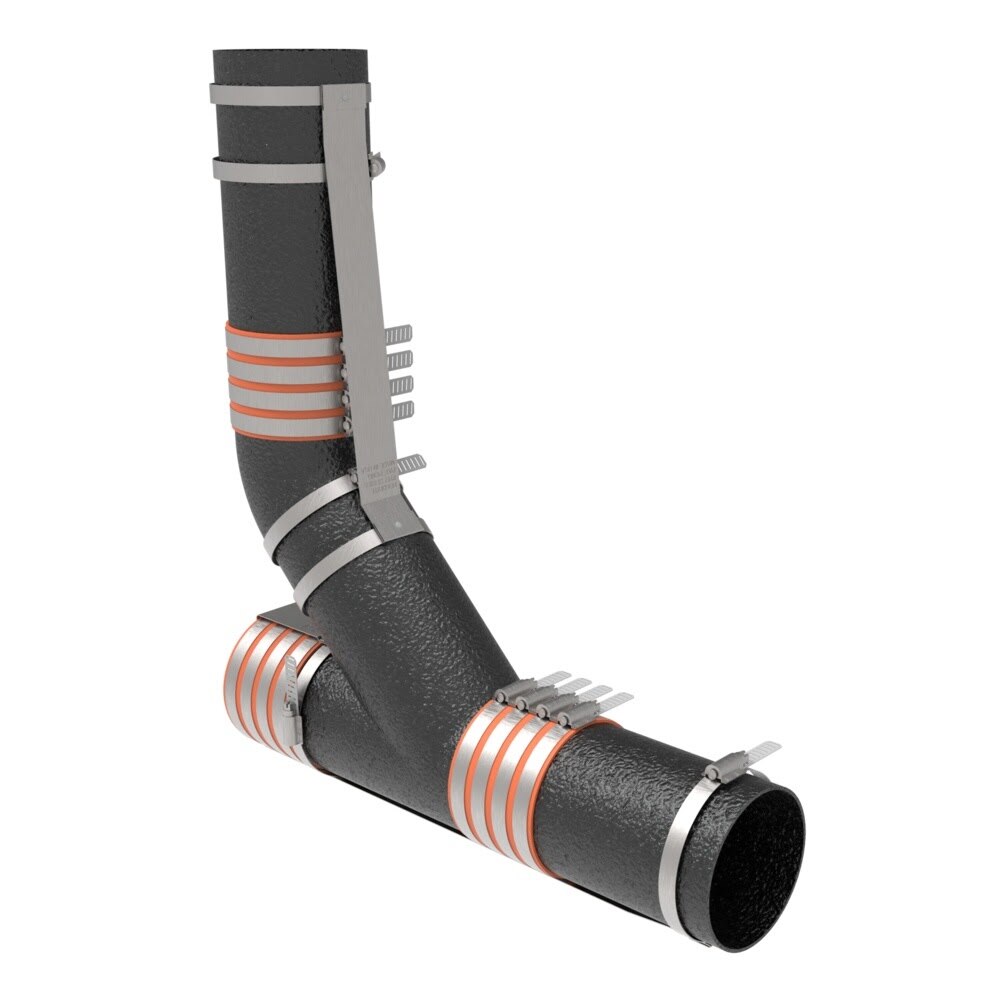

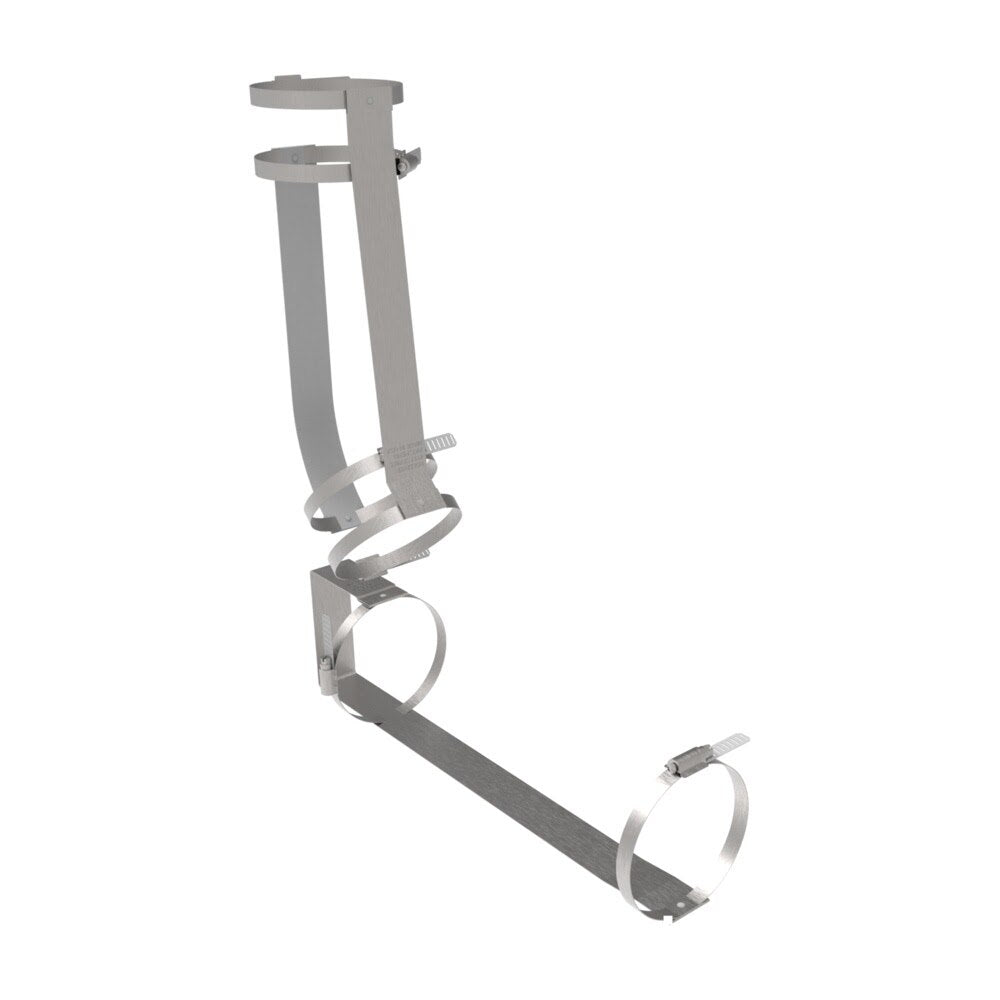

HoldRite 117-4CE Description
The HoldRite 117-4CE is a 4 in. no-hub combo or wye end-of-line position restraint designed to reinforce cast iron DWV installations. It helps retain the fitting onto adjoining piping when a blind plug or cleanout is installed and uses galvanized steel with stainless steel bands for secure restraint.
HoldRite 117-4CE Includes
- (1) 4 in. No-Hub Combo or Wye End-of-Line Position Restraint
HoldRite 117-4CE Features
- Designed for 4 in. no-hub combo or wye fittings in end-of-line positions
- Reinforces no-hub cast iron DWV installations
- Retains the fitting onto adjoining piping when a blind plug or cleanout is installed
- 24 ga. cold-rolled galvanized steel strap construction
- Stainless steel body, band, and screw components
- Bands must be torqued to a minimum of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when properly installed
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
HoldRite 117-4CE Specifications
| Series | 117-CE |
| Size | 4 in. |
| Product Type | No-Hub Combo or Wye End-of-Line Position Restraint |
| Application | No-hub cast iron DWV installations |
| Compatible Fitting Type | Combo or Wye |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft. head of water pressure |
| Each Shipping Weight | 1.817 lb |
| Case Quantity | 6 |
Toolup Part # :
882623
