HoldRite 117-4CM Description

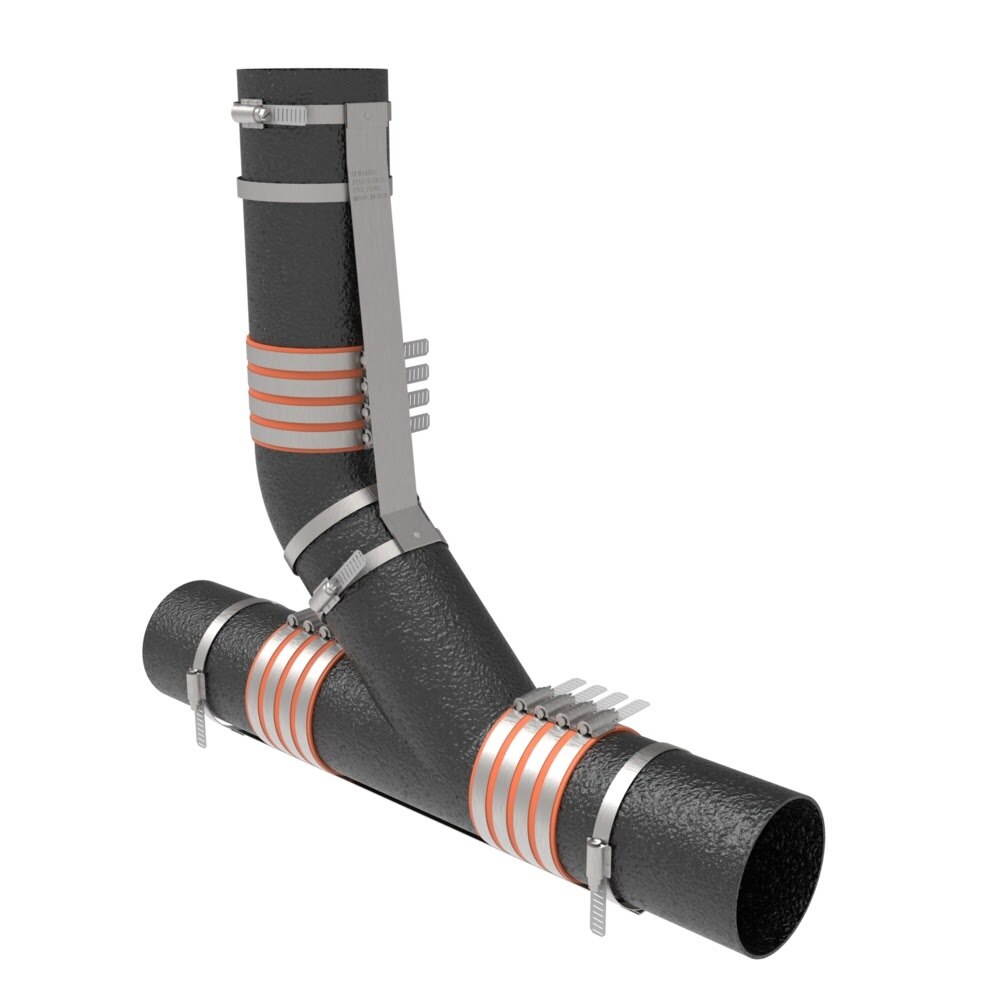

The HoldRite 117-4CM is a 4 in. no-hub combo mid-stream position restraint designed to reinforce no-hub cast iron installations. Part of the 117-CM Series, it combines a wye and eight bend fitting restraint and includes galvanized steel straps with stainless steel band clamps for secure performance.
HoldRite 117-4CM Includes

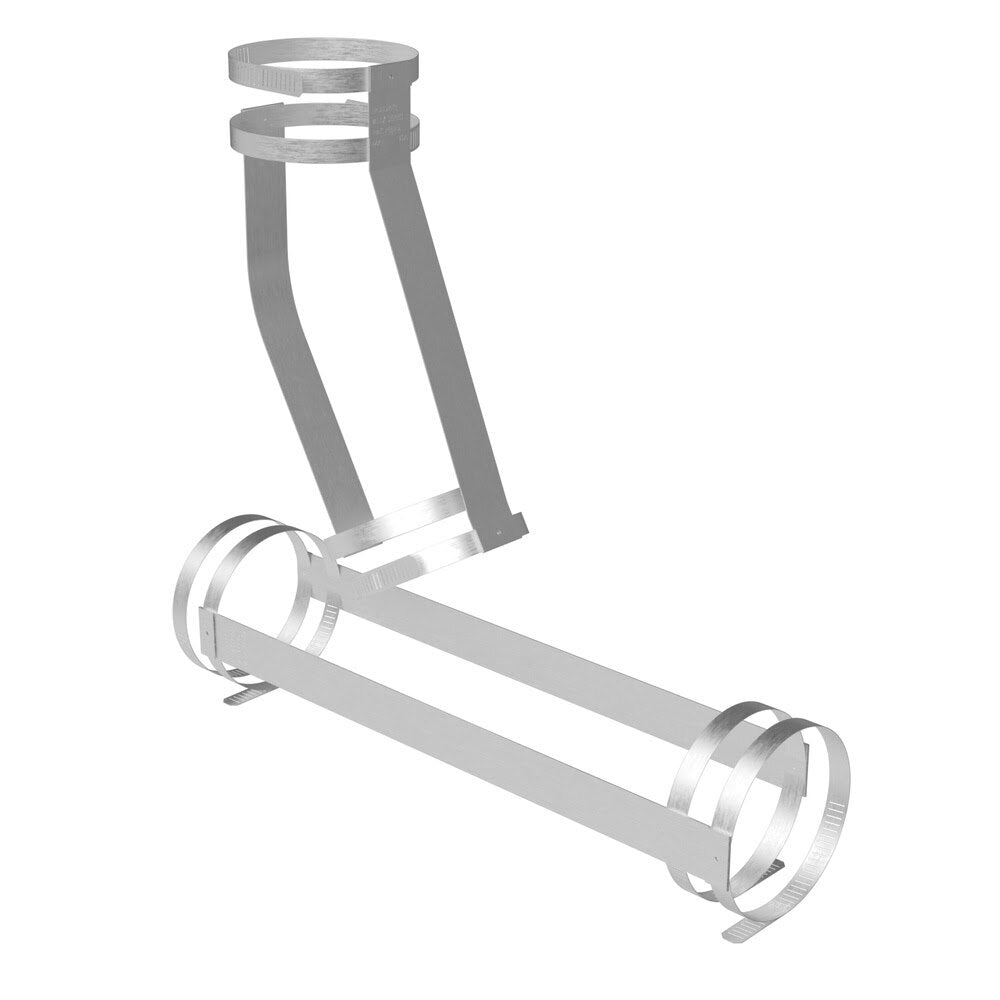

- (1) 4 in. No-Hub Combo Mid-Stream Position Restraint
- (1) Set of galvanized steel straps
- (1) Set of stainless steel band clamps
HoldRite 117-4CM Features
- Designed to reinforce no-hub cast iron installations
- Combines a wye and eight bend fitting restraint in one assembly
- Galvanized steel strap construction
- Stainless steel body, band, and screw components
- Requires 60 in./lbs. minimum torque on band
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Thrust force resistant test data available on request
HoldRite 117-4CM Specifications
| Series | 117-CM Series |
| Size | 4 in. |
| Product Type | No-Hub Combo Mid-Stream Position Restraint |
| Application | No-hub cast iron installations |
| Fitting Compatibility | Wye and eight bend fitting restraint |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band & screw |
| Minimum Torque | 60 in./lbs. on band |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Compliance | CISPI Designation 310-11; 2006 CISPI Installation Handbook |
Toolup Part # :
882724
