HoldRite 117-4LL Description

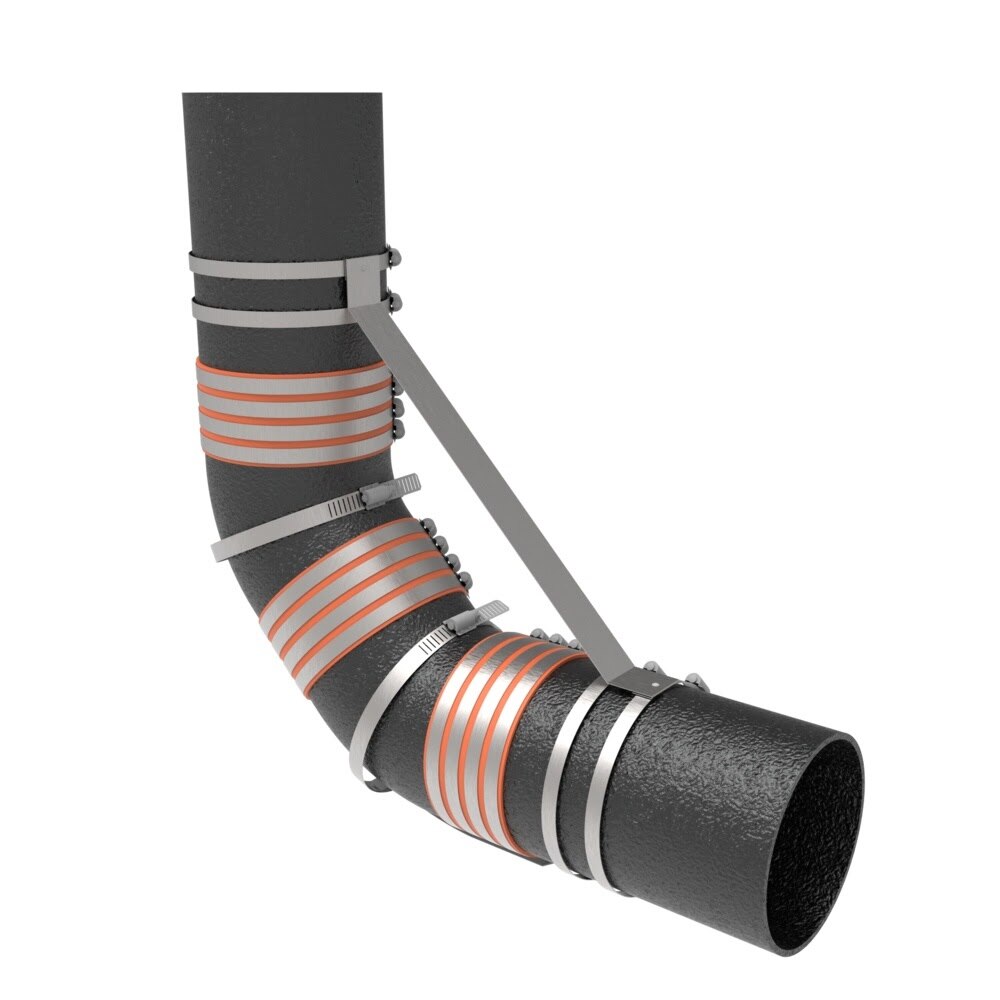

The HoldRite 117-4LL 117-LL Series restraint is designed to reinforce 4 in. no-hub cast iron DWV installations by retaining two 45 Degree 1/8 bends to adjoining piping. Built with galvanized steel straps and stainless steel bands, it is intended for use in code-referenced no-hub systems and achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-4LL Includes

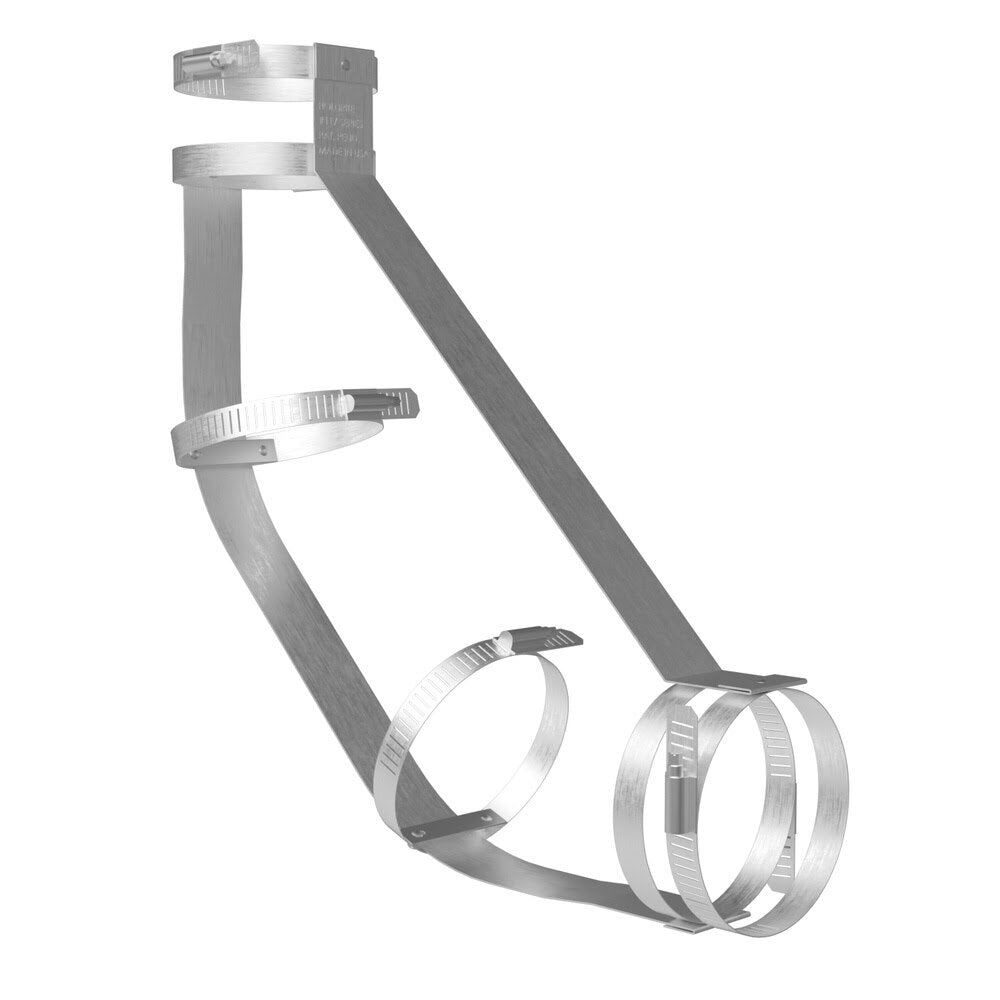

- (1) 4 in. Double 45 Degree No-Hub Fitting Restraint
HoldRite 117-4LL Features
- Designed for 4 in. double 45 Degree 1/8 bend no-hub cast iron installations
- Retains two 45 Degree bends onto adjoining piping
- Reinforces no-hub DWV fitting installations
- 24 ga CRS galvanized steel strap construction
- Stainless steel body, bands, and screws
- Bands require 60 in./lbs. minimum torque
- Safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-4LL Specifications
| Series | 117-LL |
| Product Type | No-Hub Fitting Restraint |
| Size | 4 in. |
| Configuration | Double 45 Degree 1/8 Bend |
| Application | DWV no-hub cast iron installations |
| Strap Material | 24 ga CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Item Length | 23.25 in. |
| Item Width | 10.5 in. |
| Item Height | 10.5 in. |
| Item Weight | 1.575 lb |
| Case Quantity | 12 |
