HoldRite 117-4LS Description

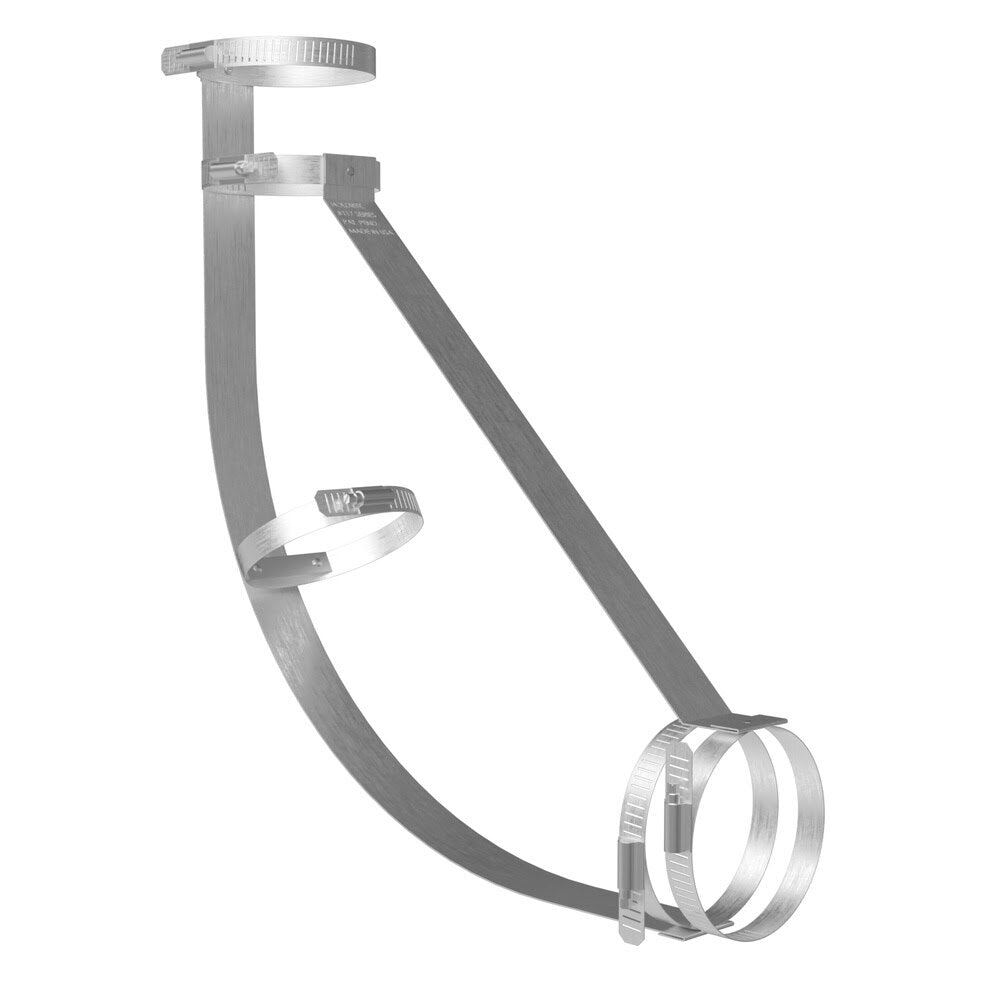

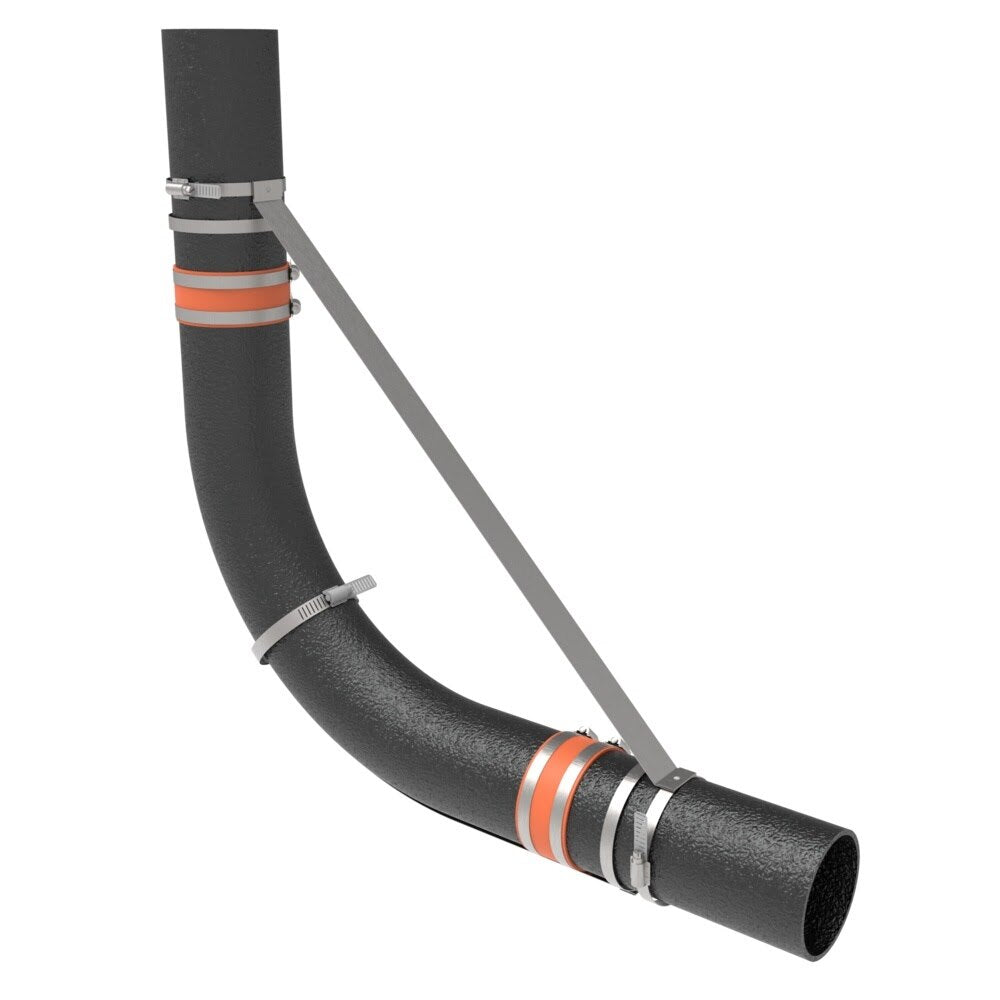

The HoldRite 117-4LS is a 4 in. no hub long sweep 90 Degree bend restraint designed to reinforce cast iron no hub installations at changes of direction. It retains the elbow to adjoining piping with stainless steel bands and hardware, and when installed correctly provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-4LS Includes
- (1) 4 in. No Hub Long Sweep 90 Degree Bend Restraint
HoldRite 117-4LS Features
- Designed for 4 in. no hub cast iron installations at 90 Degree long sweep changes of direction
- Retains the 90 Degree elbow onto adjoining piping
- Stainless steel body, band and screw with 24GA CRS galvanized steel strap
- Bands require 60 in/lbs minimum torque
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, 310-18 and the 2006 CISPI Installation Handbook
HoldRite 117-4LS Specifications
| Series | 117-LS |
| Product Type | No-Hub Fitting Restraint |
| Fitting Type | Long Sweep 90 Degree Bend |
| Pipe Size | 4 in. |
| Material | Stainless steel body, band and screw |
| Strap Material | 24GA CRS galvanized steel |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft. head of water pressure |
| Each Length (in) | 16.25 |
| Each Width (in) | 11.5 |
| Each Height (in) | 10.5 |
| Each Shipping Weight (lb) | 1.458 |
| Case Quantity | 12 |
