Description
Description
HoldRite 117-4S Description

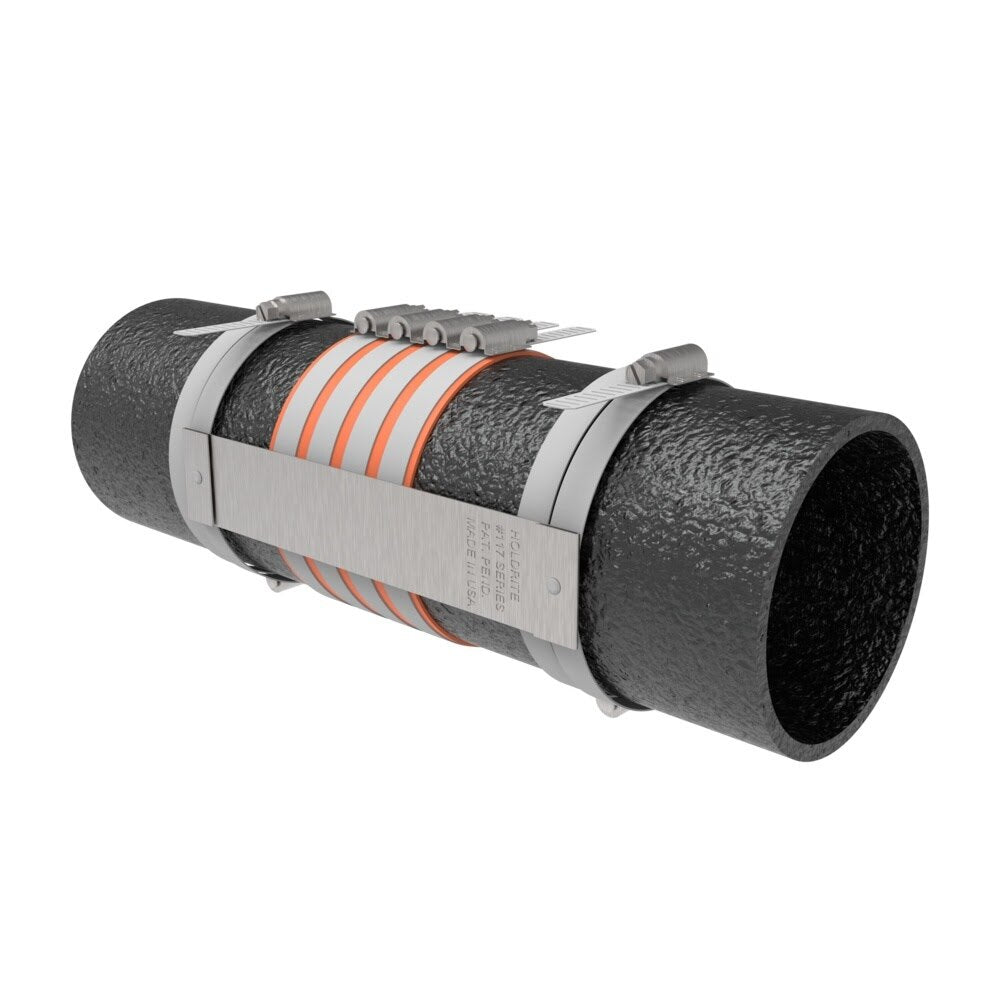

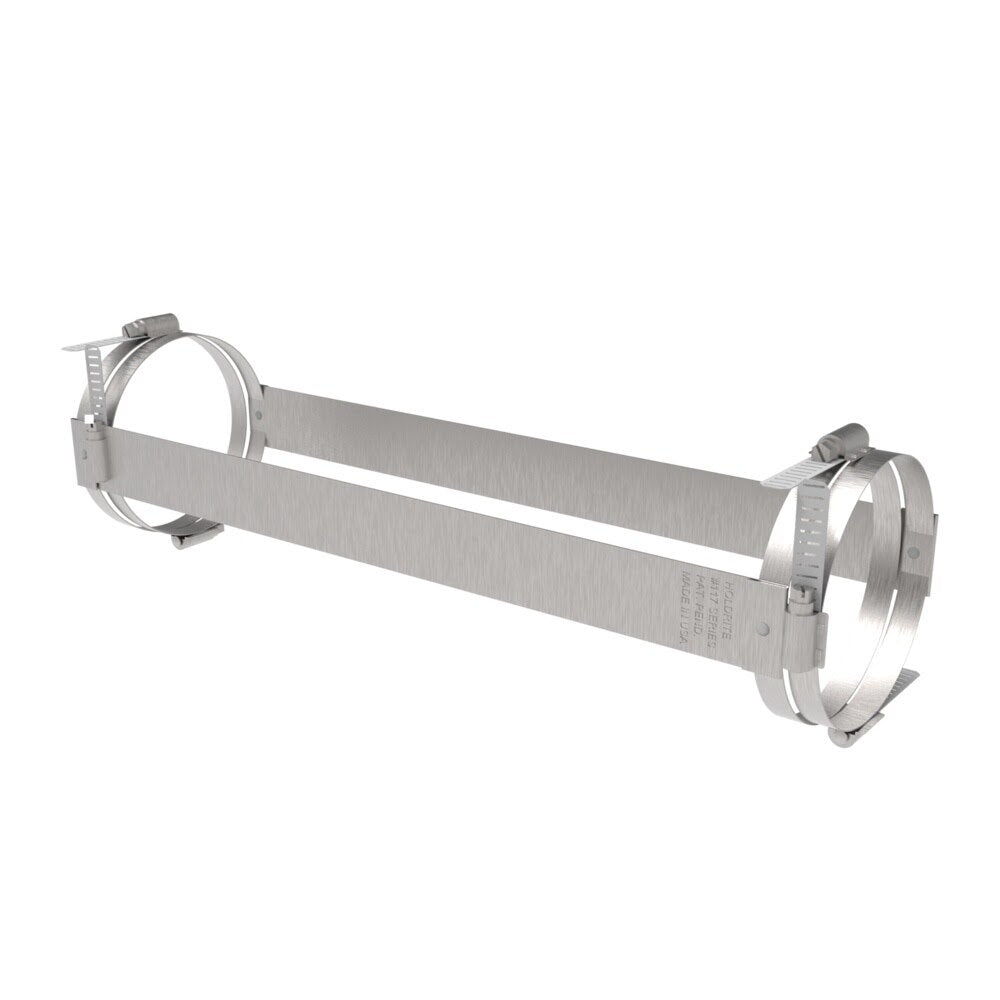

The HoldRite 117-4S is a 4 in. no-hub coupling restraint designed to reinforce no-hub cast iron straight coupling installations. Built with stainless steel bands and galvanized steel straps, it helps retain adjoining piping sections and is intended for installation in accordance with CISPI requirements.
HoldRite 117-4S Includes
- (1) 4 in. No-Hub Coupling Restraint
HoldRite 117-4S Features
- Designed for 4 in. no-hub cast iron straight coupling installations
- Reinforces straight couplings and retains adjoining piping sections
- Constructed with stainless steel bands and galvanized steel restraint straps
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Designed in accordance with CISPI Designation 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
- Thrust force restraint test data available upon request
HoldRite 117-4S Specifications
| Series | 117-S |
| Pipe Size | 4 in. |
| Application | Straight no-hub coupling restraint |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Item Length (in) | 8.052 |
| Item Width (in) | 8.25 |
| Item Height (in) | 7 |
| Shipping Weight (lb) | 0.89 |
| Case Quantity | 20 |
Toolup Part # :
883318
