HoldRite 117-4T Description

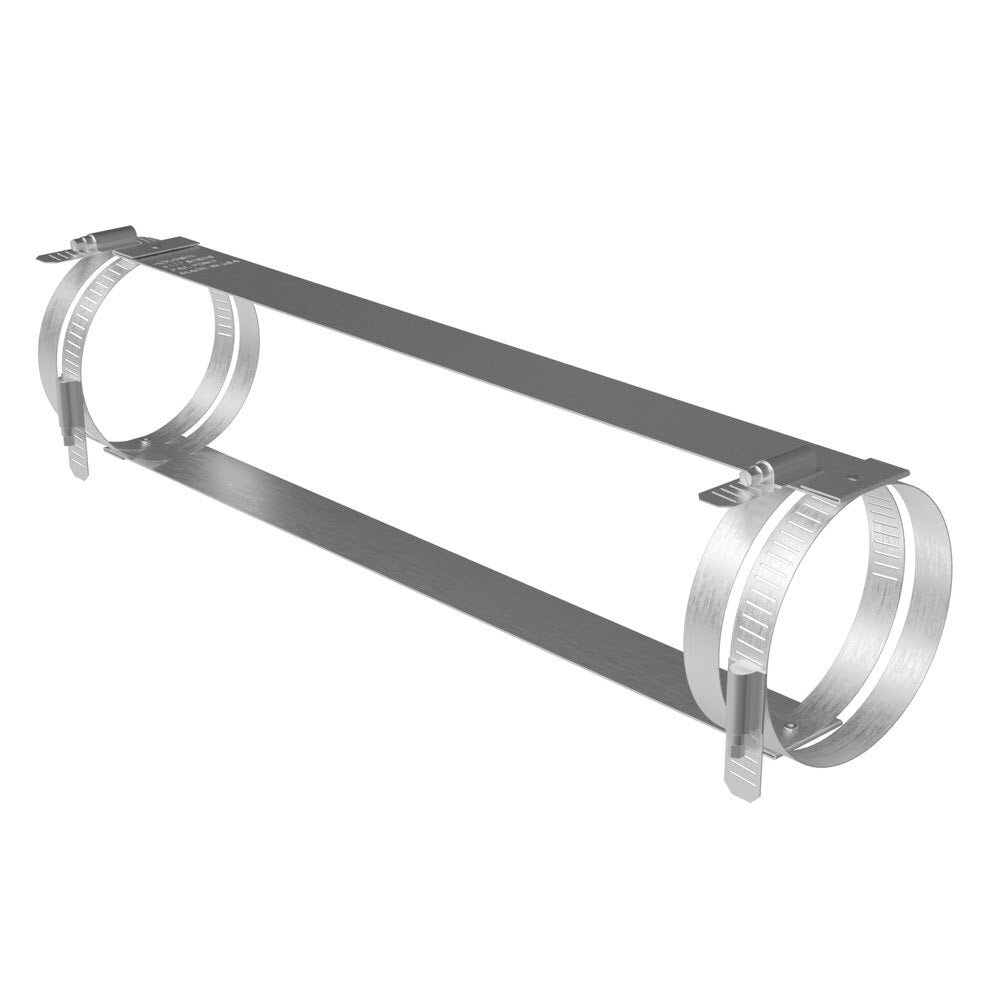

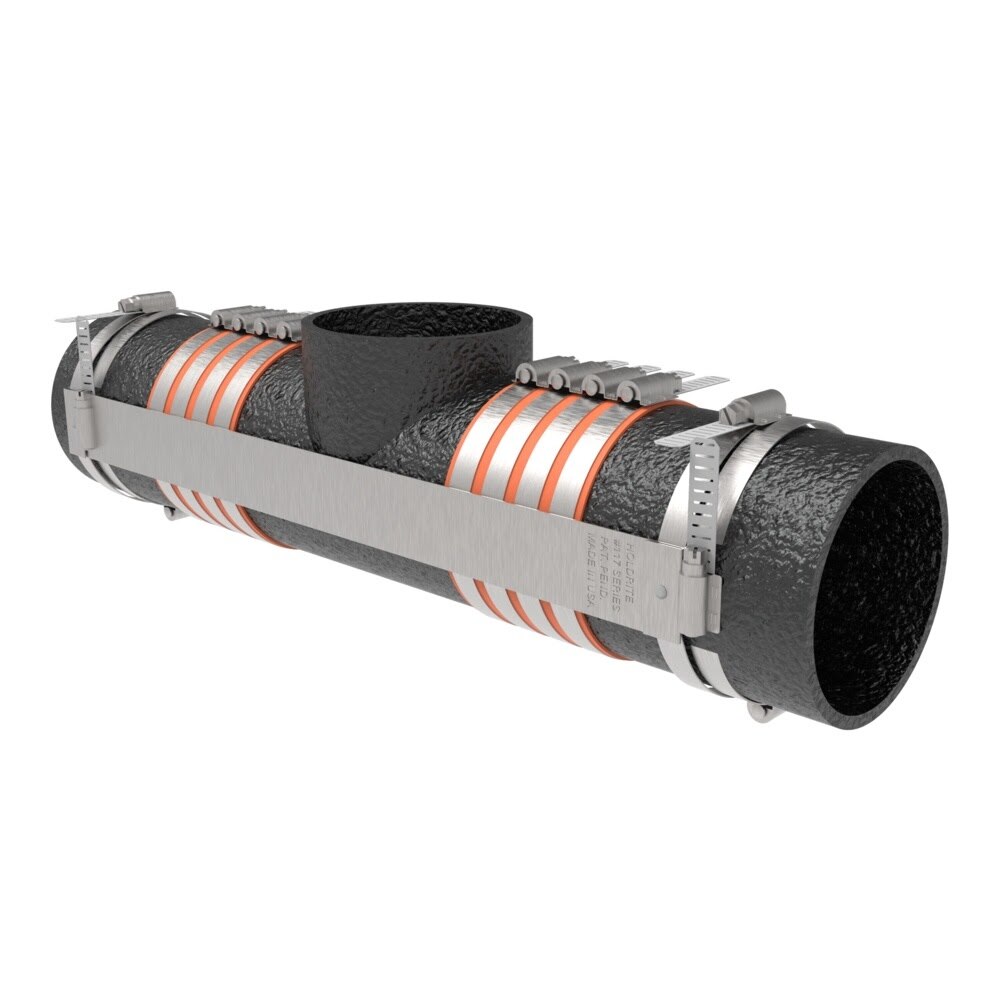

The HoldRite 117-4T is a 4 in. no-hub test tee restraint designed to reinforce no-hub cast iron test and cleanout tee installations in DWV systems. It uses stainless steel bands and a galvanized steel strap assembly to help secure adjoining piping and achieve a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly.
HoldRite 117-4T Includes
- (1) 4 in. No-Hub Test Tee Restraint
HoldRite 117-4T Features
- Designed to reinforce no-hub cast iron test and cleanout tee installations
- Fits 4 in. DWV applications
- Uses stainless steel bands to retain adjoining piping
- Constructed with a 24GA CRS galvanized steel strap
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18 and 310-18 installation guidance
- Patent pending
HoldRite 117-4T Specifications
| Brand | HoldRite |
| Series | 117-T Series |
| Product Type | No-Hub Test Tee Fitting Restraint |
| Size | 4 in. |
| Application | No-hub cast iron test and cleanout tee installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | Safe thrust pressure rating equal to 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 17.25 |
| Product Width (in) | 6.75 |
| Product Height (in) | 1.154 |
| Shipping Weight (lb) | 1.6 |
Toolup Part # :
882705
