HoldRite 117-4W Description

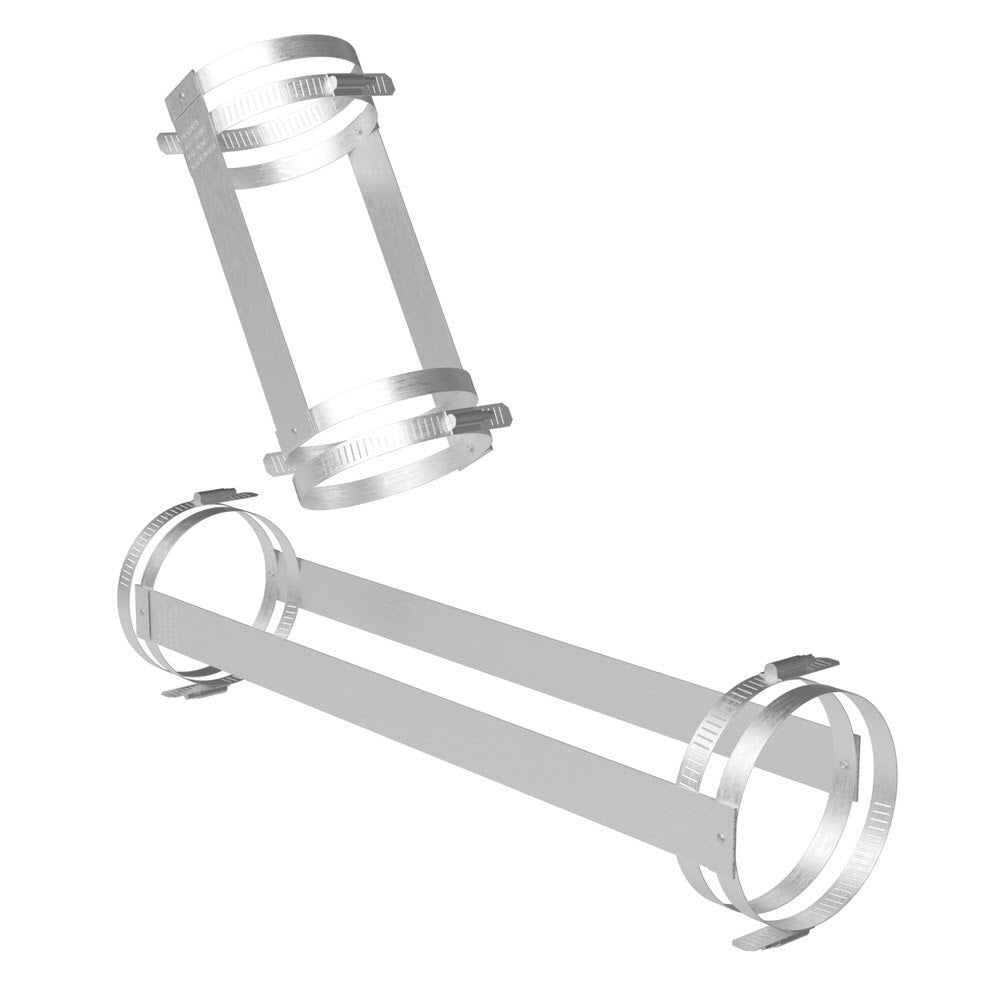

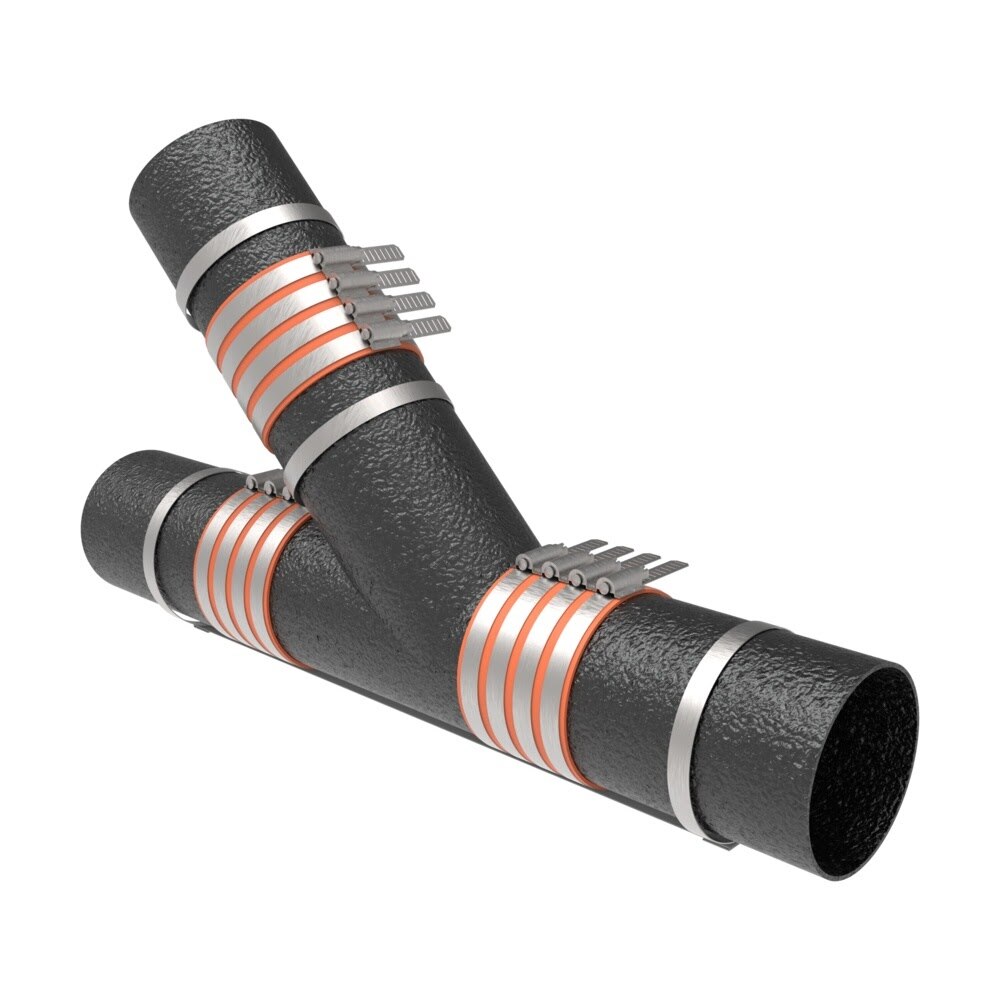

The HoldRite 117-W Series 4 in. no-hub wye or sanitary tee restraint is designed to reinforce no-hub cast iron installations and retain the fitting onto adjoining piping in mid-span runs. It features a galvanized steel strap with stainless steel bands and screws, and the bands tighten to a minimum of 60 in./lbs. for secure installation.
HoldRite 117-4W Includes
- (1) 4 in. No-Hub Wye or San Tee Restraint
HoldRite 117-4W Features
- Designed for 4 in. no-hub wye and sanitary tee applications
- Reinforces no-hub cast iron installations in mid-span runs
- Helps retain the fitting onto adjoining piping
- 24 ga. galvanized cold-rolled steel strap
- Stainless steel body, bands, and screw
- Bands tighten to a minimum of 60 in./lbs.
- Safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Designed in accordance with CISPI 301-18 and 310-18 installation guidance
HoldRite 117-4W Specifications
| Brand | HoldRite |
| Series | 117-W Series |
| Product Type | No-Hub Fitting Restraint |
| Size | 4 in. |
| Application | Wye or sanitary tee restraint for no-hub cast iron piping |
| Strap Material | 24 ga. cold-rolled galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in./lbs. |
| Pressure Rating | 50 ft. head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18 |
| Product Length (in) | 11 |
| Product Width (in) | 7 |
| Product Height (in) | 1 |
| Shipping Weight (lb) | 1.2 |
| Case Quantity | 12 |
Toolup Part # :
882936
