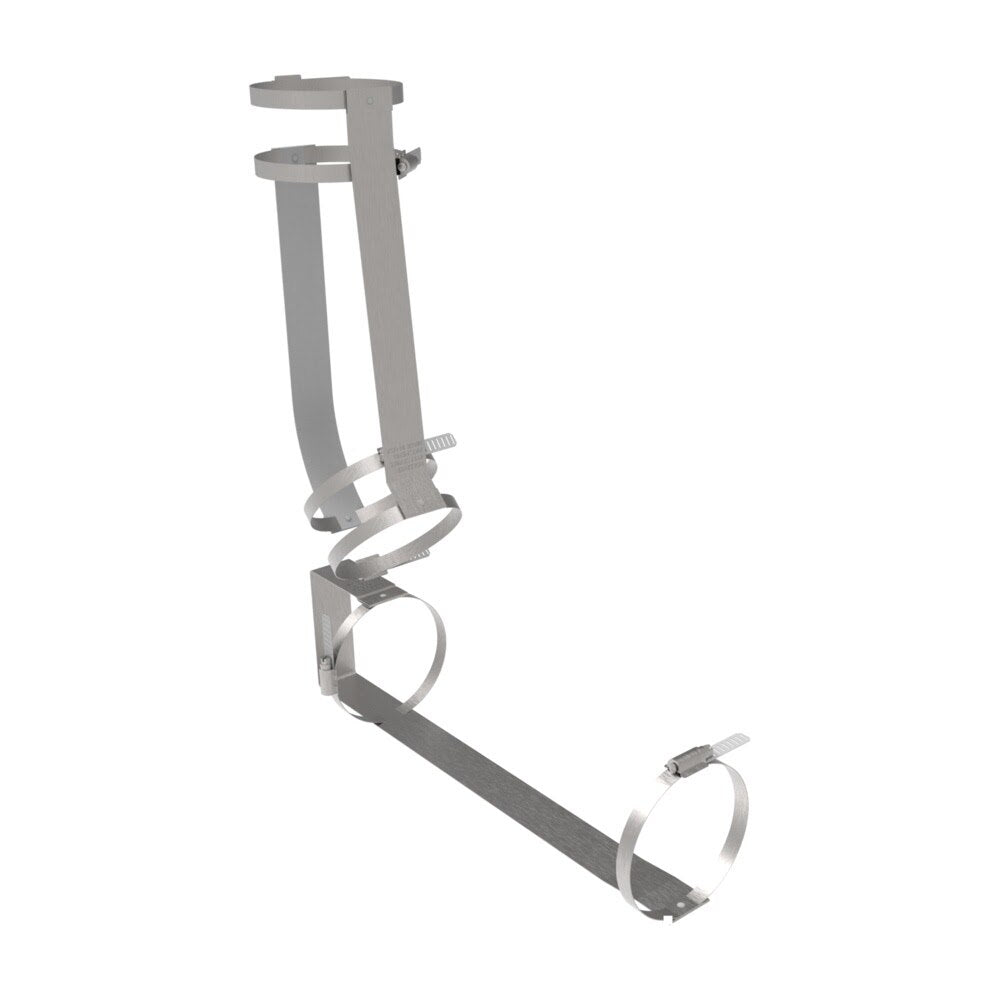

HoldRite 117-4x3CE Description
The HoldRite 117-4x3CE is a CE Series 4 in. x 3 in. end-of-line no-hub combo or wye restraint for DWV testing applications. It uses galvanized steel straps with stainless steel band clamps to retain the fitting onto adjoining piping when a blind plug or cleanout is installed.
HoldRite 117-4x3CE Includes
- (1) 4 in. x 3 in. No-Hub Combo or Wye End-of-Line Restraint
- (1) Set of galvanized steel straps with stainless steel band clamps
HoldRite 117-4x3CE Features
- Designed for end-of-line positioning in DWV testing applications
- Fits 4 in. x 3 in. no-hub combo or wye fittings
- Galvanized steel straps provide durable restraint support
- Includes stainless steel band clamps

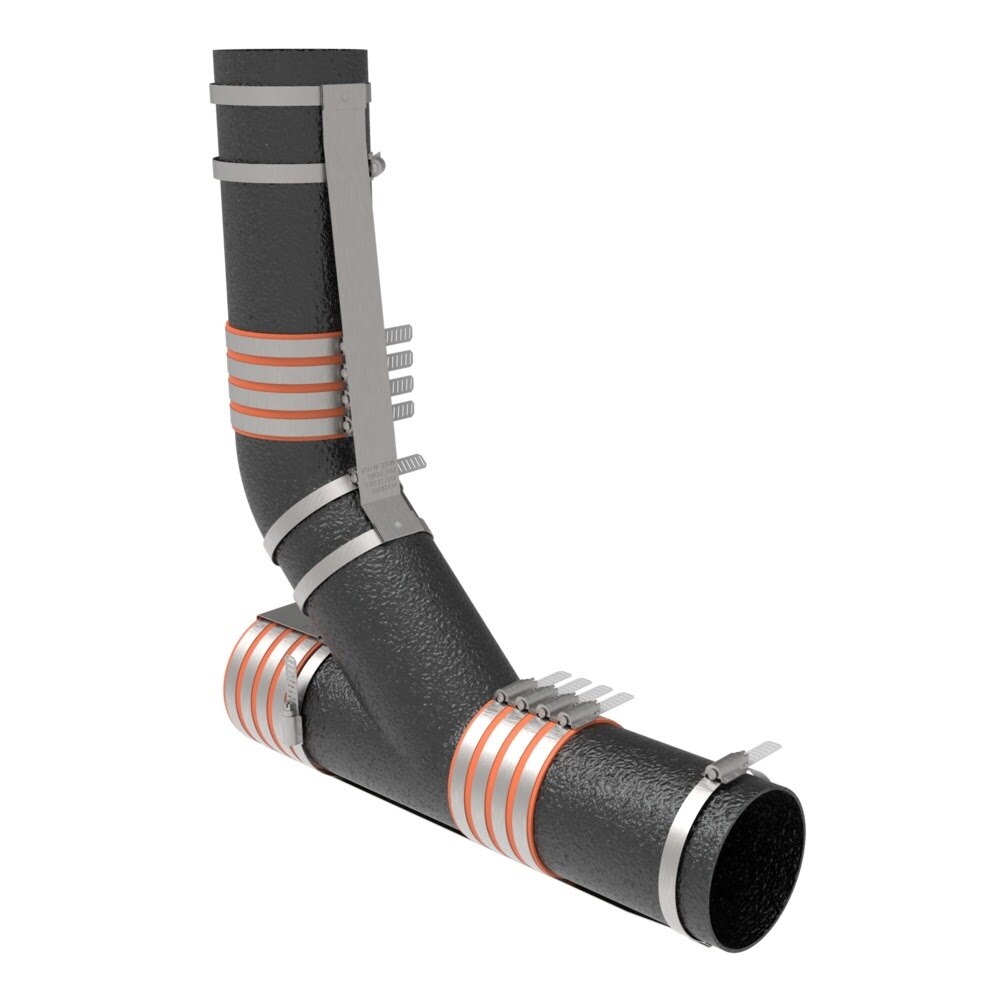

- Helps retain the fitting onto adjoining piping when a blind plug or cleanout is installed
- All stainless steel bands must be torqued to a minimum of 60 in./lbs.
- When installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure
HoldRite 117-4x3CE Specifications
| Series | 117-CE |
| Product Type | No-Hub Combo or Wye Restraint |
| Position | End of line |
| Application | DWV testing |
| Pipe Size | 4 in. x 3 in. |
| Material | Galvanized steel straps with stainless steel band clamps |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Each Length | 15 in. |
| Each Width | 8.5 in. |
| Each Height | 1.359 in. |
| Each Shipping Weight | 1.65 lbs |
| Case Quantity | 6 |
Toolup Part # :
882678
