HoldRite 117-4x3CM Description

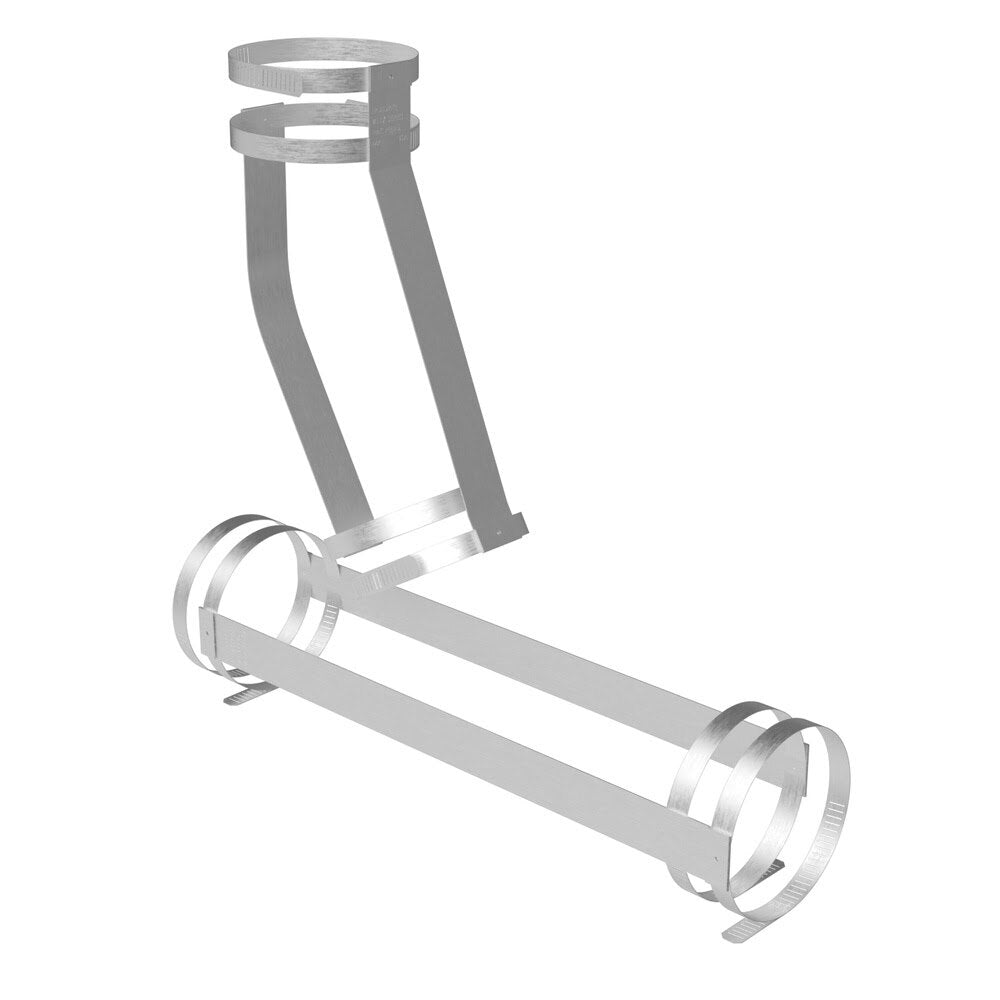

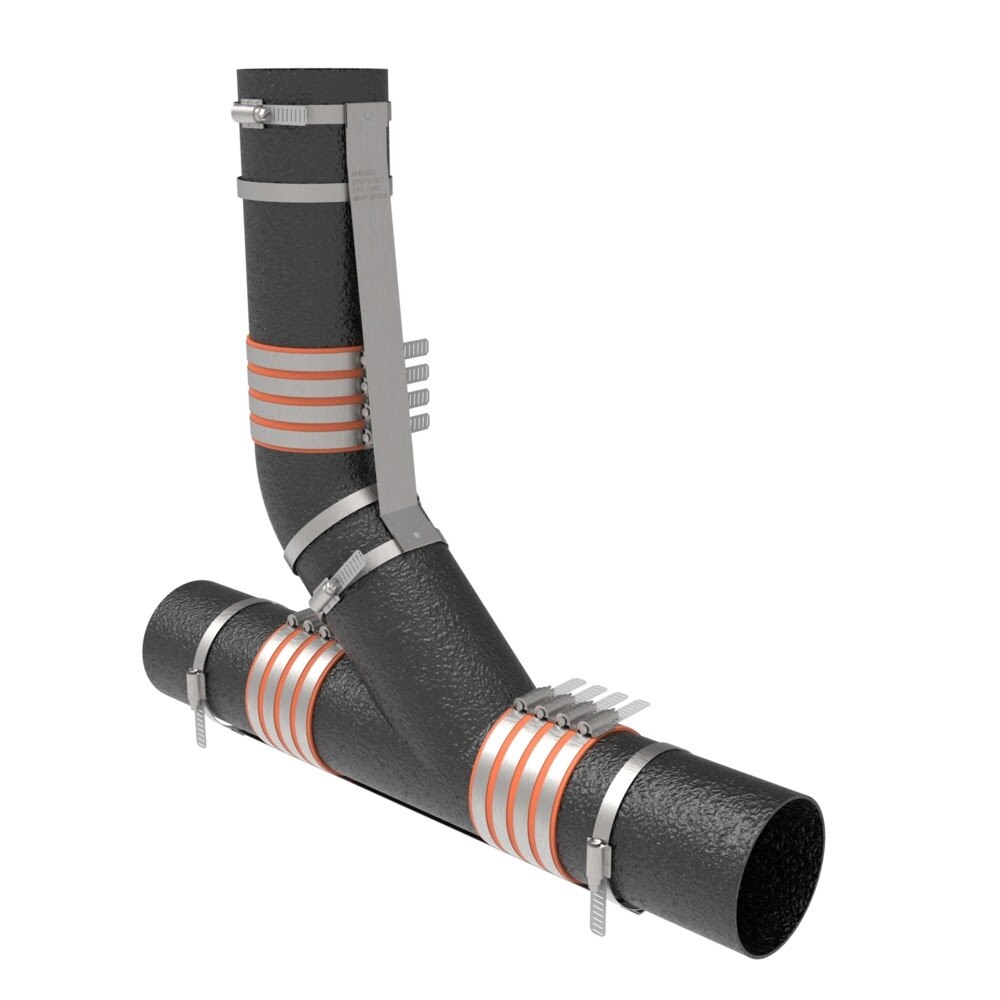

The HoldRite 117-4x3CM is a 4 x 3 in. 117-CM Series no-hub combo midstream position restraint designed to reinforce no-hub cast iron installations. It retains a combo or wye with 1/8 bend onto adjoining piping and uses galvanized steel straps with stainless steel bands for secure, code-aligned performance.
HoldRite 117-4x3CM Includes
- (1) 4 x 3 in. No-Hub Combo Midstream Position Restraint
HoldRite 117-4x3CM Features
- Designed to reinforce no-hub cast iron installations
- Retains a combo or wye with 1/8 bend onto adjoining piping
- 24 gauge CRS galvanized steel strap construction
- Stainless steel body, band, and screw
- Bands tighten to a minimum of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-4x3CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Size | 4 x 3 |
| Position | Midstream |
| Application | No-hub combo or wye with 1/8 bend restraint |
| Strap Material | 24GA CRS galvanized steel |
| Bands Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 17.25 |
| Product Width (in) | 8.25 |
| Product Height (in) | 1.579 |
| Each Shipping Weight (lb) | 1.517 |
