HoldRite 117-4x3R Description

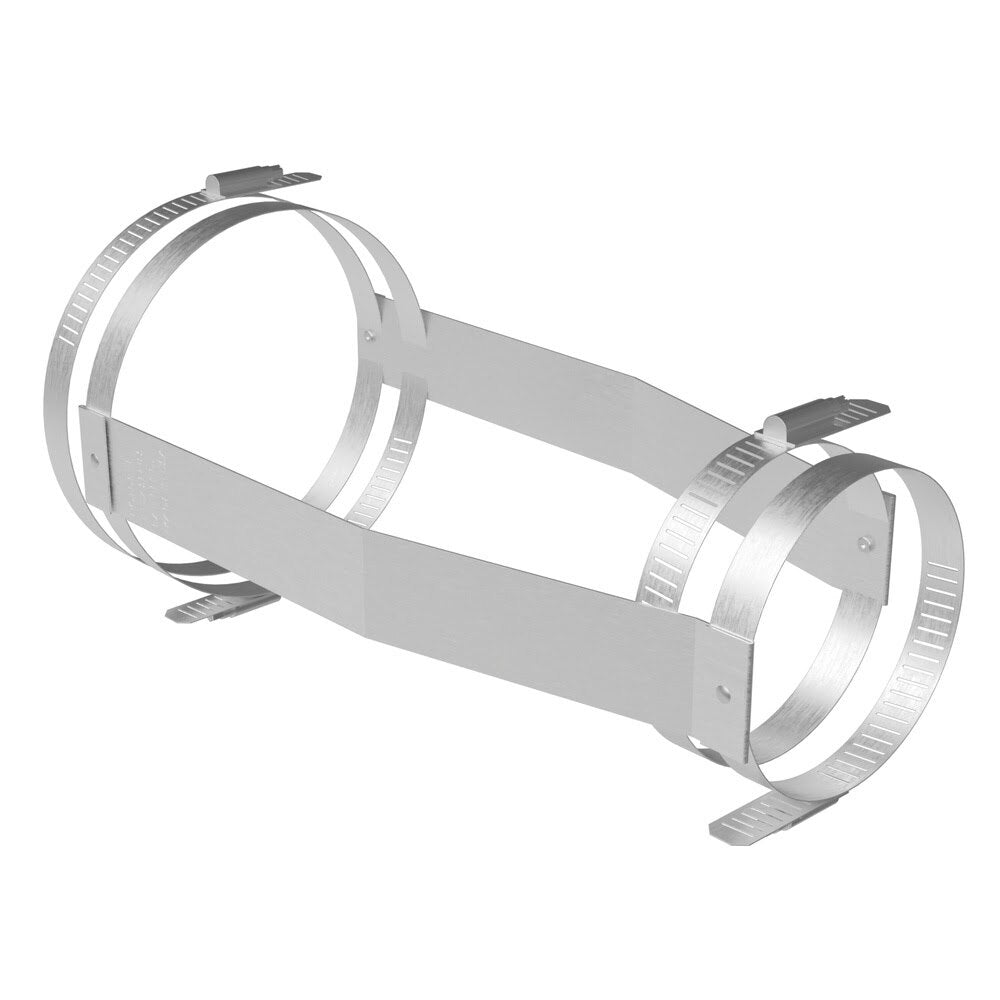

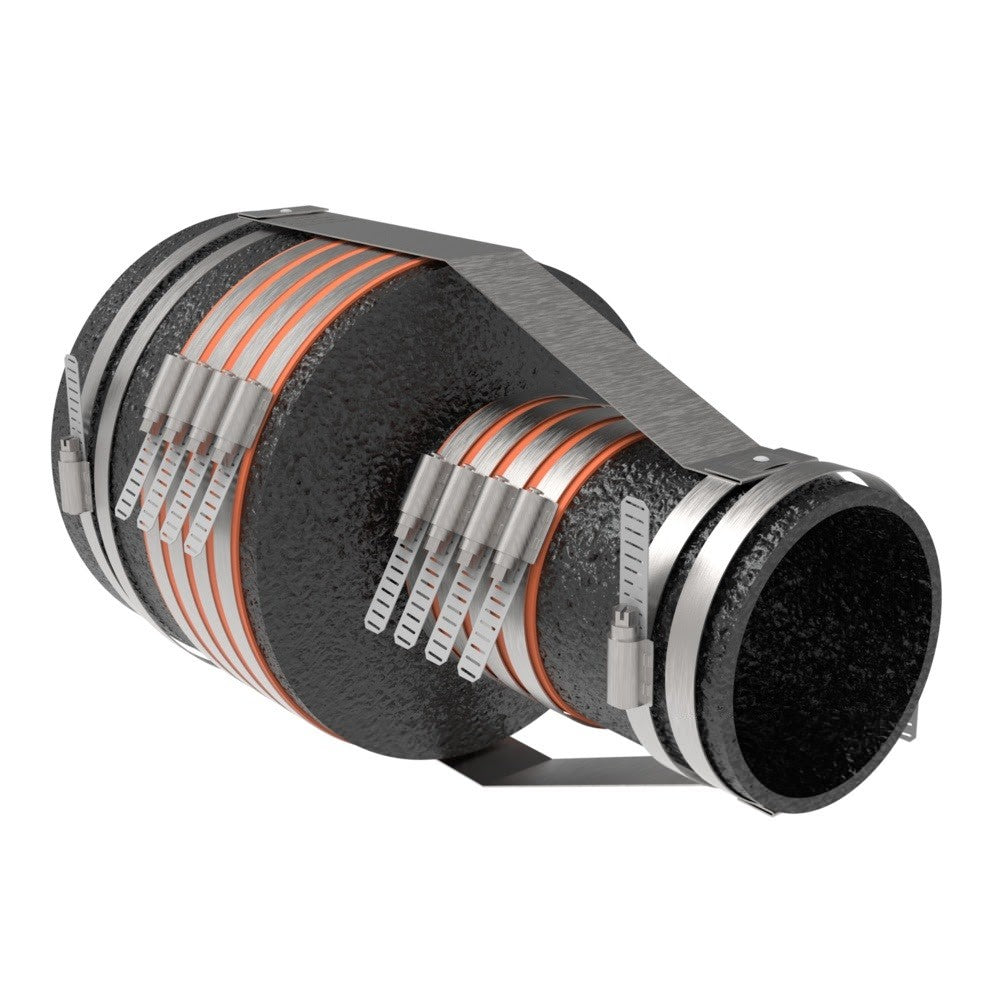

The HoldRite 117-4x3R R Series restraint is designed to reinforce 4 x 3 in. no-hub cast iron reducer installations and retain the fitting between adjoining piping. It features a 24 ga. galvanized steel strap with stainless steel body, bands, and screws, and requires 60 in/lbs minimum torque on all four bands for secure installation.
HoldRite 117-4x3R Includes
- (1) 4 x 3 in. No-Hub Short Reducer Fitting Restraint
HoldRite 117-4x3R Features
- Designed for 4 x 3 in. no-hub reducer fittings
- Reinforces no-hub cast iron installations
- Retains fittings between adjoining piping
- 24 ga. CRS galvanized steel restraint strap
- Stainless steel body, bands, and screws
- All four bands require 60 in/lbs minimum torque
- Patent pending
- Thrust force restraint test data available upon request
HoldRite 117-4x3R Specifications
| Brand | HoldRite |
| Series | 117 R Series |
| Product Type | No-Hub Short Reducer Fitting Restraint |
| Size | 4 x 3 in. |
| Strap Material | 24GA CRS galvanized steel |
| Bands Material | Stainless steel body, band and screw |
| Torque Requirement | 60 in/lbs minimum |
| Each Length (in) | 13 |
| Each Width (in) | 8 |
| Each Height (in) | 0.609 |
| Each Shipping Weight (lb) | 0.834 |
| Case Quantity | 12 |
| Each UPC | 671119803877 |
