HoldRite 117-4X3W Description

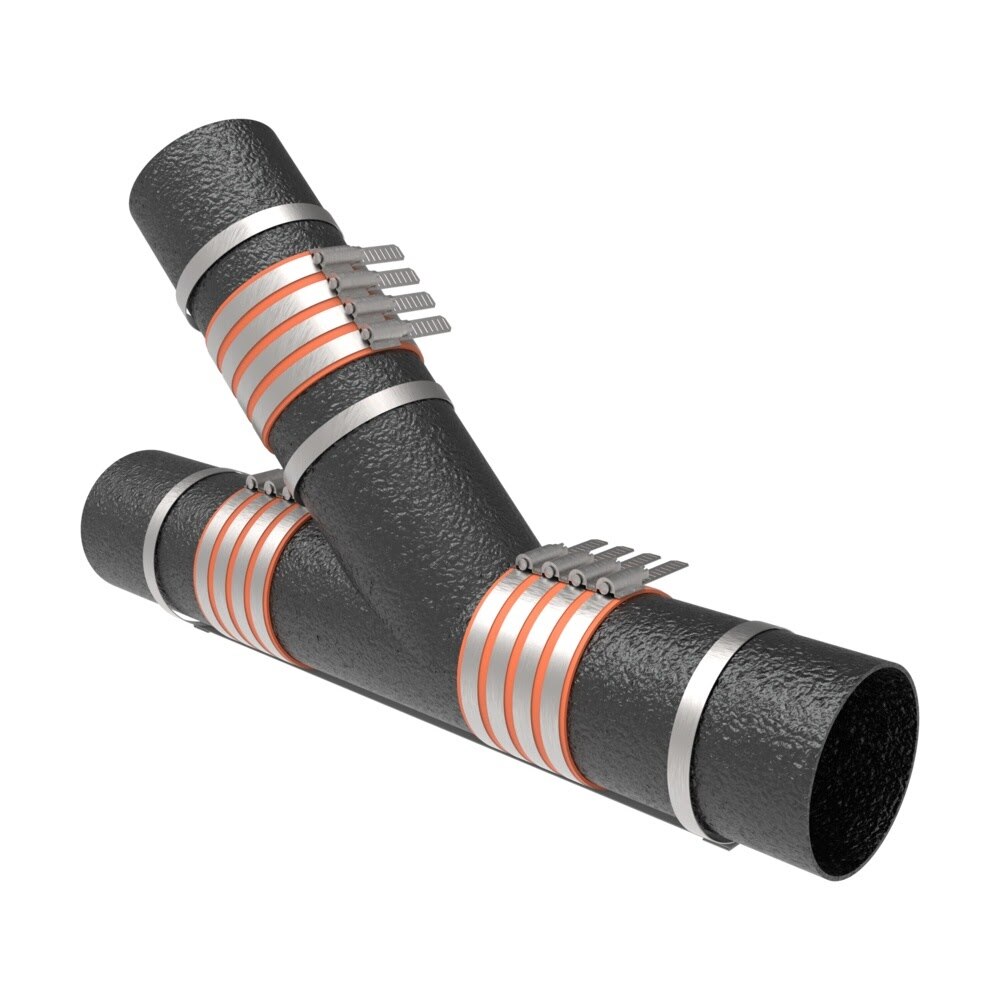

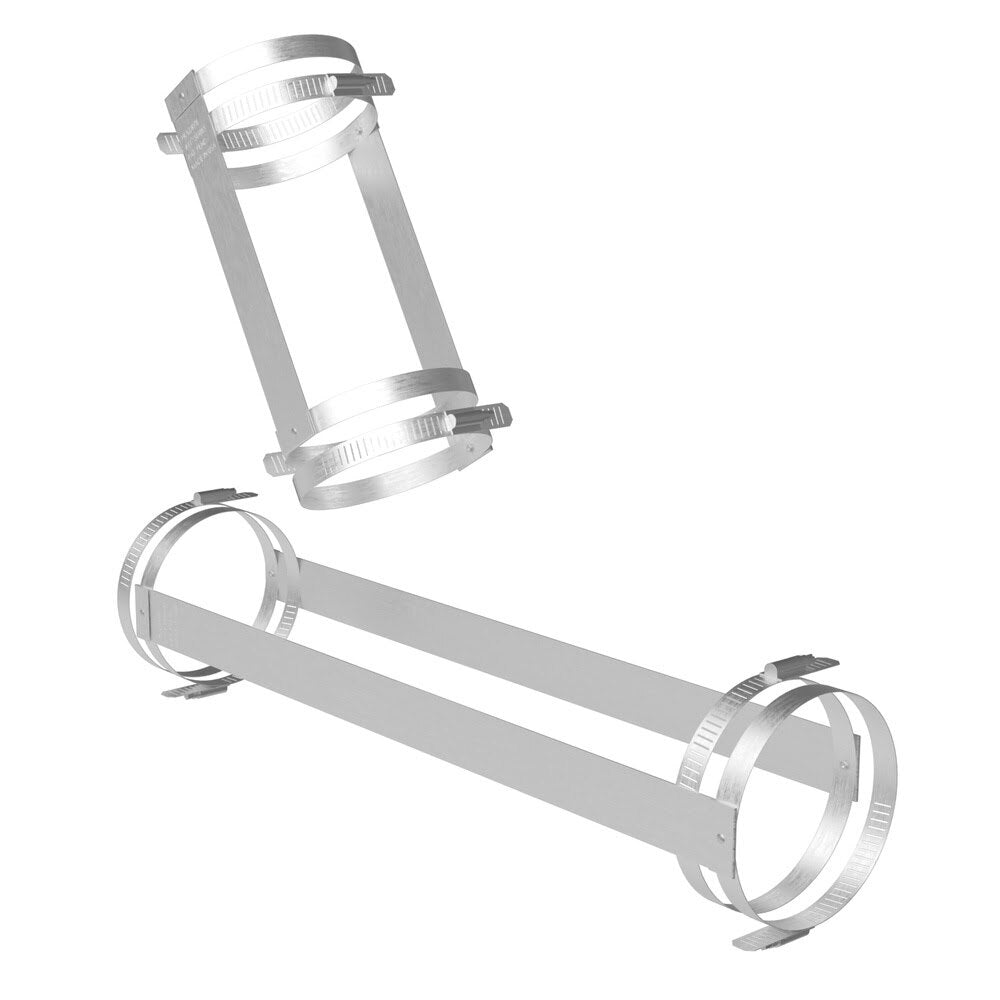

The HoldRite 117-4X3W 4 x 3 in. no hub wye or sanitary tee restraint is designed to reinforce no hub cast iron installations and retain the fitting to adjoining piping in mid-span runs. It features a galvanized steel strap with stainless steel bands and requires a minimum band torque of 60 in/lbs for secure installation.
HoldRite 117-4X3W Includes
- (1) 4 x 3 in. No Hub Wye or Sanitary Tee Restraint
HoldRite 117-4X3W Features
- Designed to reinforce no hub cast iron installations
- Fits 4 x 3 in. wye or sanitary tee no hub fitting applications
- Retains the fitting onto adjoining piping in mid-span runs
- Galvanized steel strap with stainless steel body, band, and screw
- Bands require 60 in/lbs minimum torque
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Built to align with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-4X3W Specifications
| Brand | HoldRite |
| Series | 117-W Series |
| Product Type | No Hub Wye or Sanitary Tee Restraint |
| Size | 4 x 3 in. |
| Strap Material | 24GA CRS galvanized steel |
| Bands Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Each Length | 15.5 in. |
| Each Width | 6.25 in. |
| Each Height | 0.621 in. |
| Each Shipping Weight | 1.083 lbs |
| Case Quantity | 6 |
