HoldRite 117-5BP Description

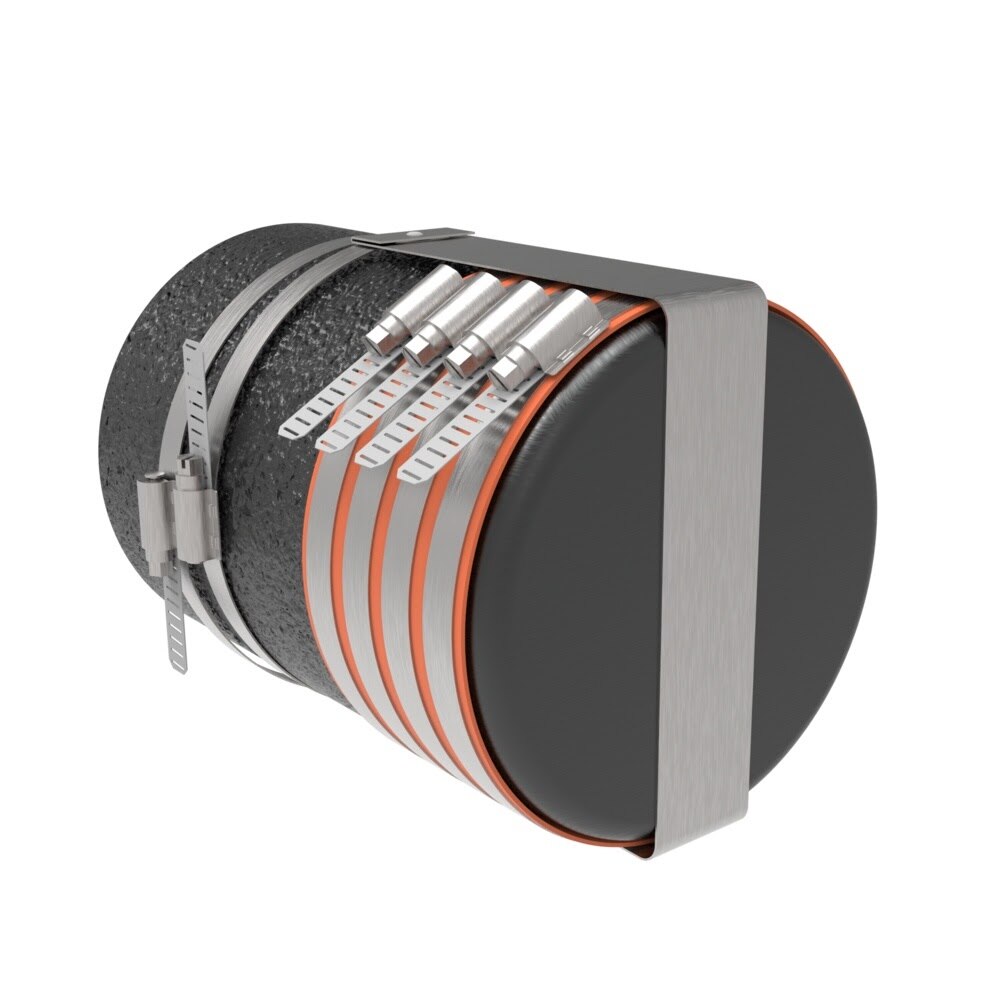

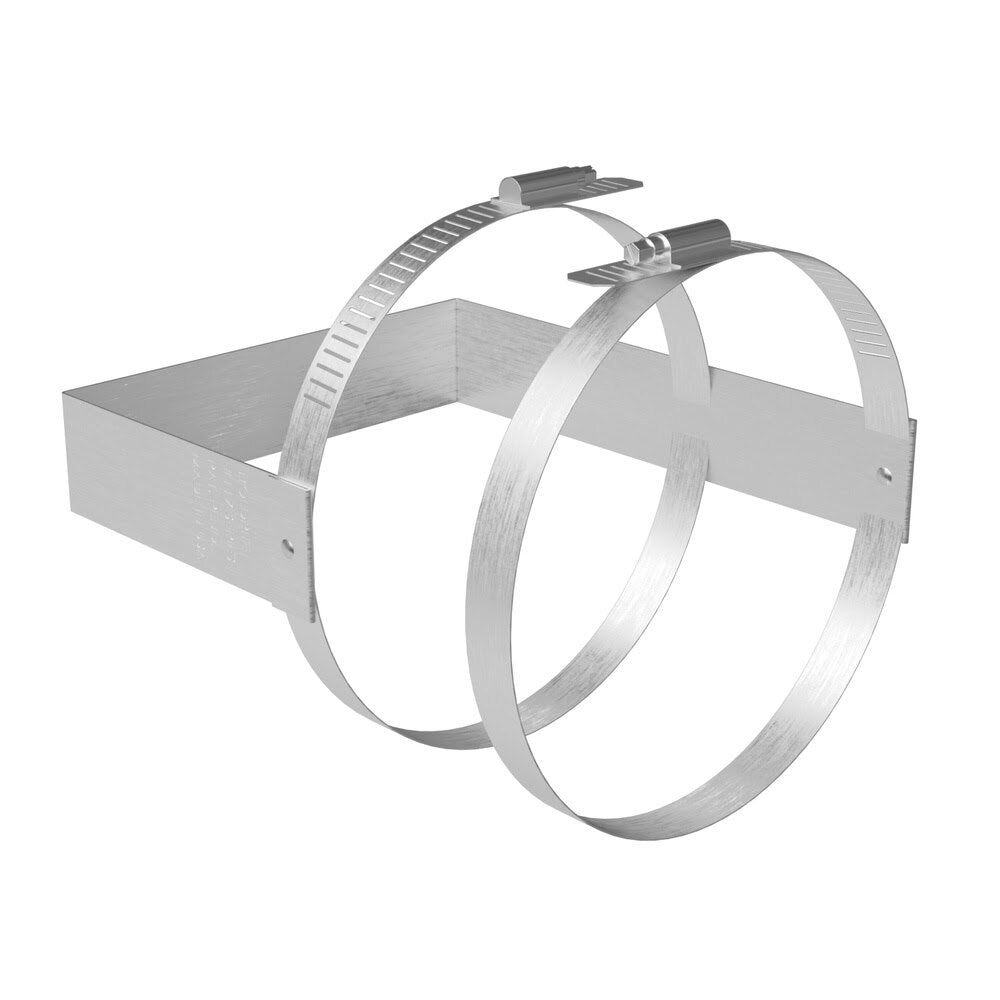

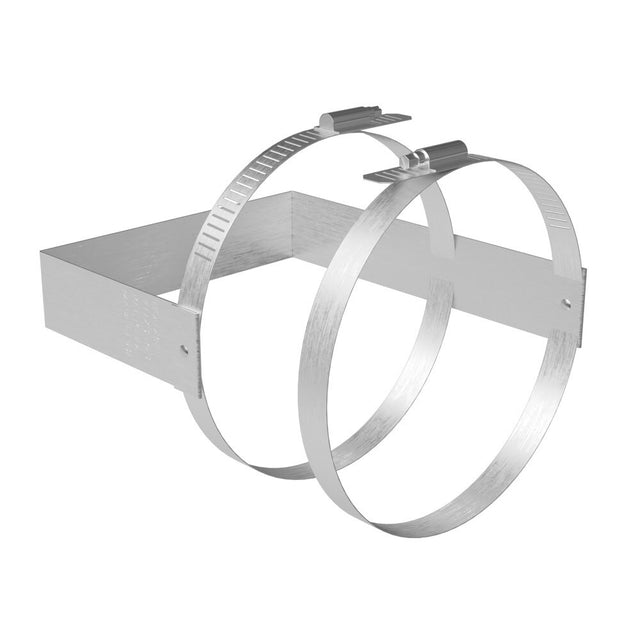

The HoldRite 117-5BP 5 in. no-hub blind plug restraint is designed to reinforce cast iron DWV blind plug and cap installations. It uses a galvanized steel strap with stainless steel bands to retain the plug to adjoining piping and, when installed correctly, provides a safe thrust pressure rating equal to 50 ft head of water.
HoldRite 117-5BP Includes
- (1) 5 in. No-Hub Blind Plug Restraint
HoldRite 117-5BP Features
- Designed to reinforce no-hub cast iron blind plug and cap installations
- Retains the plug to adjoining piping with stainless steel bands
- Galvanized steel strap construction provides strength and durability
- Stainless steel body, band and screw help resist corrosion
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water when properly installed
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-5BP Specifications
| Brand | HoldRite |
| Series | 117-BP |
| Product Type | No-Hub Blind Plug Restraint |
| Nominal Size | 5 in. |
| Application | Blind plugs and caps in no-hub cast iron DWV installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft head of water |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Shipping Weight | 0.5 lb |
| Case Quantity | 20 |
| Minimum Order Quantity | 1 |
Toolup Part # :
883922
