HoldRite 117-5CE Description

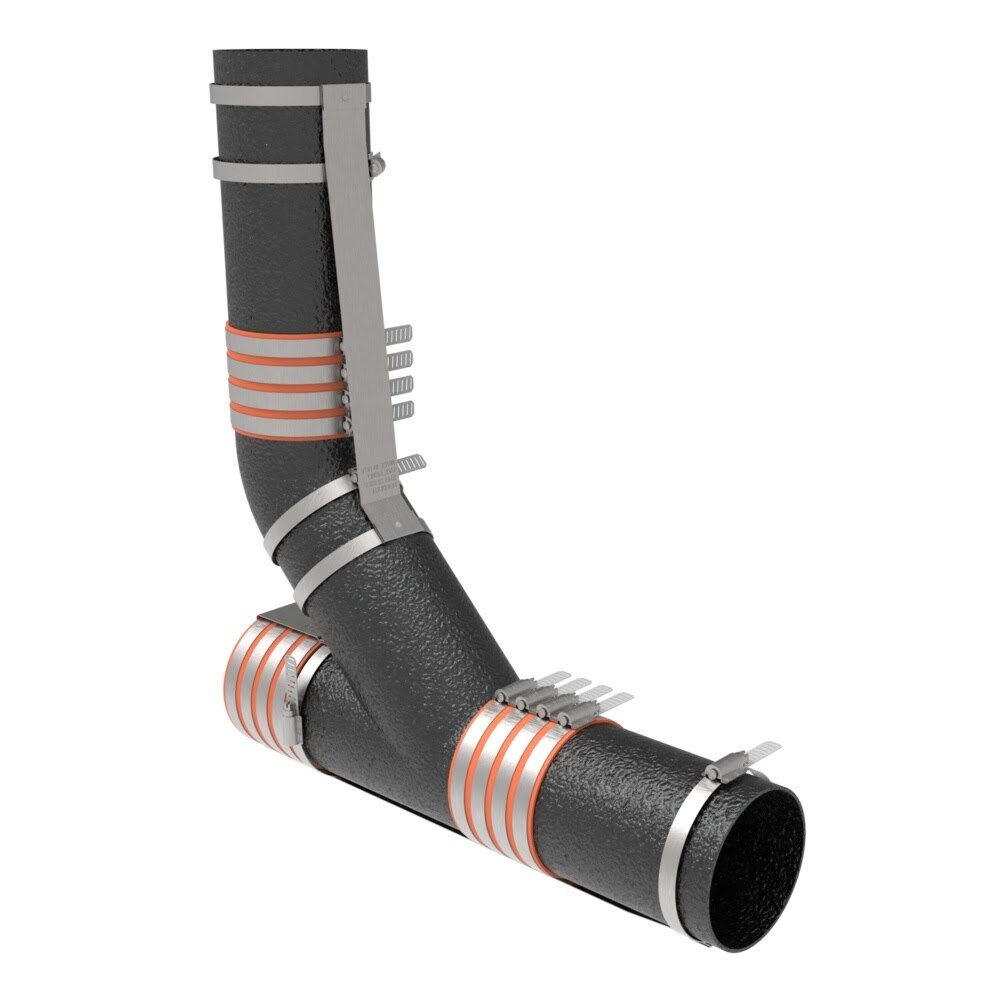

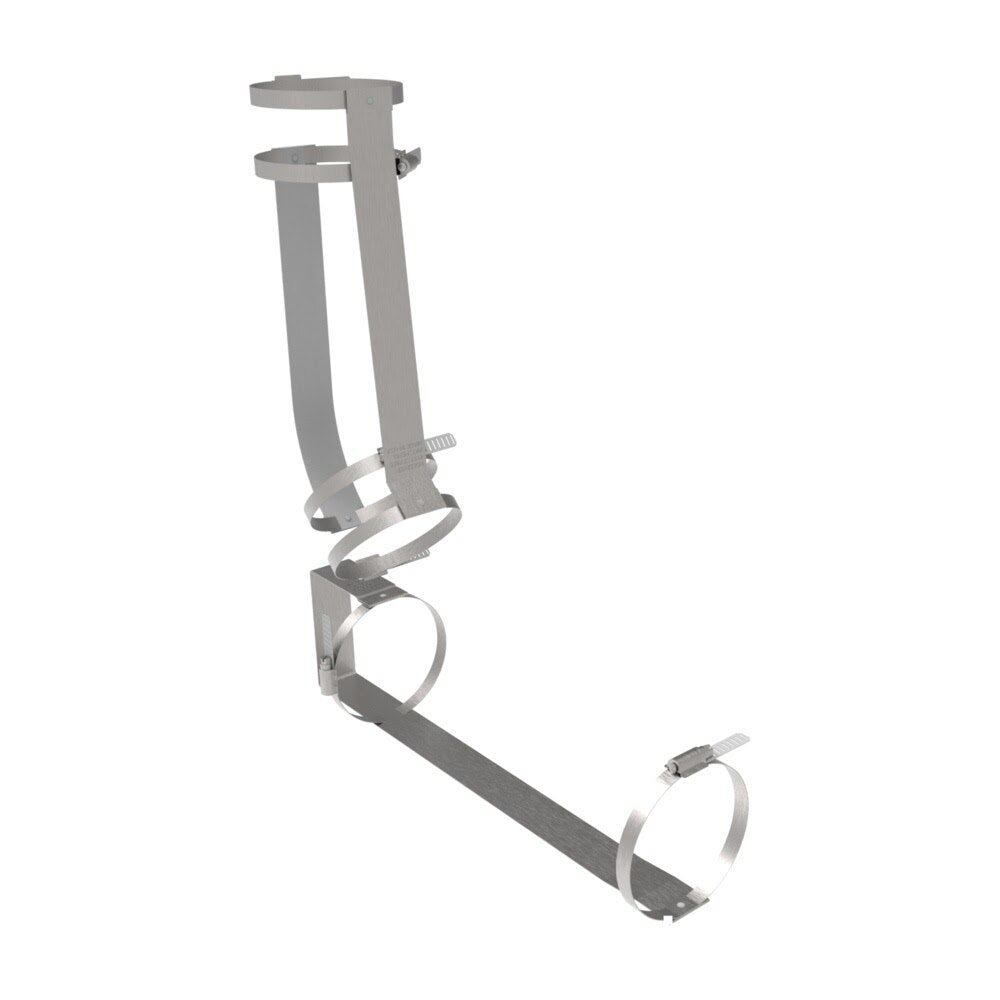

HoldRite 117-5CE is a 5 in. CE Series end-of-line no-hub restraint designed to retain combination or wye fittings onto adjoining piping during DWV testing when a blind plug or cleanout is installed. The kit includes galvanized steel straps and stainless steel band clamps for secure installation.
HoldRite 117-5CE Includes
- (1) 5 in. End-of-Line No-Hub Combo or Wye Restraint
- (1) Set of Galvanized Steel Straps
- (1) Set of Stainless Steel Band Clamps
HoldRite 117-5CE Features
- Designed for end-of-line positions on combination or wye fittings
- Retains the fitting onto adjoining piping during DWV testing
- Use when a blind plug or cleanout is installed
- Includes galvanized steel straps and stainless steel band clamps
- Stainless steel bands require a minimum torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water when installed correctly
- Sized for 5 in. no-hub applications
HoldRite 117-5CE Specifications
| Brand | HoldRite |
| Series | 117-CE |
| Pipe Size | 5 in. |
| Application | End-of-line combo or wye restraint |
| Material | Galvanized steel straps with stainless steel band clamps |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Each Length (in) | 16 |
| Each Width (in) | 12 |
| Each Height (in) | 10 |
| Each Shipping Weight (lb) | 2.5 |
| Case Quantity | 6 |
Toolup Part # :
882451
