HoldRite 117-5x3R Description

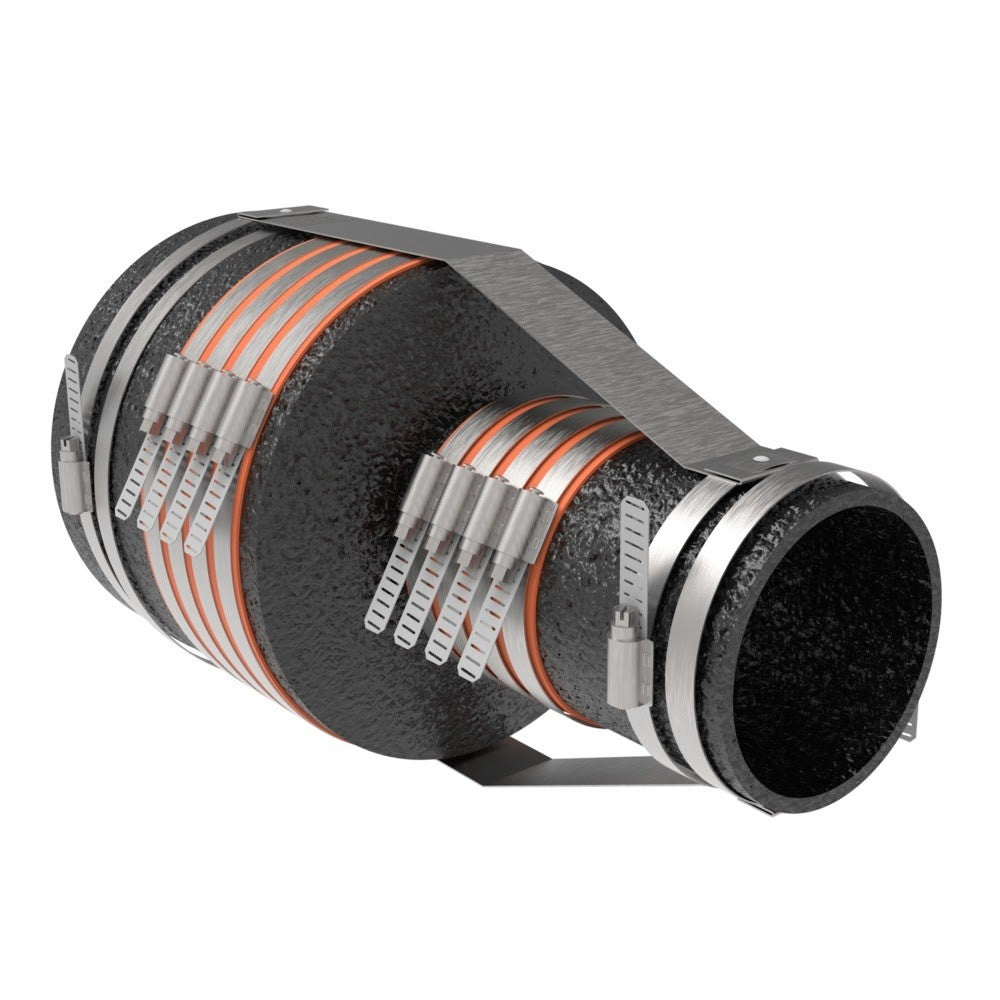

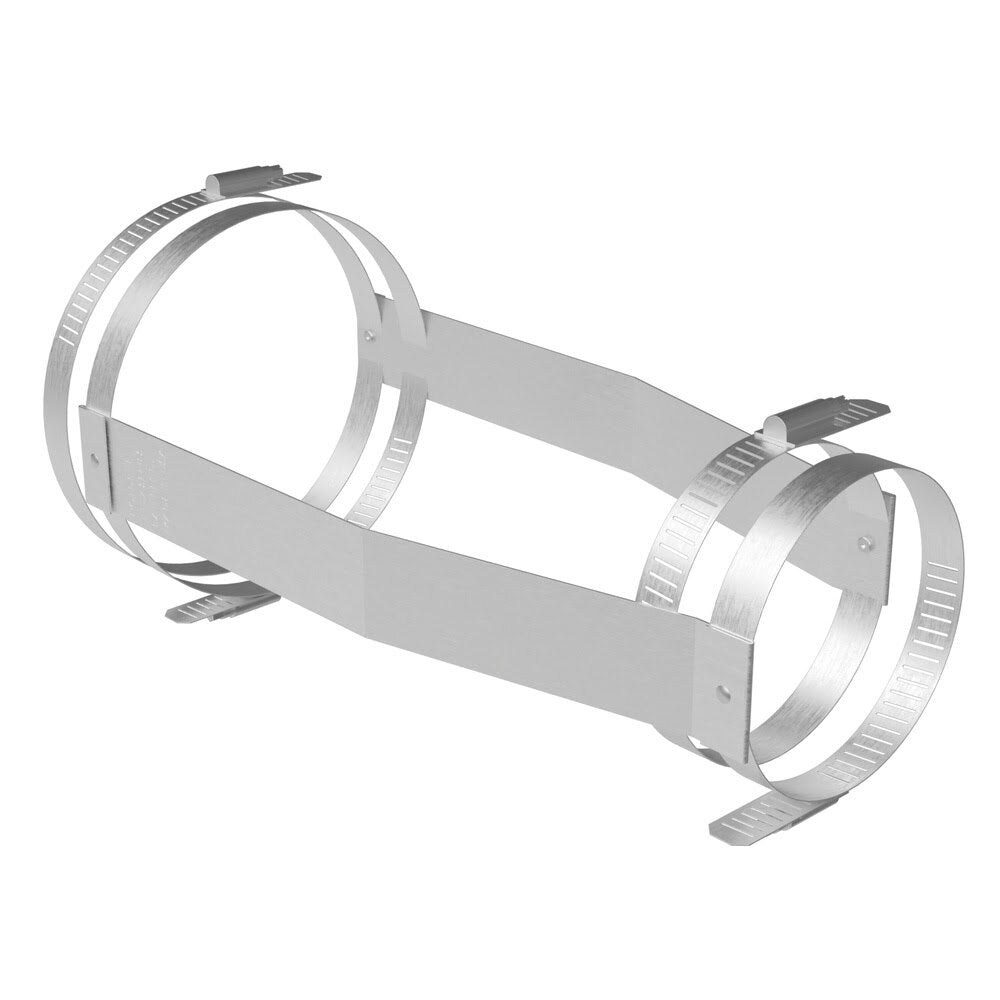

The HoldRite 117-5x3R 117-R Series short reducer restraint reinforces 5 x 3 in no-hub cast iron reducer installations in DWV systems. It uses a galvanized steel strap with stainless steel bands to help retain the reducer fitting to adjoining piping when installed to the required torque.
HoldRite 117-5x3R Includes
- (1) 5 x 3 in No-Hub Short Reducer Restraint
HoldRite 117-5x3R Features
- Designed for 5 x 3 in no-hub cast iron reducer fittings
- Reinforces reducer installations in DWV applications
- Stainless steel bands help retain the reducer fitting to adjoining piping
- 24 ga CRS galvanized steel strap construction
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when properly installed
- Designed in accordance with CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-5x3R Specifications
| Brand | HoldRite |
| Series | 117-R |
| Product Type | No-Hub Short Reducer Restraint |
| Size | 5 x 3 in |
| Application | DWV no-hub cast iron reducer fittings |
| Strap Material | 24 ga CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Standards | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Case Quantity | 12 |
Toolup Part # :
883245
