HoldRite 117-5x4CE Description

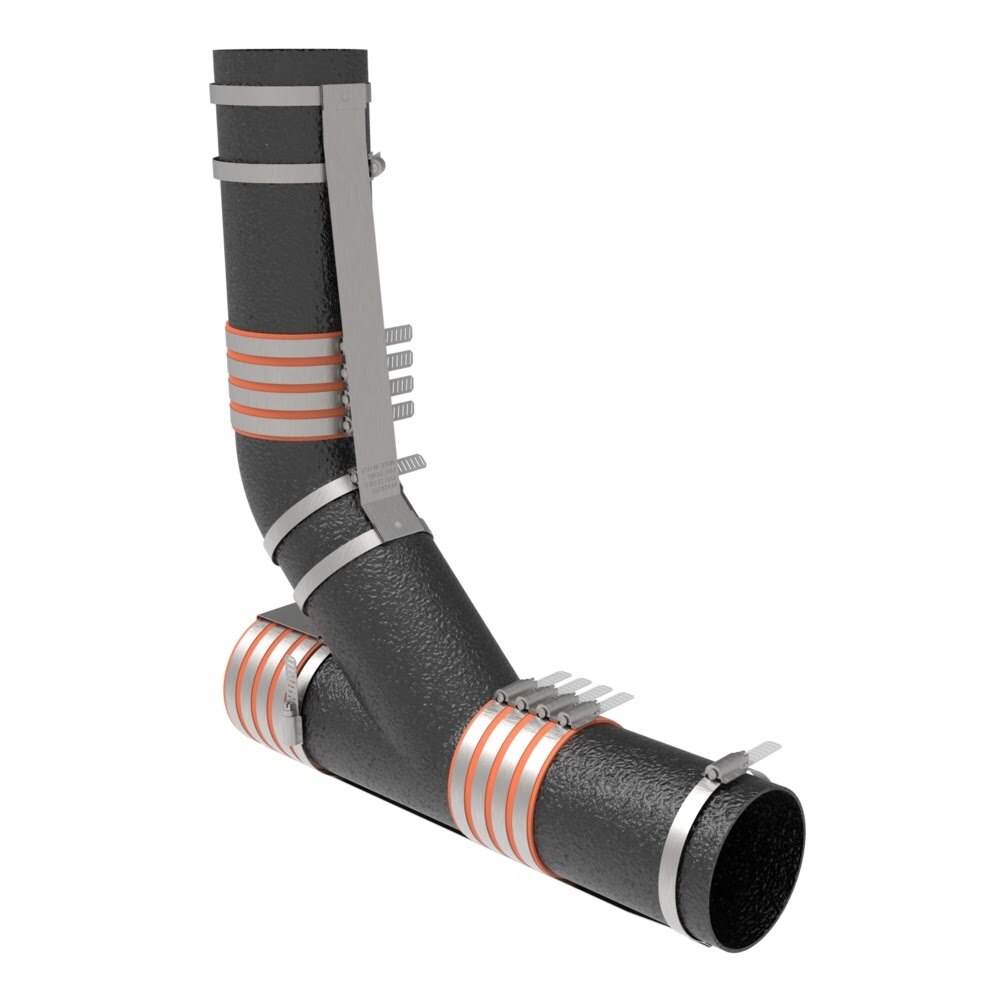

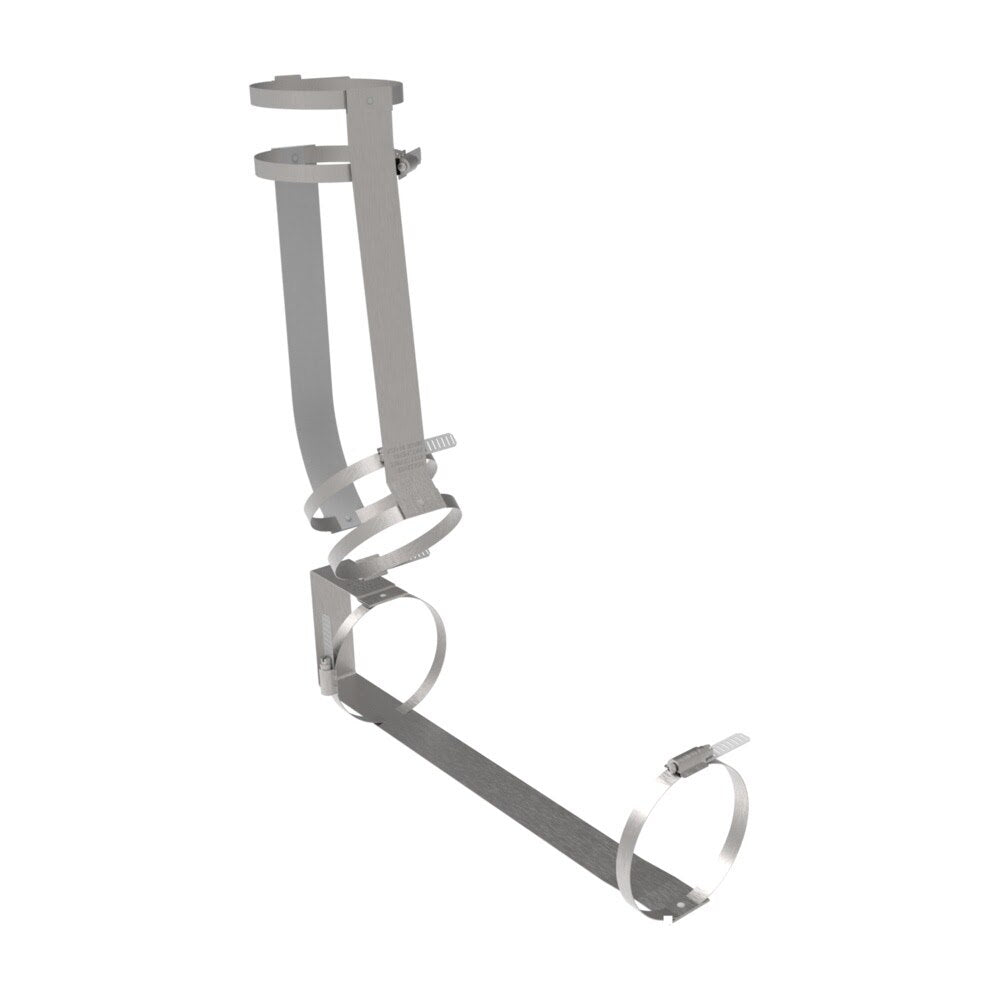

The HoldRite 117-CE Series 5 in x 4 in no-hub combo or wye end of line position restraint is designed to reinforce no-hub cast iron installations. It helps retain the combo or wye fitting onto adjoining piping when positioned at the end of the line and used with either a blind plug or a cleanout. When installed correctly, it provides a safe thrust pressure rating equal to 50 ft head of water pressure.
HoldRite 117-5x4CE Includes
- (1) 5 in x 4 in No-Hub combo or wye end of line position restraint
HoldRite 117-5x4CE Features
- Designed to reinforce no-hub cast iron installations
- Retains combo or wye fittings onto adjoining piping at the end of the line
- For use when either a blind plug or a cleanout is installed
- Stainless steel body, band, and screw construction
- 24 ga CRS galvanized steel strap
- Bands require 60 in/lbs minimum torque
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Built for installations following CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook
- Patent pending
HoldRite 117-5x4CE Specifications
| Series | 117-CE Series |
| Size | 5 x 4 |
| Product Type | No-Hub Combo or Wye End of Line Position Restraint |
| Material | Stainless steel body, band & screw |
| Strap Material | 24 ga CRS galvanized steel |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | Equal to 50 ft head of water pressure |
| Application | Reinforces no-hub cast iron installations and retains combo or wye fittings at the end of the line |
| Installation Use | For end of line positions with a blind plug or cleanout installed |
| Compliance | CISPI 301-18, CISPI 310-18, and the 2006 CISPI Installation Handbook |
| Each Shipping Weight | 2 lb |
