HoldRite 117-5x4CM Description

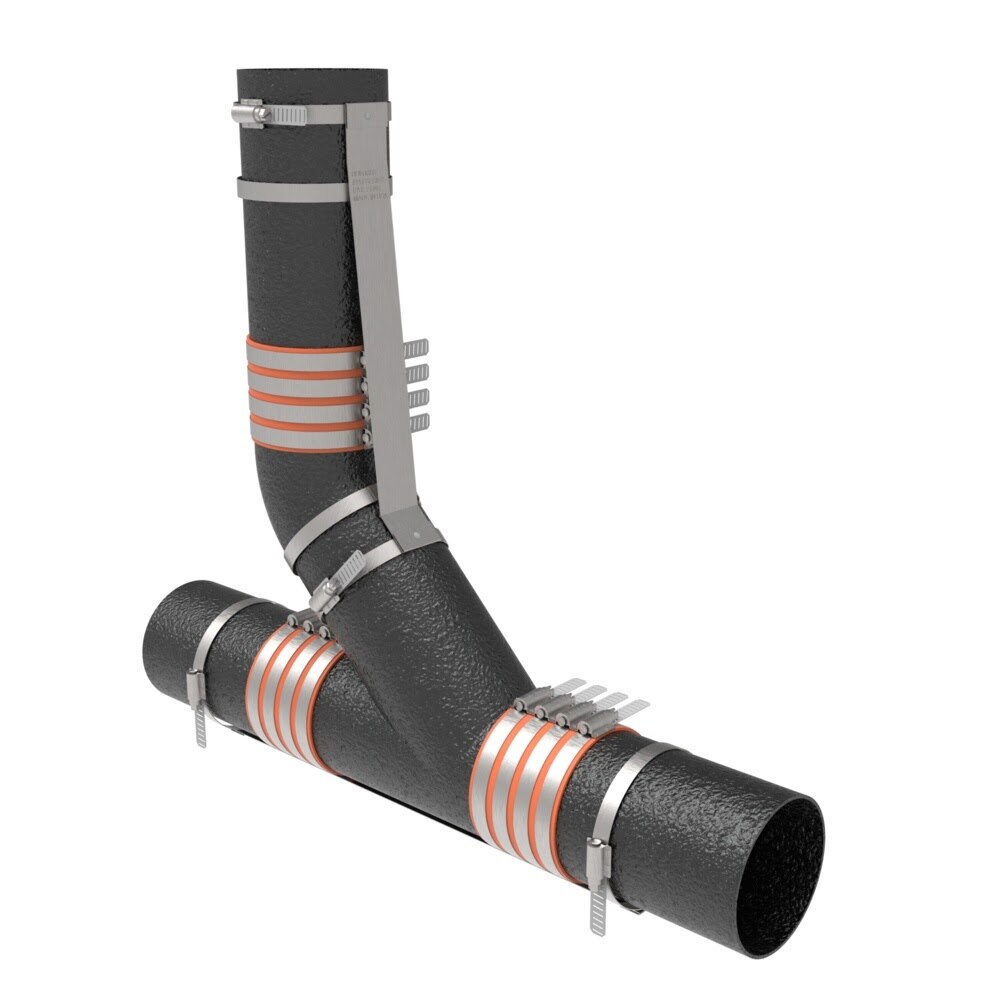

The HoldRite 117-5x4CM is a 5 in. x 4 in. no-hub combo midstream position restraint designed to reinforce no-hub cast iron installations. This kit uses galvanized steel straps with stainless steel band clamps and, when installed correctly, achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-5x4CM Includes
- (1) 5 in. x 4 in. No Hub Combo Midstream Position Restraint

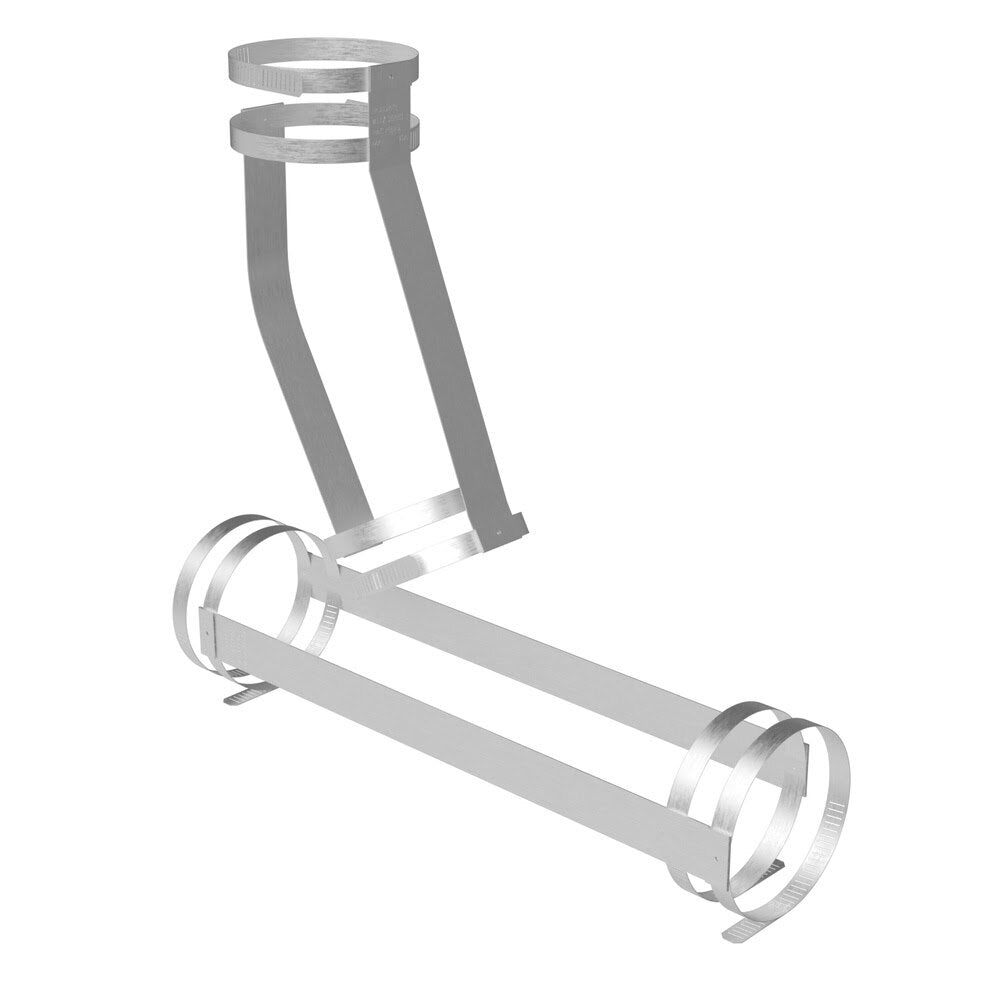

- (1) Set of Galvanized Steel Straps
- (1) Set of Stainless Steel Band Clamps
HoldRite 117-5x4CM Features
- Designed to reinforce no-hub cast iron installations
- Combo midstream position restraint for DWV applications
- Galvanized 24GA CRS strap construction
- Stainless steel body, band, and screw
- Minimum band torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Designed in accordance with CISPI Designation 310-11 and the 2006 CISPI Installation Handbook
- Thrust force resistant test data available on request
HoldRite 117-5x4CM Specifications
| Brand | HoldRite |
| Series | 117-CM Series |
| Product Type | No Hub Combo Midstream Position Restraint |
| Pipe Size | 5 in. x 4 in. |
| Application | No-hub cast iron installations |
| Band Material | Stainless steel body, band & screw |
| Strap Material | 24GA, CRS, galvanized |
| Minimum Torque | 60 in./lbs. on band |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Each Length (in) | 19.75 |
| Each Width (in) | 7.5 |
| Each Height (in) | 0.875 |
| Each Shipping Weight (lb) | 2.217 |
| Case Quantity | 6 |
