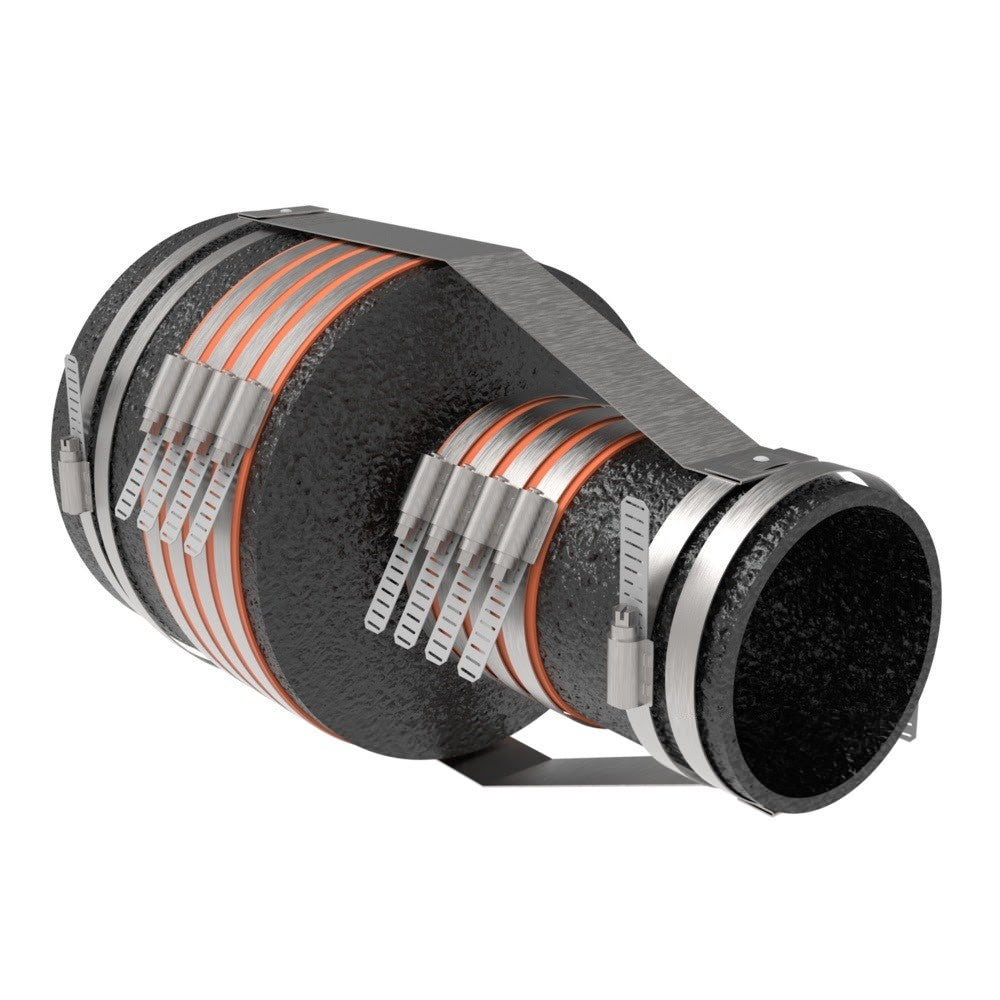

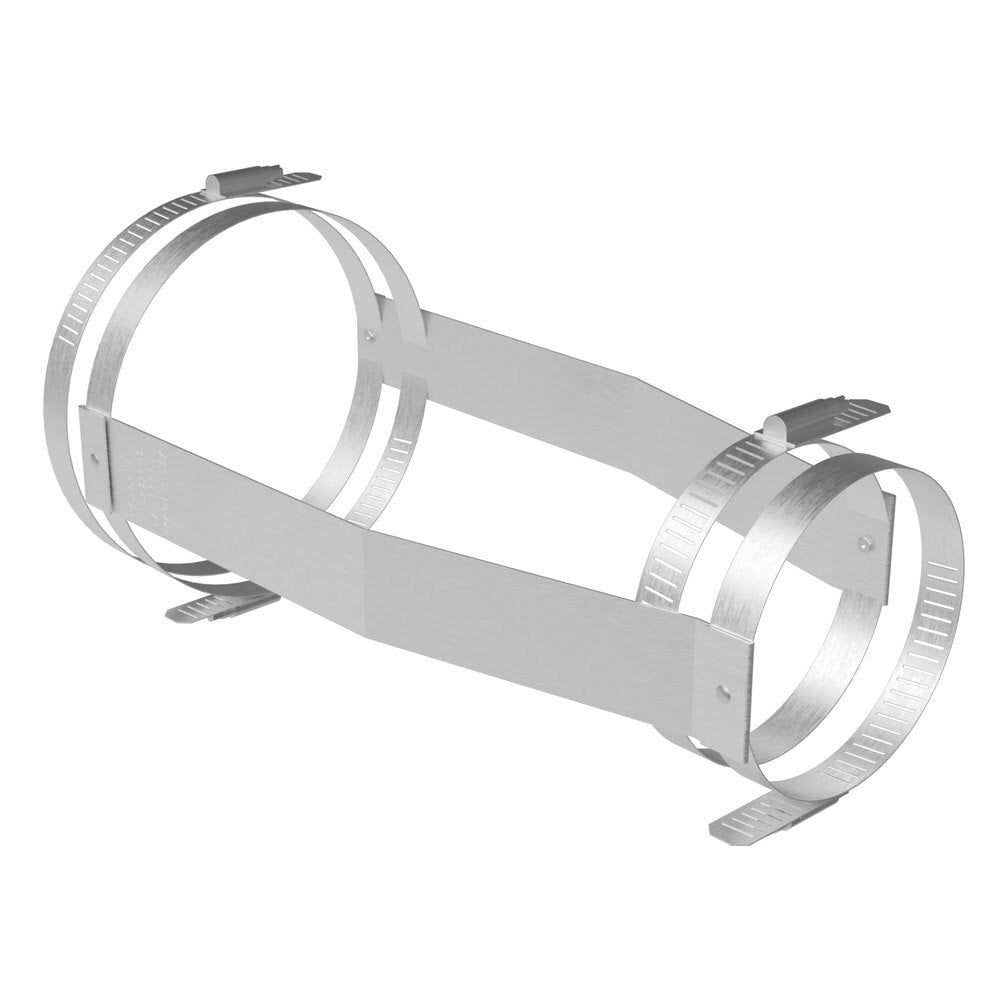

HoldRite 117-5x4R Description
The HoldRite 117-5x4R is a 5 in x 4 in no hub short reducer fitting restraint designed to reinforce no hub cast iron reducer installations in DWV systems. Built with a galvanized steel strap and stainless steel bands, it helps retain adjoining piping and provides a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly.
HoldRite 117-5x4R Includes
- (1) 5 in x 4 in No Hub Short Reducer Restraint
HoldRite 117-5x4R Features
- Designed to reinforce no hub cast iron fitting reducers in DWV installations
- Retains reducer fittings onto adjoining piping using stainless steel bands
- 24 gauge CRS galvanized steel strap for durable restraint performance
- Bands require a minimum torque of 60 in/lbs
- Achieves a safe thrust pressure rating equal to 50 ft head of water pressure when installed correctly
- Patent pending
- Thrust force restraint test data available upon request
HoldRite 117-5x4R Specifications
| Series | 117-R |
| Product Type | No hub short reducer fitting restraint |
| Size | 5 x 4 in |
| Strap Material | 24GA CRS galvanized steel |
| Bands Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water pressure |
| Product Length | 12 in |
| Product Width | 7 in |
| Product Height | 1.072 in |
| Shipping Weight | 0.9 lb |
Toolup Part # :
883303
