HoldRite 117-5x4W Description

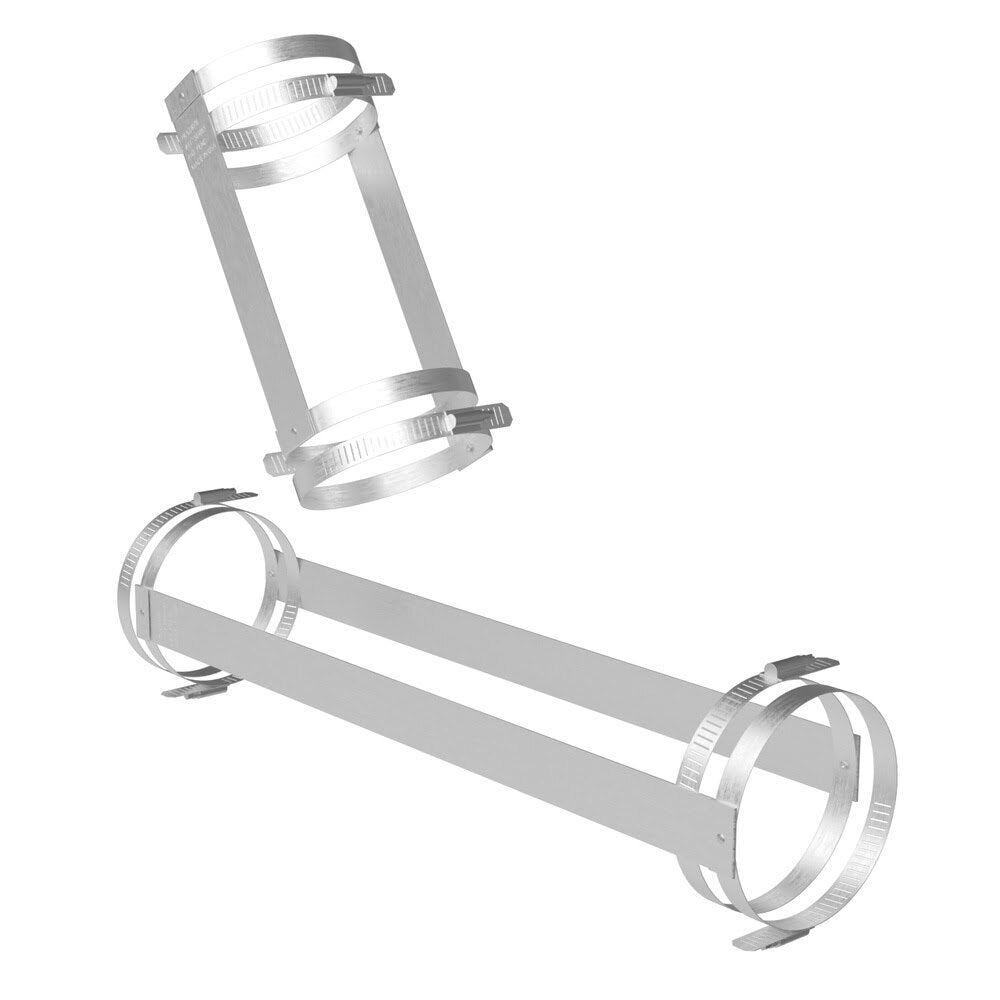

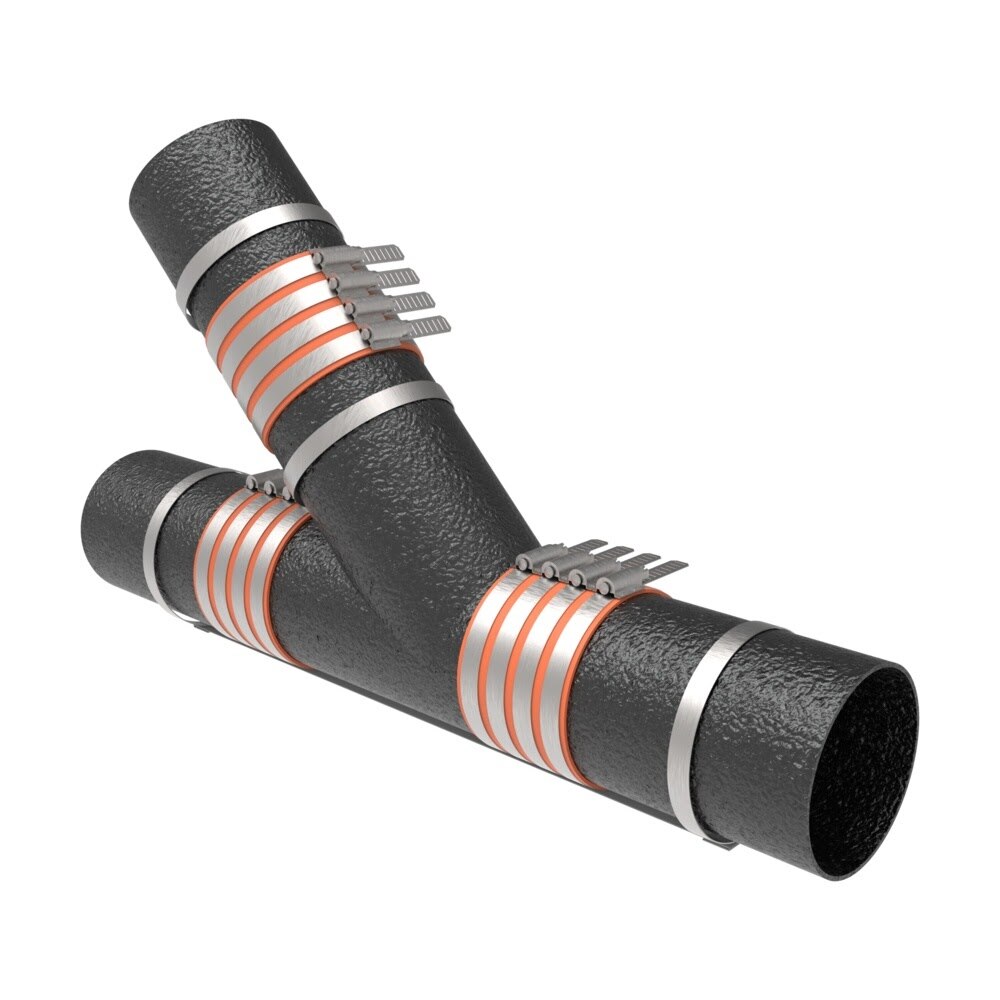

The HoldRite 117-5x4W no-hub wye or sanitary tee restraint is designed to reinforce 5 in. x 4 in. cast iron no-hub installations and retain the fitting onto adjoining piping in mid-span runs. It features a 24-gauge galvanized steel strap with stainless steel bands and screws, and when installed correctly it provides a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-5x4W Includes
- (1) 5 in. x 4 in. No-Hub Wye or Sanitary Tee Restraint
HoldRite 117-5x4W Features
- Designed to reinforce no-hub cast iron wye and sanitary tee installations
- Retains the fitting onto adjoining piping in mid-span runs
- 24-gauge CRS galvanized steel strap with stainless steel body, bands, and screws
- All stainless steel bands tighten to a minimum of 60 in/lbs
- Provides a safe thrust pressure rating equal to 50 ft. head of water pressure when properly installed
- Supports installations in accordance with CISPI 301-18, 310-18, and the 2006 CISPI Installation Handbook
- Patent pending design
HoldRite 117-5x4W Specifications
| Series | 117-W Series |
| Size | 5 x 4 |
| Application | No-hub wye or sanitary tee restraint |
| Strap Material | 24 ga. CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Pressure Rating | 50 ft. head of water pressure |
| Each Length | 20.875 in. |
| Each Width | 6.625 in. |
| Each Height | 6.5 in. |
| Shipping Weight | 2.1 lb. |
| Case Quantity | 6 |
