HoldRite 117-6BP Description

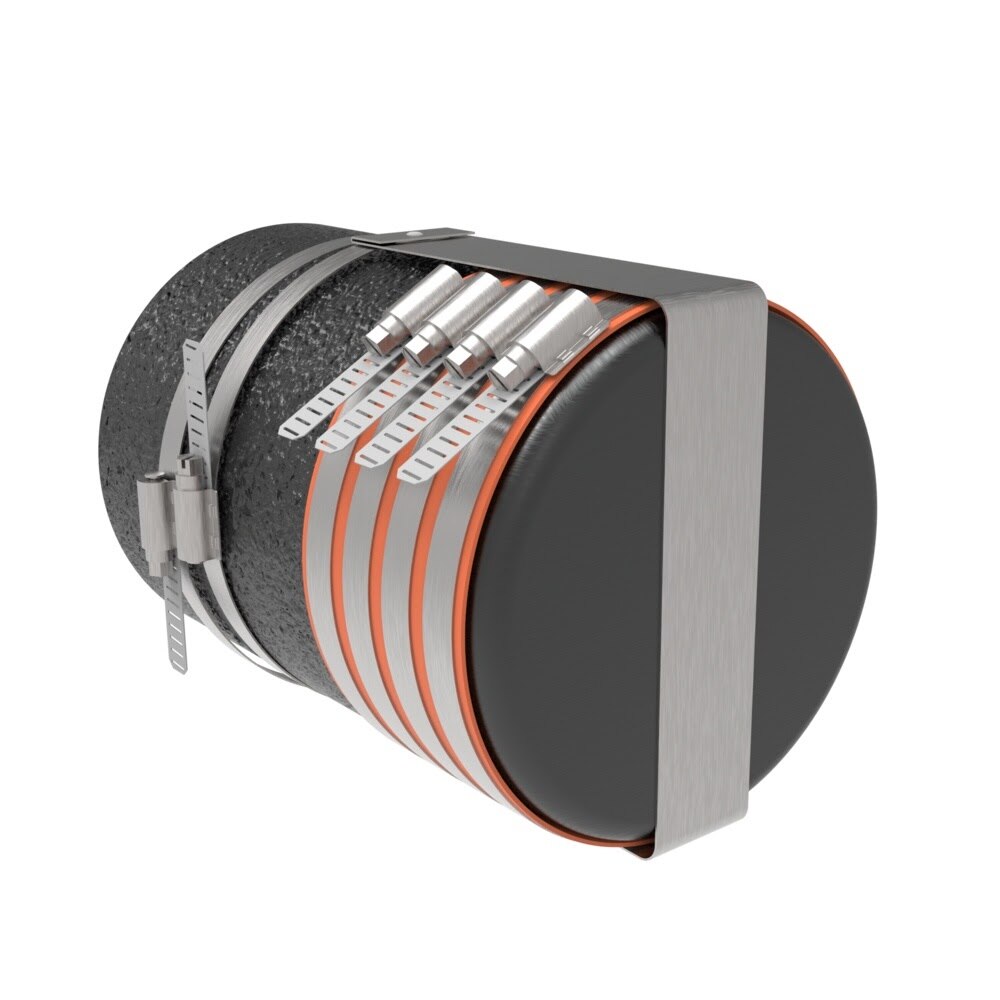

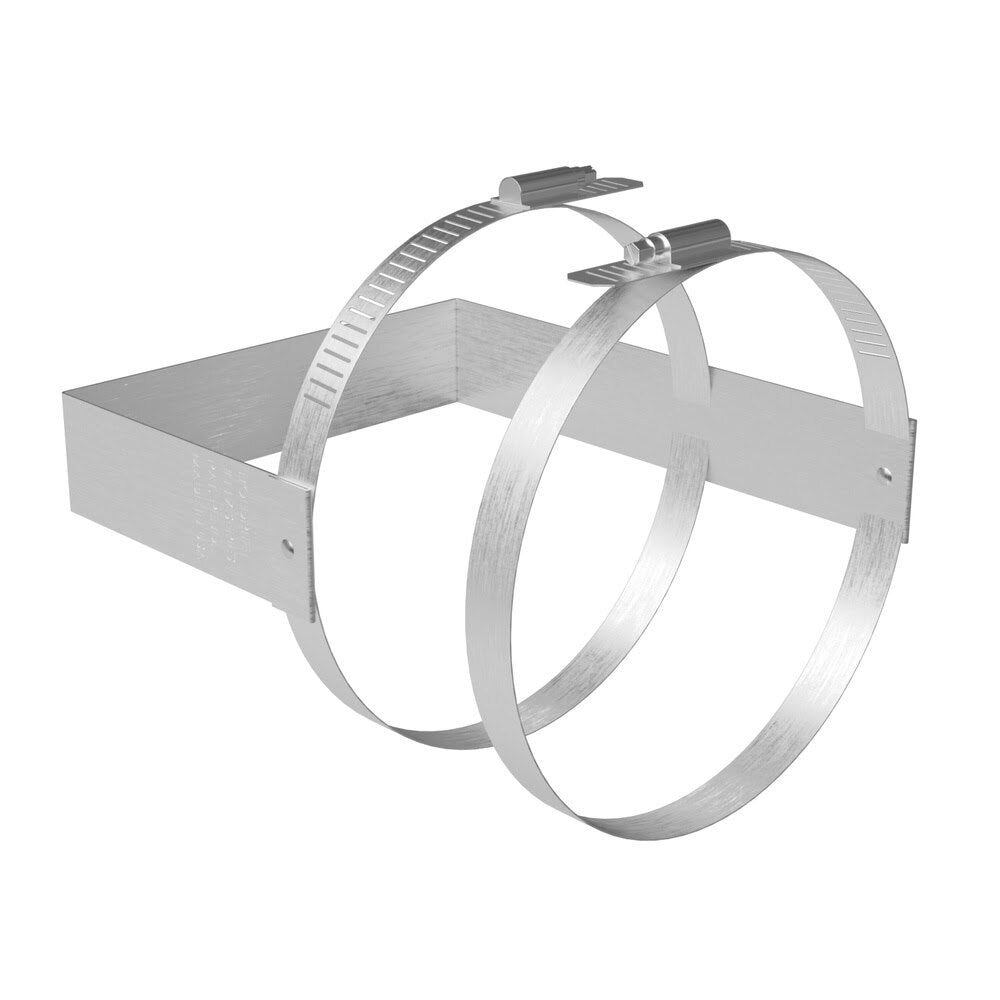

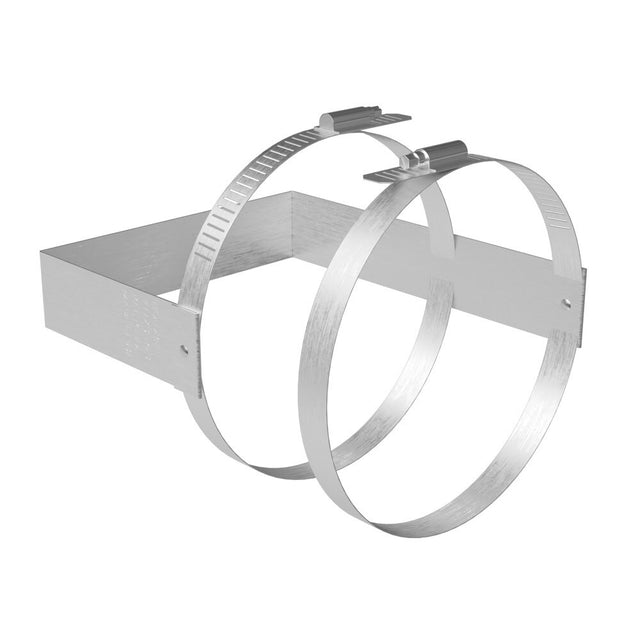

The HoldRite 117-6BP is a 6 in no-hub blind plug restraint designed to reinforce blind plug and cap installations in no-hub cast iron DWV systems. Built with a 24-gauge galvanized steel strap and stainless steel bands, it helps retain the plug on adjoining piping and provides a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly.
HoldRite 117-6BP Includes
- (1) 6 in No-Hub Blind Plug Restraint
- (2) Stainless Steel Bands
HoldRite 117-6BP Features
- Designed for 6 in no-hub blind plug and cap installations
- Reinforces no-hub cast iron DWV piping connections
- 24-gauge galvanized cold-rolled steel strap construction
- Stainless steel body, band, and screw components
- Bands require 60 in/lbs minimum torque
- Provides a safe thrust pressure rating equal to 50 ft. head of water when properly installed
- Intended for use in accordance with CISPI 301-18 and 310-18 installation requirements
- Patent pending
HoldRite 117-6BP Specifications
| Brand | HoldRite |
| Series | 117-BP |
| Product Type | No-Hub Blind Plug Restraint |
| Size | 6 in |
| Application | Blind plug and cap restraint for no-hub cast iron DWV installations |
| Strap Material | 24GA CRS galvanized steel |
| Band Material | Stainless steel body, band and screw |
| Minimum Band Torque | 60 in/lbs |
| Safe Thrust Pressure Rating | 50 ft head of water |
| Compliance | CISPI 301-18, CISPI 310-18, 2006 CISPI Installation Handbook |
| Product Length (in) | 19 |
| Product Width (in) | 9.75 |
| Product Height (in) | 0.741 |
| Product Weight (lbs) | 0.618 |
| Case Quantity | 12 |
| UPC | 671119803068 |
