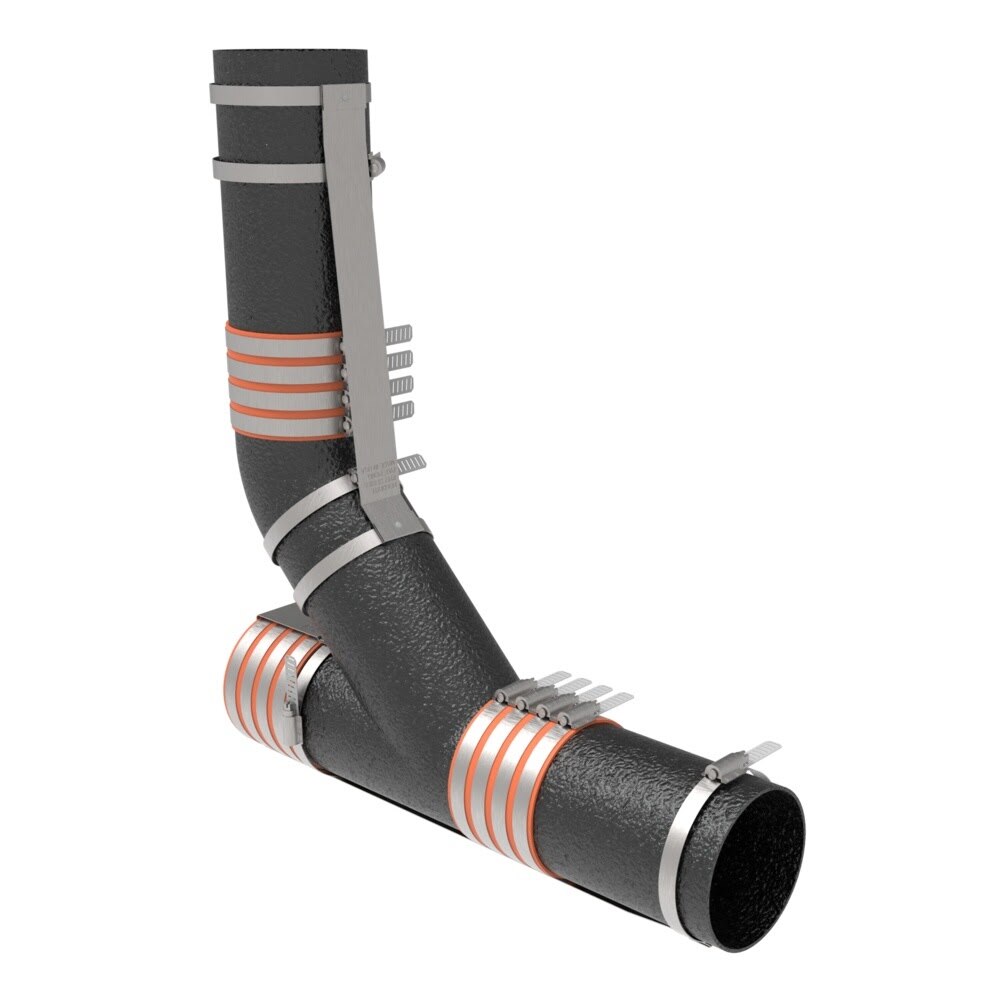

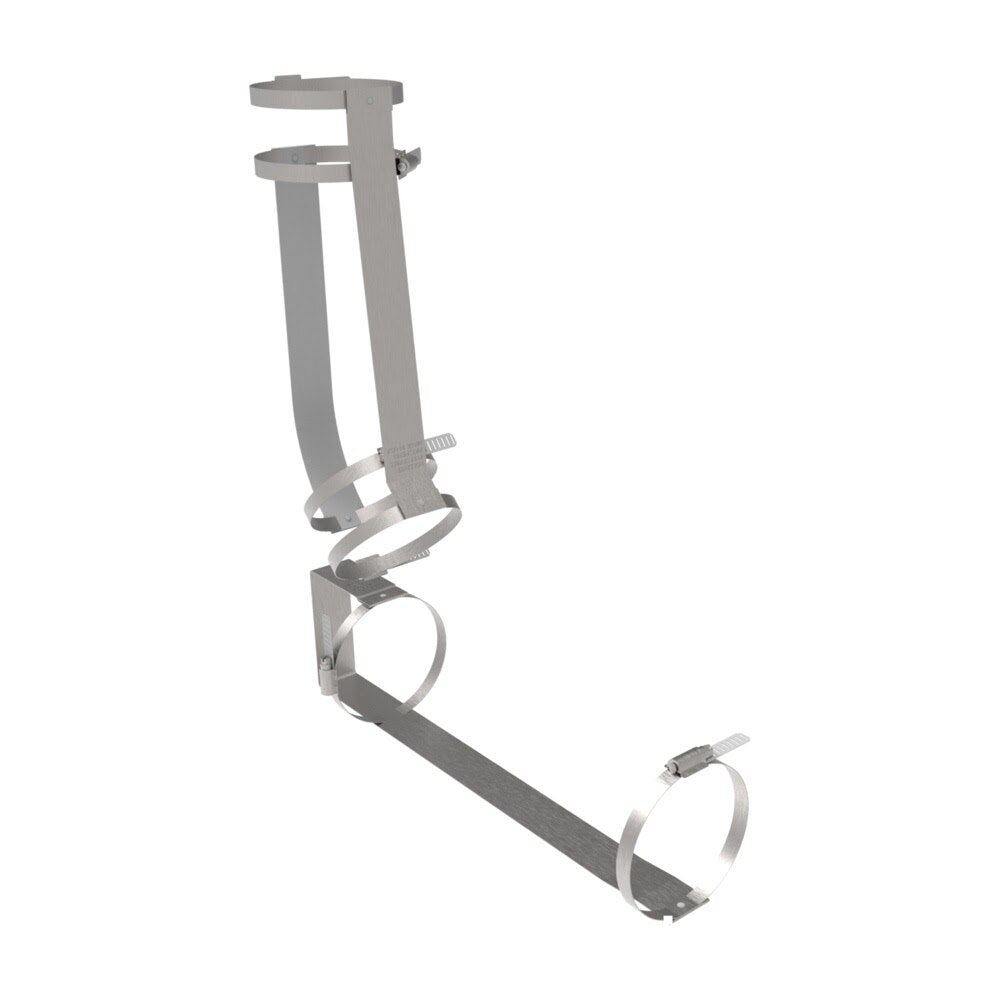

HoldRite 117-6CE Description
The HoldRite 117-6CE is a 6 in. CE Series no-hub end-of-line restraint kit designed to secure combo or wye fittings to adjoining piping. It includes galvanized steel straps with stainless steel band clamps for installations using a blind plug or cleanout, and when properly installed it achieves a safe thrust pressure rating equal to 50 ft. head of water pressure.
HoldRite 117-6CE Includes
- (1) 6 in. CE Series no-hub combo or wye end-of-line restraint kit
- (1) Set of galvanized steel straps
- (1) Set of stainless steel band clamps
HoldRite 117-6CE Features
- Designed for 6 in. no-hub combo or wye end-of-line applications
- Helps retain the combo or wye onto adjoining piping
- Suitable for installations with a blind plug or cleanout
- Includes galvanized steel straps for durable restraint support
- Includes stainless steel band clamps
- Bands require a minimum torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
HoldRite 117-6CE Specifications
| Manufacturer | HoldRite |
| Series | 117-CE Series |
| Part Number | 117-6CE |
| Product Type | No-hub combo or wye end-of-line restraint kit |
| Pipe Size | 6 in. |
| Application | End-of-line position restraint for combo or wye fittings |
| Strap Material | Galvanized steel |
| Band Clamp Material | Stainless steel |
| Minimum Band Torque | 60 in./lbs. |
| Safe Thrust Pressure Rating | 50 ft. head of water pressure |
| Each Length | 18.5 in. |
| Each Width | 15 in. |
| Each Height | 15 in. |
| Each Shipping Weight | 2.8 lb |
| Case Quantity | 6 |
