Description
Description

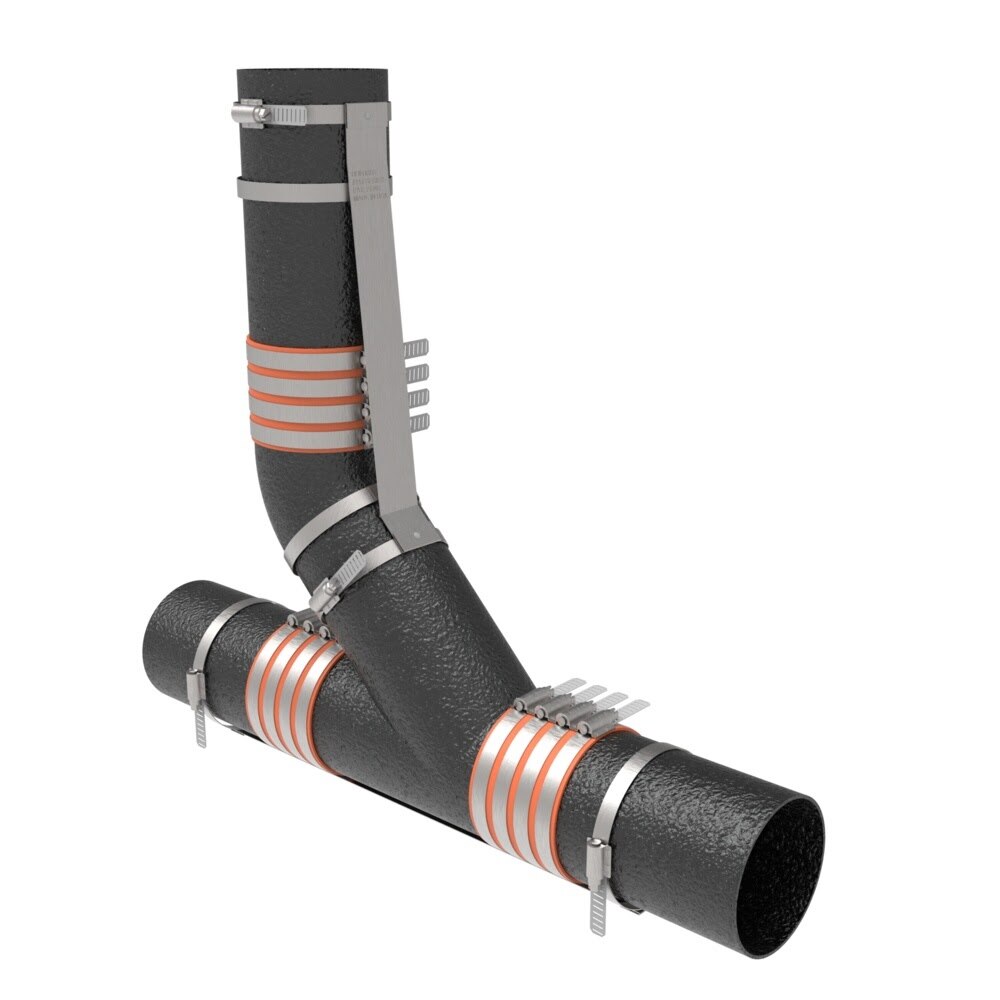

HoldRite 117-6CM Description
The HoldRite 117-6CM is a 6 in. no-hub combo mid-stream position restraint designed to reinforce no-hub cast iron installations in DWV systems. Part of the 117-CM series, it combines wye and eighth bend fitting restraint functions and includes galvanized steel straps with stainless steel band clamps for secure support.
HoldRite 117-6CM Includes

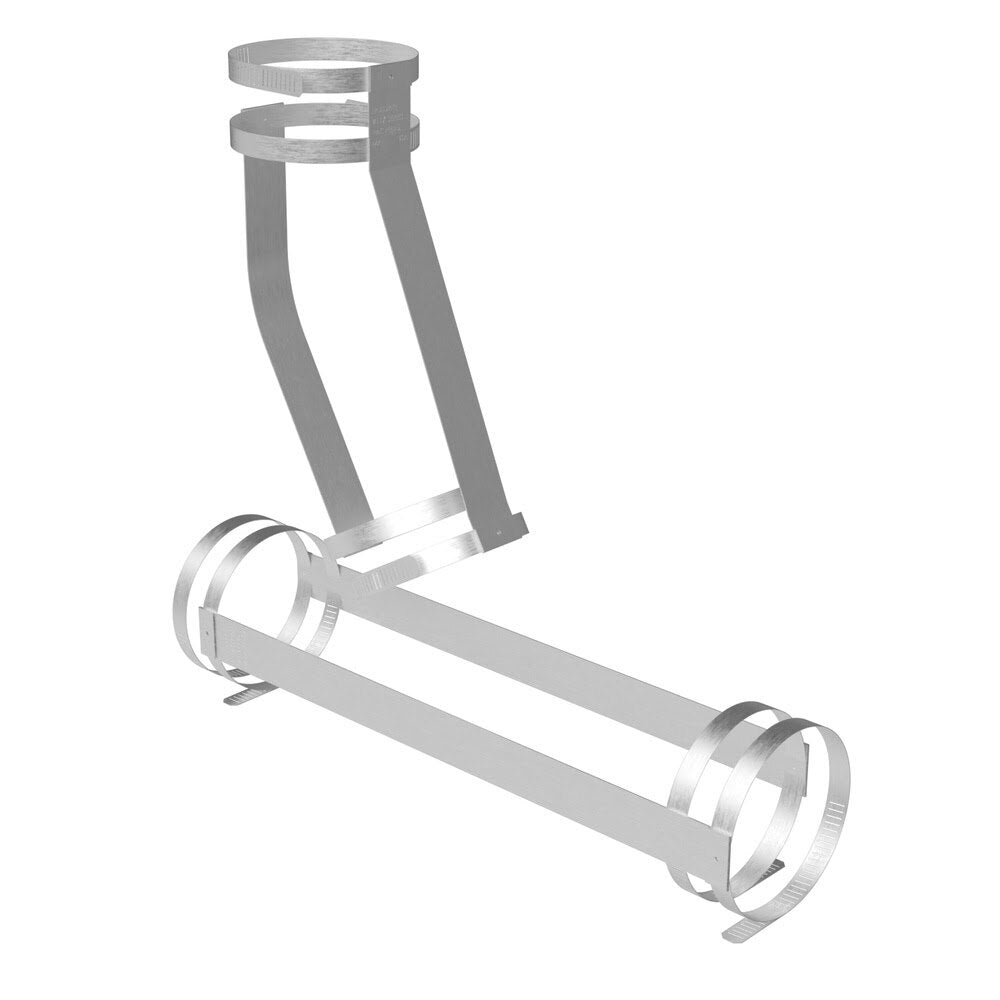

- (1) 6 in. No-Hub Combo Mid-Stream Position Restraint Kit
- (1) Galvanized steel strap set
- (1) Stainless steel band clamp set
HoldRite 117-6CM Features
- Designed to reinforce no-hub cast iron installations
- Mid-stream restraint combines wye and eighth bend fitting restraint functions
- Galvanized steel strap construction
- Stainless steel body, band, and screw
- Minimum band torque of 60 in./lbs.
- Achieves a safe thrust pressure rating equal to 50 ft. head of water pressure when installed correctly
- Built for 6 in. no-hub applications
- Thrust force resistant test data available on request
HoldRite 117-6CM Specifications
| Brand | HoldRite |
| Series | 117-CM |
| Nominal Size | 6 in. |
| Product Type | No-Hub Combo Mid-Stream Position Restraint |
| Application | No-hub cast iron installations |
| Strap Material | 24GA, CRS, galvanized |
| Band Material | Stainless steel body, band & screw |
| Minimum Torque | 60 in./lbs. on band |
| Safe Thrust Pressure Rating | Equal to 50 ft. head of water pressure |
| Each Length | 17 |
| Each Width | 12 |
| Each Height | 12 |
| Each Shipping Weight | 2.627 |
| Case Quantity | 6 |
Toolup Part # :
882435
